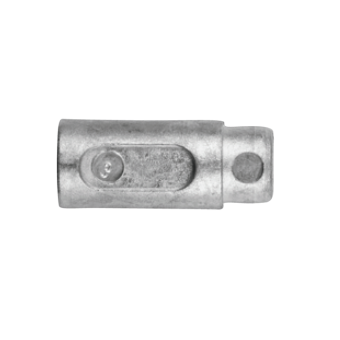

Tecnoseal Lombardini Pencil Anode Ø14 × 26 mm with Optional 1/2" BSPT Brass Plug

Name: Tecnoseal Lombardini Pencil Anode Ø14 × 26 mm with Optional 1/2" BSPT Brass Plug
SKU: Tecnoseal 02350

ID 1404422

$ 10.82

1-2 weeks delivery time

Type:

Anode Only
Complete with Brass Plug
Brass Plug Only

Item:

80 g
30 g
50 g

The Tecnoseal 02350 Series comprises a zinc pencil anode and matching brass plug components for Lombardini marine engines. Three configurations are available: 02350 zinc anode only, measuring 14 mm in diameter and 26 mm in length with an 8 mm end section and weighing 0.03 kg (30 g); 02350T complete zinc anode with brass plug, featuring a 1/2" tapered BSPT connection and weighing 0.08 kg (80 g); and 02350TP brass plug only, with the same 1/2" BSPT thread and weighing 0.05 kg (50 g). The brass plug has a 12 mm dimension (b) and 22 mm hex-head dimension (c). Additional Tecnoseal catalogue references for the anode are 02010, 02020, 02071 and 02090, while the brass plug 02350TP is also listed as 02071TP.

Description
Ask a Question

Tecnoseal Lombardini Pencil Anode Ø14 × 26 mm with Optional 1/2" BSPT Brass Plug – 02350 Series

The Tecnoseal 02350 Series includes a zinc pencil anode and matching brass plug components designed for Lombardini marine engines. The zinc anode provides sacrificial corrosion protection for compatible engine components, while the brass plug serves as its mounting component. The series includes three purchasing options: anode only (02350), complete anode with brass plug (02350T), and brass plug only (02350TP).

The Tecnoseal 02350 zinc pencil anode measures 14 mm in diameter and 26 mm in length, with an additional end-section dimension (l1) of 8 mm. The complete 02350T assembly combines the same zinc anode with a brass plug featuring a 1/2" GAS conico (BSPT) tapered thread. The 02350TP is the corresponding brass plug supplied separately, with a 12 mm dimension (b) and 22 mm hex-head dimension (c).

Technical Specifications

Manufacturer	Tecnoseal
Product Series	02350
Product Type	Pencil Anode and Brass Plug Components
Application	Lombardini Marine Engines
Anode Material	Zinc
Plug Material	Brass
Plug Thread	1/2" GAS Conico (BSPT)
Available Configurations	Anode Only, Complete with Brass Plug, Brass Plug Only

Available Versions

Tecnoseal Part Number	Configuration	Material	Weight
02350	Anode Only	Zinc	0.03 kg (0.07 lbs)
02350T	Complete with Brass Plug	Zinc / Brass	0.08 kg (0.18 lbs)
02350TP	Brass Plug Only	Brass	0.05 kg (0.11 lbs)

Dimensions and Connections

Specification	02350	02350T	02350TP
Anode Diameter (Ø)	14 mm	14 mm	–
Anode Length (l)	26 mm	26 mm	–
End Section (l1)	8 mm	8 mm	–
Dimension (b)	12 mm	12 mm	12 mm
Brass Plug Thread (a)	–	1/2" BSPT	1/2" BSPT
Plug Head Dimension (c)	–	22 mm (0.87")	22 mm (0.87")

Product Configurations

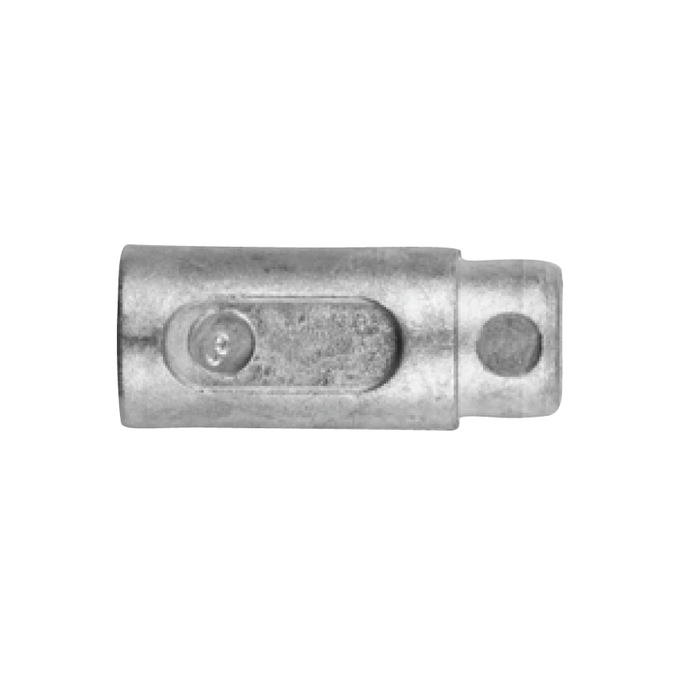

Tecnoseal 02350 – Zinc Pencil Anode Only

Material: Zinc
Diameter: 14 mm (0.55")
Length: 26 mm (1.02")
End Section (l1): 8 mm (0.31")
Dimension (b): 12 mm (0.47")
Weight: 30 g (0.07 lbs)
Supply: Anode only, without brass plug

Tecnoseal 02350T – Complete Zinc Pencil Anode with Brass Plug

Components: Zinc pencil anode and brass plug
Anode Diameter: 14 mm
Anode Length: 26 mm
End Section (l1): 8 mm
Plug Thread: 1/2" GAS Conico (BSPT)
Plug Dimension (b): 12 mm
Plug Head Dimension (c): 22 mm
Weight: 80 g (0.18 lbs)
Supply: Complete assembly

Tecnoseal 02350TP – Brass Plug Only

Material: Brass
Thread: 1/2" GAS Conico (BSPT)
Dimension (b): 12 mm (0.47")
Head Dimension (c): 22 mm (0.87")
Weight: 50 g (0.11 lbs)
Supply: Brass plug only, without zinc anode

Catalogue Cross-References

Tecnoseal 02350: Also listed as 02010, 02020, 02071 and 02090
Tecnoseal 02350T: Complete assembly with brass plug
Tecnoseal 02350TP: Also listed as 02071TP

Key Features

Pencil anode and brass plug component series for Lombardini marine engines.
Zinc pencil anode diameter: 14 mm.
Zinc pencil anode length: 26 mm.
Brass mounting plug with 1/2" tapered BSPT thread.
Three configurations available: anode only, complete assembly or brass plug only.
Tecnoseal 02350: zinc anode only, weight 30 g.
Tecnoseal 02350T: complete assembly, weight 80 g.
Tecnoseal 02350TP: brass plug only, weight 50 g.
Separate replacement of the zinc anode or brass plug is possible.
