The Tecnoseal Mercury Standard Trim Tab Anode is designed for Mercury outboard motors rated at 35 HP and above, corresponding to original part number 31640. Available in zinc (00800), aluminium (00800AL) and magnesium (00800MG), it provides sacrificial corrosion protection for compatible outboard motor components. The anode has a 91 mm (3.58 in) diameter, 61 mm (2.40 in) height and 19 mm (0.75 in) secondary height, with a 7/16" UNC mounting thread. The zinc version weighs 0.46 kg (460 g), the aluminium version 0.17 kg (170 g) and the magnesium version 0.12 kg (120 g). All three versions share identical dimensions and mounting specifications. Additional Tecnoseal catalogue references include 01101-1, 01411 and 08405.
- Description
- Ask a Question
-

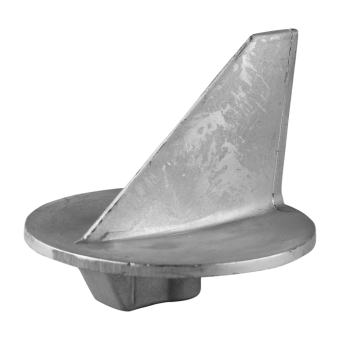

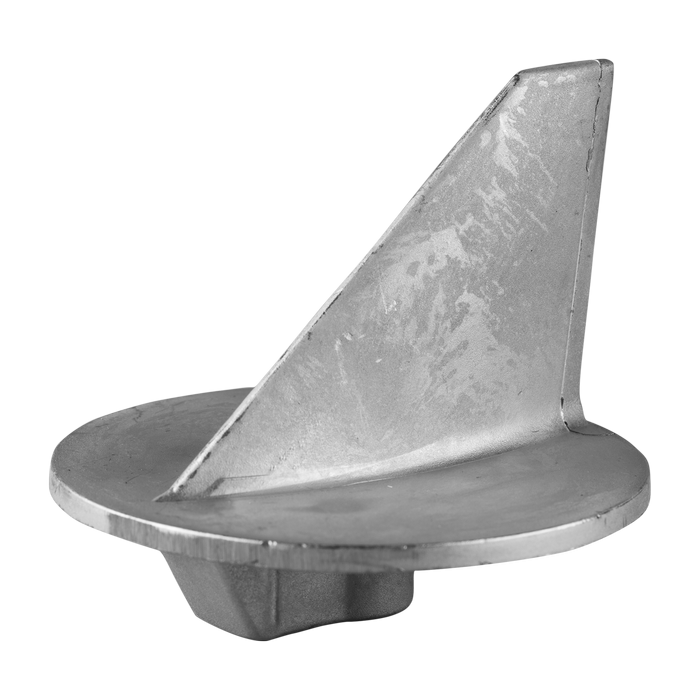

Tecnoseal 31640 Mercury Standard Trim Tab Anode for 35 HP+
The Tecnoseal Mercury Standard Trim Tab Anode is a sacrificial anode designed for Mercury outboard motors rated at 35 HP and above. It helps protect compatible submerged metal components against galvanic corrosion. The anode corresponds to Mercury OEM part number 31640 and is available in zinc, aluminium and magnesium versions.
The anode features a circular base with an integrated trim tab fin and a 7/16" UNC mounting thread. It measures 91 mm (3.58") in diameter, 61 mm (2.40") in height and 19 mm (0.75") in secondary height. All three material versions share identical dimensions and mounting specifications, with different weights according to the selected material.
Technical Specifications
Manufacturer Tecnoseal Product Type Standard Trim Tab Anode Application Mercury Outboard Motors Engine Compatibility 35 HP and Above Mercury OEM Part Number 31640 Available Materials Zinc, Aluminium, Magnesium Mounting Thread 7/16" UNC
Available Versions and Osculati Cross-References
Tecnoseal Part Number Material Osculati Reference Weight 00800 Zinc 43.420.00 0.46 kg (1.01 lbs) 00800AL Aluminium 43.420.10 0.17 kg (0.37 lbs) 00800MG Magnesium 43.420.11 0.12 kg (0.26 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Diameter (Ø) 91 mm (3.58") Height (h) 61 mm (2.40") Secondary Height (h1) 19 mm (0.75") Mounting Thread (m) 7/16" UNC
Product Configurations
Tecnoseal 00800 – Zinc Mercury Trim Tab Anode
- Material: Zinc
- Weight: 0.46 kg (1.01 lbs)
- Diameter: 91 mm
- Height: 61 mm
- Secondary Height: 19 mm
- Mounting Thread: 7/16" UNC
- Osculati Reference: 43.420.00
Tecnoseal 00800AL – Aluminium Mercury Trim Tab Anode
- Material: Aluminium
- Weight: 0.17 kg (0.37 lbs)
- Diameter: 91 mm
- Height: 61 mm
- Secondary Height: 19 mm
- Mounting Thread: 7/16" UNC
- Osculati Reference: 43.420.10
Tecnoseal 00800MG – Magnesium Mercury Trim Tab Anode
- Material: Magnesium
- Weight: 0.12 kg (0.26 lbs)
- Diameter: 91 mm
- Height: 61 mm
- Secondary Height: 19 mm
- Mounting Thread: 7/16" UNC
- Osculati Reference: 43.420.11
OEM and Cross-References
- Mercury OEM Part Number: 31640
- Additional Tecnoseal Catalogue References: 01101-1, 01411, 08405
- Tecnoseal 00800 (Zinc): Osculati 43.420.00
- Tecnoseal 00800AL (Aluminium): Osculati 43.420.10
- Tecnoseal 00800MG (Magnesium): Osculati 43.420.11
Key Features
- Standard trim tab anode for Mercury outboard motors rated at 35 HP and above.
- Mercury OEM reference: 31640.
- Available in zinc, aluminium and magnesium versions.
- Circular base with integrated trim tab fin.
- Diameter: 91 mm.
- Height: 61 mm.
- Secondary height: 19 mm.
- Mounting thread: 7/16" UNC.
- Identical dimensions across all three material versions.
- Zinc version: Tecnoseal 00800, Osculati 43.420.00, weight 460 g.
- Aluminium version: Tecnoseal 00800AL, Osculati 43.420.10, weight 170 g.
- Magnesium version: Tecnoseal 00800MG, Osculati 43.420.11, weight 120 g.
-
