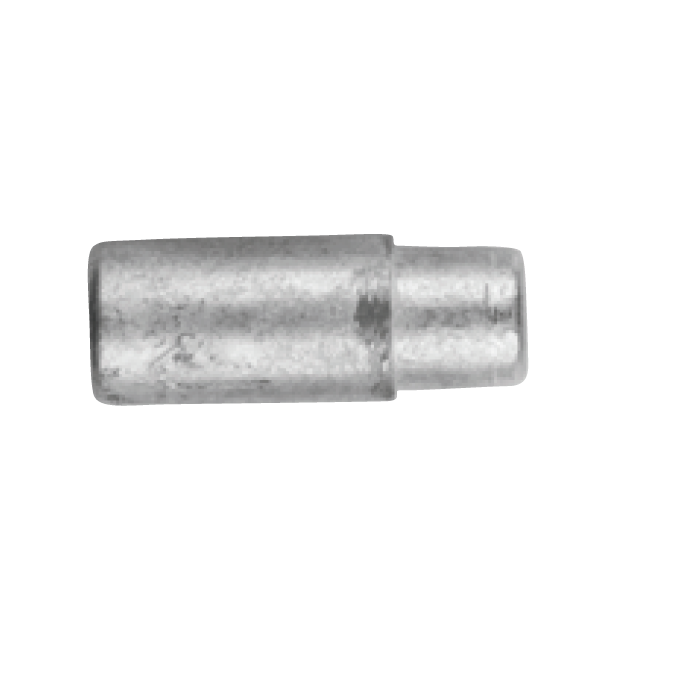

Tecnoseal Lombardini Pencil Anode Ø10 × 18 mm with Optional 1/4" BSPT Brass Plug

Name: Tecnoseal Lombardini Pencil Anode Ø10 × 18 mm with Optional 1/4" BSPT Brass Plug
SKU: Tecnoseal 02351

ID 1404426

$ 27.58

1-2 weeks delivery time

Type:

Brass Plug Only
Zinc Anode Only
Zinc Complete with Brass Plug

Item:

30 g
20 g

The Tecnoseal 02351 Series includes zinc and magnesium pencil anodes and matching brass plug components for Lombardini marine engines. Five configurations are available: zinc anode only (02351, 20 g), magnesium anode only (02351MG, 5 g), brass plug only (02351TP, 20 g), complete zinc anode with brass plug (02351T, 30 g) and complete magnesium anode with brass plug (02351TMG, 25 g). Both anode materials share dimensions of 10 mm diameter, 18 mm length and 8 mm end-section length, with an 8.5 mm dimension (b). The brass plug features a 1/4" GAS conico (BSPT) tapered thread, an 8.5 mm dimension (b) and a 14 mm head dimension (c). Additional Tecnoseal catalogue references include 02053 and 02070.

Description
Ask a Question

Tecnoseal Lombardini Pencil Anode Ø10 × 18 mm with Optional 1/4" BSPT Brass Plug – 02351 Series

The Tecnoseal 02351 Series consists of sacrificial pencil anodes and matching brass plug components for Lombardini marine engines. The zinc and magnesium anodes are designed to provide corrosion protection for compatible engine components. The series offers five configurations, allowing replacement of the anode alone, the brass mounting plug alone, or the complete assembly.

The pencil anodes measure 10 mm in diameter and 18 mm in length, with an additional end-section length (l1) of 8 mm. The corresponding brass plug features a 1/4" GAS conico (BSPT) tapered thread, dimension b of 8.5 mm and head dimension c of 14 mm. Both zinc and magnesium anodes share the same dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	02351
Product Type	Pencil Anode and Brass Plug Components
Application	Lombardini Marine Engines
Anode Materials	Zinc, Magnesium
Plug Material	Brass
Plug Thread	1/4" GAS Conico (BSPT)
Anode Diameter	10 mm
Anode Length	18 mm

Available Versions

Tecnoseal Part Number	Configuration	Material	Weight
02351	Anode Only	Zinc	0.02 kg (0.04 lbs)
02351MG	Anode Only	Magnesium	0.005 kg (0.01 lbs)
02351TP	Brass Plug Only	Brass	0.02 kg (0.04 lbs)
02351T	Complete with Brass Plug	Zinc / Brass	0.03 kg (0.07 lbs)
02351TMG	Complete with Brass Plug	Magnesium / Brass	0.025 kg (0.06 lbs)

Dimensions and Connections

Catalogue Dimension	Measurement
Anode Diameter (Ø)	10 mm (0.39")
Anode Length (l)	18 mm (0.71")
End Section Length (l1)	8 mm (0.31")
Dimension (b)	8.5 mm (0.33")
Brass Plug Thread (a)	1/4" GAS Conico (BSPT)
Brass Plug Head Dimension (c)	14 mm (0.55")
