ID
1404438
$ 41.39
1-2 weeks delivery time
-
+
The Tecnoseal 00801 is a zinc long trim tab anode designed for Mercury/Mercruiser 80–140 HP engines, corresponding to OEM part number 34127. It features a circular base with an extended trim tab fin, providing sacrificial corrosion protection for compatible marine drive components. The anode measures 90 mm (3.54") in diameter, 99 mm (3.90") in overall height and 17 mm (0.67") in base height, with a 7/16" UNC mounting thread. It weighs 0.60 kg (600 g / 1.32 lbs). Additional Tecnoseal catalogue reference: 01102.
- Description
- Ask a Question
-

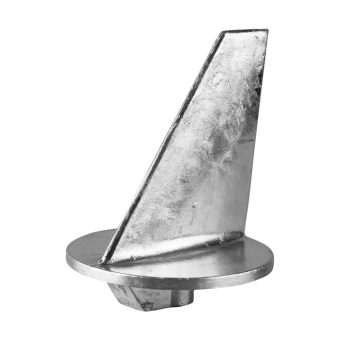

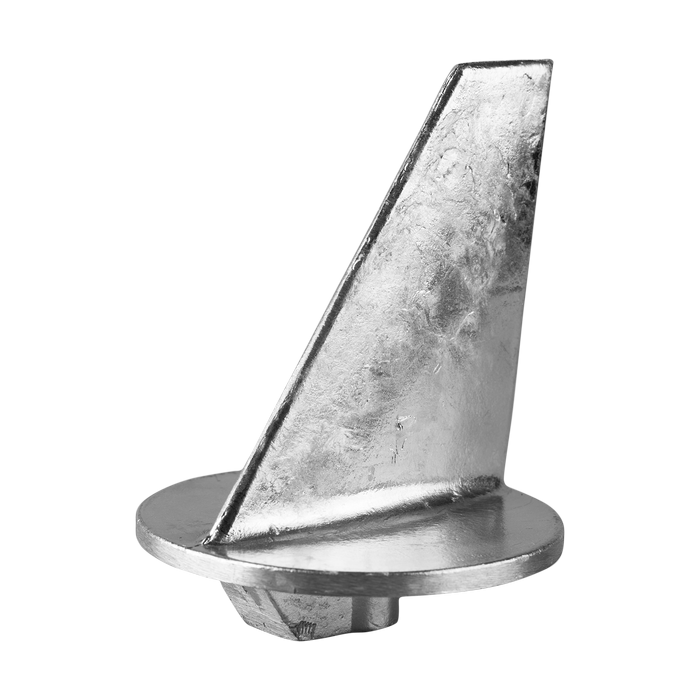

Tecnoseal 34127 Mercury/Mercruiser Long Trim Tab Anode for 80–140 HP
The Tecnoseal 00801 is a zinc long trim tab anode designed for Mercury/Mercruiser marine engines rated at 80–140 HP. It provides sacrificial corrosion protection for compatible submerged metal components. According to the Tecnoseal catalogue, the anode corresponds to OEM part number 34127 and is also listed under reference 01102.
The anode features a circular mounting base with an extended trim tab fin. It measures 90 mm (3.54") in diameter, 99 mm (3.90") in overall height and 17 mm (0.67") in secondary height. The mounting thread is 7/16" UNC. The zinc anode weighs 0.60 kg (1.32 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 00801 (Osculati 43.425.00) Product Type Long Trim Tab Anode Material Zinc Application Mercury/Mercruiser Engine Compatibility 80–140 HP OEM Part Number 34127 Weight 0.60 kg (1.32 lbs) Mounting Thread 7/16" UNC
Dimensions and Mounting
Catalogue Dimension Measurement Diameter (Ø) 90 mm (3.54") Overall Height (h) 99 mm (3.90") Base Height (h1) 17 mm (0.67") Mounting Thread (m) 7/16" UNC
OEM and Catalogue Cross-References
- Mercury/Mercruiser OEM: 34127
- Tecnoseal Part Number: 00801
- Additional Tecnoseal Reference: 01102
Key Features
- Zinc long trim tab anode for Mercury/Mercruiser 80–140 HP engines.
- Original part number: 34127.
- Extended trim tab fin with circular mounting base.
- Provides sacrificial corrosion protection for compatible marine drive components.
- Diameter: 90 mm.
- Overall height: 99 mm.
- Base height: 17 mm.
- Mounting thread: 7/16" UNC.
- Weight: 600 g (1.32 lbs).
-
