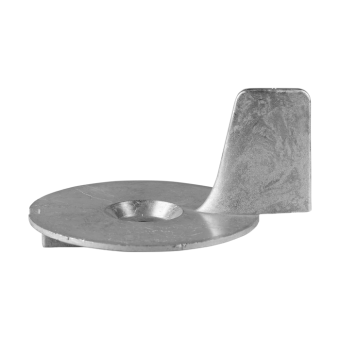

Tecnoseal 94286 T Mercury Skeg Trim Tab Anode for 25 HP

ID 1404439

$ 34.37

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

70 g
260 g

The Tecnoseal Mercury Skeg Trim Tab Anode is designed for Mercury 25 HP outboard motors, corresponding to OEM part number 94286 T. Available in zinc (00802) and magnesium (00802MG), it features a circular base with an integrated skeg fin and provides sacrificial corrosion protection for compatible outboard motor components. The anode measures 95 mm (3.74") in diameter, 52 mm (2.05") in height and 14 mm (0.55") in secondary height, with mounting dimensions Ø1 of 22 mm (0.87") and Ø2 of 9 mm (0.35"). The zinc version weighs 0.26 kg (260 g / 0.57 lbs), while the magnesium version weighs 0.07 kg (70 g / 0.15 lbs). Both versions share identical dimensions and mounting specifications.

Description
Ask a Question

Tecnoseal 94286 T Mercury Skeg Trim Tab Anode for 25 HP

The Tecnoseal Mercury Skeg Trim Tab Anode is a sacrificial anode designed for Mercury 25 HP outboard motors. It helps protect compatible submerged metallic motor components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding Mercury original part number is 94286 T.

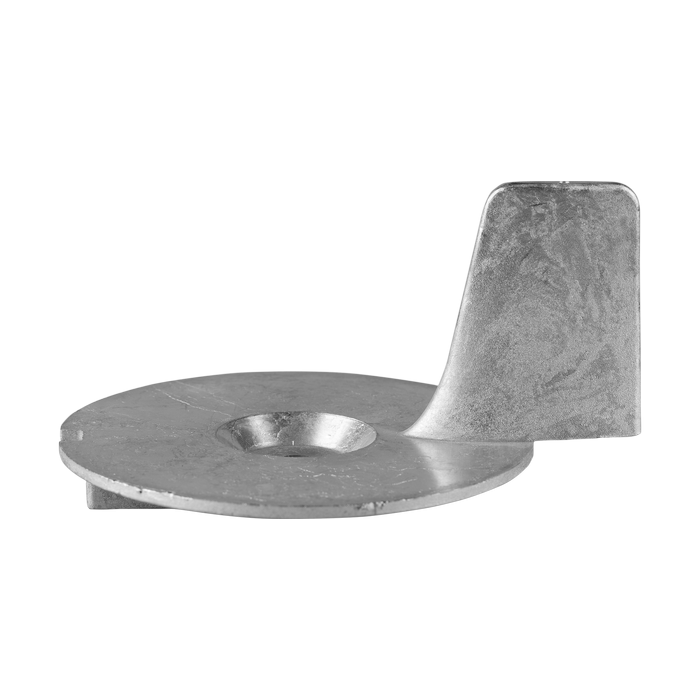

The anode features a circular base with an integrated skeg fin. It measures 95 mm (3.74") in diameter, 52 mm (2.05") in height and 14 mm (0.55") in secondary height. Additional mounting dimensions are Ø1 = 22 mm (0.87") and Ø2 = 9 mm (0.35"). Two material versions are available: zinc (00802) and magnesium (00802MG). Both share identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Skeg Trim Tab Anode
Application	Mercury Outboard Motors
Engine Compatibility	25 HP
Mercury OEM Part Number	94286 T
Available Materials	Zinc, Magnesium

Available Versions

Tecnoseal Part Number	Material	Weight
00802 (Osculati 43.426.00)	Zinc	0.26 kg (0.57 lbs)
00802MG	Magnesium	0.07 kg (0.15 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Diameter (Ø)	95 mm (3.74")
Height (h)	52 mm (2.05")
Secondary Height (h1)	14 mm (0.55")
Diameter (Ø1)	22 mm (0.87")
Diameter (Ø2)	9 mm (0.35")

Product Configurations

Tecnoseal 00802 – Zinc Mercury Skeg Trim Tab Anode

Material: Zinc
Weight: 0.26 kg (0.57 lbs)
Diameter (Ø): 95 mm
Height (h): 52 mm
Secondary Height (h1): 14 mm
Diameter (Ø1): 22 mm
Diameter (Ø2): 9 mm

Tecnoseal 00802MG – Magnesium Mercury Skeg Trim Tab Anode

Material: Magnesium
Weight: 0.07 kg (0.15 lbs)
Diameter (Ø): 95 mm
Height (h): 52 mm
Secondary Height (h1): 14 mm
Diameter (Ø1): 22 mm
Diameter (Ø2): 9 mm

OEM and Product References

Mercury OEM Part Number: 94286 T
Tecnoseal 00802: Zinc version
Tecnoseal 00802MG: Magnesium version

Key Features

Skeg trim tab anode for Mercury 25 HP outboard motors.
Mercury original part number: 94286 T.
Available in zinc and magnesium versions.
Circular mounting base with integrated skeg fin.
Provides sacrificial corrosion protection for compatible outboard motor components.
Diameter: 95 mm.
Height: 52 mm.
Secondary height: 14 mm.
Mounting dimensions: Ø1 = 22 mm, Ø2 = 9 mm.
Identical dimensions for both material versions.
Zinc version: Tecnoseal 00802, weight 260 g.
Magnesium version: Tecnoseal 00802MG, weight 70 g.
