ID
1404447
$ 51.37
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
Item:
- 250 g
- 1000 g
The Tecnoseal Mercruiser Alpha One Gimbal Anode is designed for Alpha One and Alpha One Gen II sterndrive systems, corresponding to OEM part number 43994. Available in zinc (00806) and magnesium (00806MG), it provides sacrificial corrosion protection for compatible gimbal and sterndrive components. The anode features a ribbed rectangular body with mounting holes and measures 103 mm (4.06") in length, 78 mm (3.07") in width and 38 mm (1.50") in height, with a mounting hole diameter of 6.50 mm (0.26"). The zinc version weighs 1.00 kg (2.20 lbs), while the magnesium version weighs 0.25 kg (0.55 lbs). Both versions share identical dimensions and mounting specifications.
- Description
- Ask a Question
-

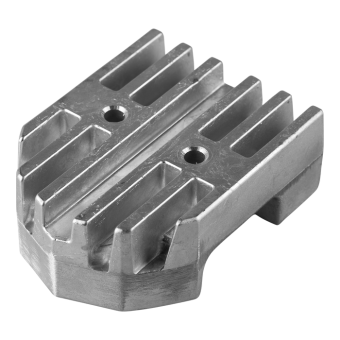

Tecnoseal 43994 Mercruiser Alpha One Gimbal Anode for Gen I & Gen II
The Tecnoseal Mercruiser Alpha One Gimbal Anode is a sacrificial anode designed for Mercruiser Alpha One and Alpha One Gen II outdrives. It helps protect compatible gimbal and sterndrive metal components against galvanic corrosion. According to the Tecnoseal catalogue, the anode corresponds to original part number 43994.

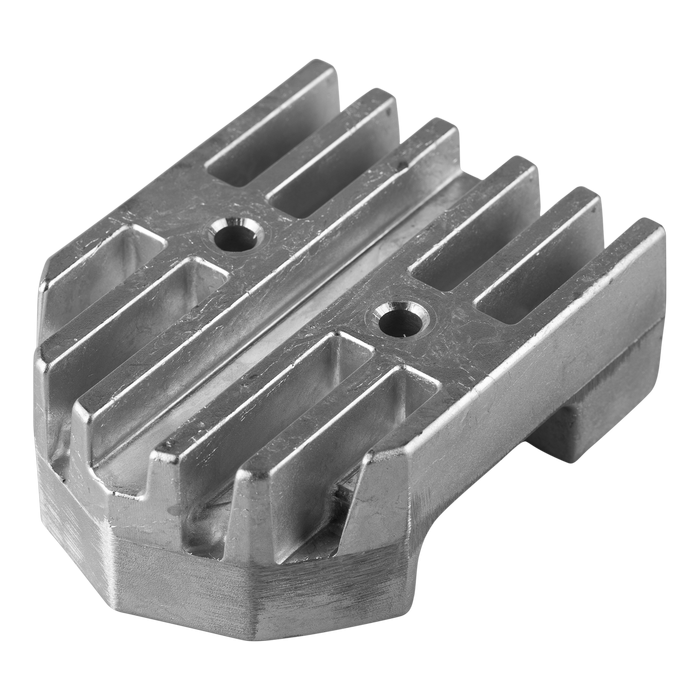

The anode features a rectangular body with raised ribs and mounting holes. It measures 103 mm (4.06") in length, 78 mm (3.07") in width and 38 mm (1.50") in height, with a 6.50 mm (0.26") mounting hole diameter. Two material versions are available: zinc (00806) and magnesium (00806MG). Both share identical catalogue dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Type Gimbal Anode Application Mercruiser Alpha One / Alpha One Gen II OEM Part Number 43994 Available Materials Zinc, Magnesium Design Ribbed Gimbal Anode with Mounting Holes
Available Versions
Tecnoseal Part Number Material Weight 00806 Zinc 1.00 kg (2.20 lbs) 00806MG Magnesium 0.25 kg (0.55 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Length (l) 103 mm (4.06") Width (a) 78 mm (3.07") Height (h) 38 mm (1.50") Mounting Hole Diameter (Ø) 6.50 mm (0.26")
Product Configurations
Tecnoseal 00806 – Zinc Mercruiser Alpha One Gimbal Anode
- Material: Zinc
- Weight: 1.00 kg (2.20 lbs)
- Length: 103 mm
- Width: 78 mm
- Height: 38 mm
- Mounting Hole Diameter: 6.50 mm
Tecnoseal 00806MG – Magnesium Mercruiser Alpha One Gimbal Anode
- Material: Magnesium
- Weight: 0.25 kg (0.55 lbs)
- Length: 103 mm
- Width: 78 mm
- Height: 38 mm
- Mounting Hole Diameter: 6.50 mm
OEM and Product References
- Mercruiser OEM Part Number: 43994
- Tecnoseal 00806: Zinc version
- Tecnoseal 00806MG: Magnesium version
Key Features
- Gimbal anode for Mercruiser Alpha One and Alpha One Gen II outdrives.
- Corresponds to original part number 43994.
- Available in zinc and magnesium versions.
- Ribbed body with mounting holes.
- Length: 103 mm.
- Width: 78 mm.
- Height: 38 mm.
- Mounting hole diameter: 6.50 mm.
- Identical dimensions for both material versions.
- Zinc version: Tecnoseal 00806, weight 1,000 g.
- Magnesium version: Tecnoseal 00806MG, weight 250 g.
-
