ID
1404446
$ 60.84
1-2 weeks delivery time
-
+

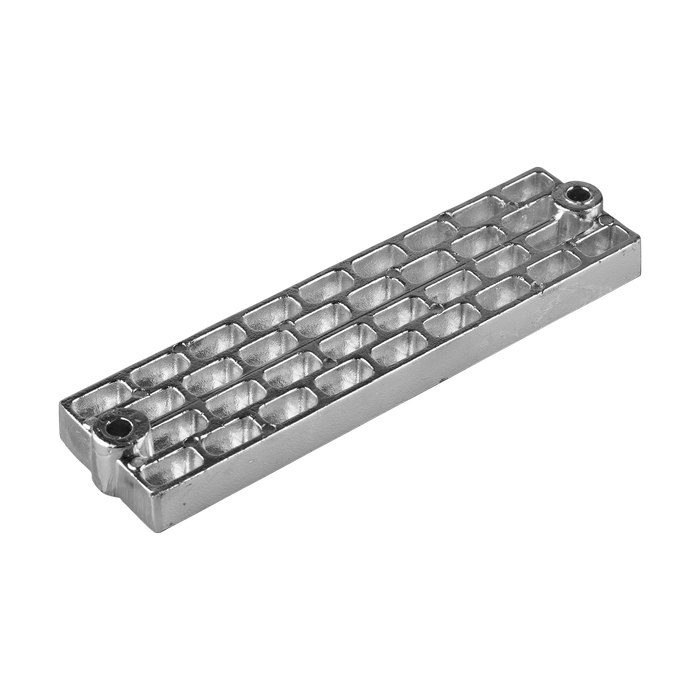

The Tecnoseal 00805 is a zinc waffle bar anode designed for Mercury 25/50/60/75 HP outboard motors, Mercruiser 90/100/115/190 models and Superamerica 80. Corresponding to OEM part numbers 43396 and 71320A3, this sacrificial anode helps protect compatible marine engine and drive components from galvanic corrosion. It features a rectangular bar with a waffle-pattern surface and two mounting points. The anode measures 194 mm in length (l), 52 mm in width (a) and 20 mm in height (h), with additional dimensions b = 158 mm and i = 177 mm. The mounting dimensions are Ø = 16 mm and Ø1 = 7 mm. Manufactured from zinc, it weighs 0.67 kg (670 g / 1.48 lbs).
- Description
- Ask a Question
-

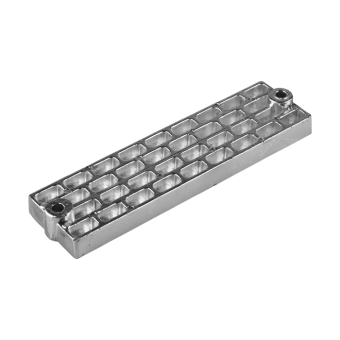

Tecnoseal 43396 / 71320A3 Mercury Waffle Bar Anode for 25–75 HP
The Tecnoseal 00805 is a zinc waffle bar anode designed for Mercury outboard motors and compatible Mercruiser applications. It provides sacrificial corrosion protection for marine engine and drive components exposed to water. According to the Tecnoseal catalogue, it corresponds to original part numbers 43396 and 71320A3.
The anode features an elongated rectangular body with a distinctive waffle-pattern surface and two mounting points. It measures 194 mm (7.64") in overall length, 52 mm (2.05") in width and 20 mm (0.79") in height. Additional catalogue dimensions include b = 158 mm and i = 177 mm, with mounting diameters Ø = 16 mm and Ø1 = 7 mm. The zinc anode weighs 0.67 kg (1.48 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 00805 Product Type Waffle Bar Anode Material Zinc Application Mercury / Mercruiser OEM Part Numbers 43396, 71320A3 Weight 0.67 kg (1.48 lbs)
Engine Compatibility
- Mercury: 25 HP, 50 HP, 60 HP, 75 HP
- Mercruiser: 90, 100, 115, 190
- Superamerica: 80
Dimensions and Mounting
Catalogue Dimension Measurement Length (l) 194 mm (7.64") Width (a) 52 mm (2.05") Dimension (b) 158 mm (6.22") Height (h) 20 mm (0.79") Dimension (i) 177 mm (6.97") Diameter (Ø) 16 mm (0.63") Diameter (Ø1) 7 mm (0.28")
OEM and Product References
- Mercury / Mercruiser OEM: 43396
- Mercury / Mercruiser OEM: 71320A3
- Tecnoseal Part Number: 00805
Key Features
- Zinc waffle bar anode for Mercury and compatible Mercruiser applications.
- OEM references: 43396 and 71320A3.
- Compatible with Mercury 25/50/60/75 HP models.
- Also listed for Mercruiser 90/100/115/190 and Superamerica 80.
- Rectangular bar with waffle-pattern surface.
- Two mounting points.
- Overall length: 194 mm.
- Width: 52 mm.
- Height: 20 mm.
- Additional dimensions: b = 158 mm, i = 177 mm.
- Mounting diameters: Ø = 16 mm, Ø1 = 7 mm.
- Weight: 670 g (1.48 lbs).
-
