Tecnoseal Condaria Zinc Pencil Anodes for Marine A/C Systems M12Sx

Tecnoseal Condaria Zinc Pencil Anodes for Marine A/C Systems – M12Sx

Tecnoseal Condaria zinc pencil anodes are designed for marine air-conditioning systems, providing sacrificial corrosion protection for metallic components exposed to cooling water. The range includes four replacement anodes with different body dimensions and weights, allowing the appropriate version to be selected according to the existing Condaria A/C system installation.

Each anode features a cylindrical zinc body with an integrated mounting extension. Available body diameters are 26, 29 and 50 mm, with lengths ranging from 15 to 30 mm. The mounting extensions measure 14–15 mm in length and have a connection designated M12Sx in the Tecnoseal catalogue. The Ø1 dimensions vary between 3.50 and 3.90 mm.

The compact 02650, 02651 and 02652 models weigh between 0.08 and 0.15 kg, while the larger 02653 version weighs 0.37 kg. The four models have different body proportions and mounting dimensions to accommodate the corresponding A/C system fitting.

Key Features

• Manufacturer: Tecnoseal
• Application: Condaria marine air-conditioning systems
• Product Type: Sacrificial pencil anode
• Material: Zinc
• Configuration: Anode only
• Available Models: 02650, 02651, 02652, 02653
• Body Diameters: 26, 29 and 50 mm
• Body Lengths: 15–30 mm
• Mounting Connection (b): M12Sx
• Weight Range: 0.08–0.37 kg

Available Models and Technical Specifications

Individual Model Specifications

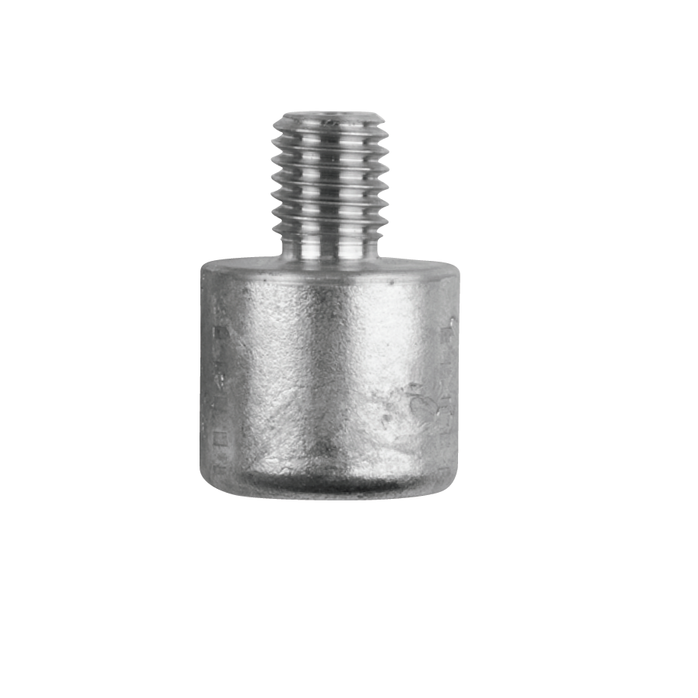

Tecnoseal 02650 – Condaria Zinc Pencil Anode Ø26 x 23 mm

The Tecnoseal 02650 features a cylindrical zinc body measuring 26 mm in diameter and 23 mm in length. Its integrated mounting extension measures 15 mm, with an M12Sx connection and a Ø1 dimension of 3.60 mm. Weighing 0.10 kg (0.22 lbs), this anode is designed for corrosion protection in compatible Condaria marine A/C installations.

• Product Code: 02650
• Material: Zinc
• Diameter (Ø): 26 mm (1.02 in)
• Body Length (l): 23 mm (0.91 in)
• Extension Length (l1): 15 mm (0.59 in)
• Mounting Connection (b): M12Sx
• Ø1: 3.60 mm (0.14 in)
• Weight: 0.10 kg (0.22 lbs)
• EAN: 8059617817633

Tecnoseal 02651 – Condaria Zinc Pencil Anode Ø29 x 15 mm

The Tecnoseal 02651 is a short cylindrical zinc anode with a 29 mm body diameter and a length of 15 mm. Its mounting extension also measures 15 mm and features an M12Sx connection, while the Ø1 dimension is 3.70 mm. The anode weighs 0.08 kg (0.18 lbs), making it the lightest version in this Condaria range.

• Product Code: 02651
• Material: Zinc
• Diameter (Ø): 29 mm (1.14 in)
• Body Length (l): 15 mm (0.59 in)
• Extension Length (l1): 15 mm (0.59 in)
• Mounting Connection (b): M12Sx
• Ø1: 3.70 mm (0.15 in)
• Weight: 0.08 kg (0.18 lbs)
• EAN: 8052744983929

Tecnoseal 02652 – Condaria Zinc Pencil Anode Ø29 x 30 mm

The Tecnoseal 02652 has a 29 mm diameter zinc body measuring 30 mm in length, providing a longer configuration than the 02651 model. It features a 15 mm mounting extension with an M12Sx connection and a Ø1 dimension of 3.90 mm. The anode weighs 0.15 kg (0.33 lbs) and is intended for compatible Condaria marine air-conditioning systems.

• Product Code: 02652
• Material: Zinc
• Diameter (Ø): 29 mm (1.14 in)
• Body Length (l): 30 mm (1.18 in)
• Extension Length (l1): 15 mm (0.59 in)
• Mounting Connection (b): M12Sx
• Ø1: 3.90 mm (0.15 in)
• Weight: 0.15 kg (0.33 lbs)
• EAN: 8052744983936

Tecnoseal 02653 – Condaria Zinc Pencil Anode Ø50 x 26 mm

The Tecnoseal 02653 is the largest zinc anode in this Condaria selection, featuring a cylindrical body measuring 50 mm in diameter and 26 mm in length. It has a 14 mm mounting extension with an M12Sx connection and a Ø1 dimension of 3.50 mm. Weighing 0.37 kg (0.82 lbs), it provides a larger sacrificial zinc body for the corresponding Condaria A/C system installation.

• Product Code: 02653
• Material: Zinc
• Diameter (Ø): 50 mm (1.97 in)
• Body Length (l): 26 mm (1.02 in)
• Extension Length (l1): 14 mm (0.55 in)
• Mounting Connection (b): M12Sx
• Ø1: 3.50 mm (0.14 in)
• Weight: 0.37 kg (0.82 lbs)
• EAN: 8052530702543

Application and Compatibility

• Condaria marine air-conditioning systems
• Compatible cooling-water circuit installations using the specified anode dimensions and mounting connection

Model Selection

Select the required Condaria zinc pencil anode by matching the original anode body diameter, body length, mounting extension and Ø1 dimension. Although all four versions share the M12Sx connection designation, their physical dimensions differ.

The 02651 and 02652 models have the same 29 mm body diameter but different body lengths of 15 and 30 mm. The 02650 measures 26 x 23 mm, while the larger 02653 measures 50 x 26 mm. Verify the existing anode dimensions before ordering.
