Tecnoseal Caterpillar Marine Engine Pencil Anodes with Brass Plugs

Tecnoseal Caterpillar Marine Engine Pencil Anodes with Brass Plugs – Zinc & Aluminium

Tecnoseal Caterpillar pencil anodes with brass plugs are designed to protect marine engine heat exchangers and cooling system components against galvanic corrosion. Each complete assembly combines a replaceable sacrificial anode rod with a brass mounting plug, providing a convenient replacement for compatible Caterpillar marine engine installations.

The range includes 14 configurations with different anode diameters, lengths and mounting connections. Most models feature zinc sacrificial rods, while the 02027TAL version is made from aluminium. The cylindrical anode bodies measure between 9 and 28 mm in diameter and between 20 and 76 mm in length.

The brass plugs feature external connections including BSPT tapered pipe threads and UNF threaded versions. Available head dimensions range from 10 to 25 mm, depending on the model. The assemblies weigh between 0.03 and 0.50 kg, allowing the appropriate replacement to be selected according to the original part reference, zinc or aluminium material, rod dimensions and mounting thread.

Available Models and Technical Specifications

Individual Model Specifications

Tecnoseal 02021/1T – Zinc Pencil Anode Ø9 x 35 mm with Brass Plug 7/16" UNF

The Tecnoseal 02021/1T combines a 9 mm diameter, 35 mm long zinc sacrificial rod with a brass mounting plug featuring a 7/16" UNF external thread. Its 14 mm head dimension and total weight of 0.03 kg (0.07 lbs) make it a compact replacement assembly for compatible Caterpillar heat exchangers.

• Product Code: 02021/1T
• Original Part Number: 116-7011
• Diameter (Ø): 9 mm (0.35 in)
• Length (l): 35 mm (1.38 in)
• External Thread (a): 7/16" UNF
• Head Dimension (c): 14 mm (0.55 in)
• Weight: 0.03 kg (0.07 lbs)
• Plug Type: 2T

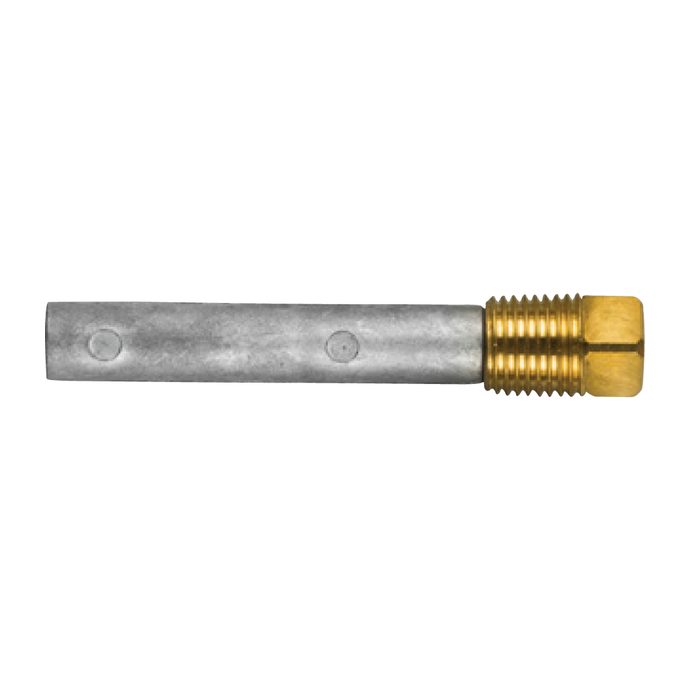

Tecnoseal 02021T – Zinc Pencil Anode Ø10 x 55 mm with Brass Plug 1/4" BSPT

The Tecnoseal 02021T features a 10 mm diameter zinc pencil anode measuring 55 mm in length. It is supplied complete with a brass plug featuring a 1/4" BSPT tapered external thread and a 10 mm head dimension. The assembly weighs 0.05 kg (0.11 lbs).

• Product Code: 02021T
• Diameter (Ø): 10 mm (0.39 in)
• Length (l): 55 mm (2.17 in)
• External Thread (a): 1/4" BSPT
• Head Dimension (c): 10 mm (0.39 in)
• Weight: 0.05 kg (0.11 lbs)
• Plug Type: 1T

Tecnoseal 02021-2T – Zinc Pencil Anode Ø10 x 40 mm with Brass Plug 3/8" BSPT

The Tecnoseal 02021-2T combines a 10 mm diameter, 40 mm long zinc rod with a brass plug featuring a 3/8" BSPT tapered external thread. The plug has an 11 mm head dimension, while the complete assembly weighs 0.04 kg (0.09 lbs).

• Product Code: 02021-2T
• Diameter (Ø): 10 mm (0.39 in)
• Length (l): 40 mm (1.57 in)
• External Thread (a): 3/8" BSPT
• Head Dimension (c): 11 mm (0.43 in)
• Weight: 0.04 kg (0.09 lbs)
• Plug Type: 1T

Tecnoseal 02022T – Zinc Pencil Anode Ø22 x 20 mm with Brass Plug 3/4" BSPT

The Tecnoseal 02022T is a complete pencil anode assembly featuring a 22 mm diameter zinc body measuring 20 mm in length. The brass plug has a 3/4" BSPT external thread and a 16 mm head dimension. The complete assembly weighs 0.15 kg (0.33 lbs).

• Product Code: 02022T
• Diameter (Ø): 22 mm (0.87 in)
• Length (l): 20 mm (0.79 in)
• External Thread (a): 3/4" BSPT
• Head Dimension (c): 16 mm (0.63 in)
• Weight: 0.15 kg (0.33 lbs)
• Plug Type: 1T

Tecnoseal 02023T – Zinc Pencil Anode Ø16 x 76 mm with Brass Plug 1/2" BSPT

The Tecnoseal 02023T features an elongated zinc pencil anode measuring 16 mm in diameter and 76 mm in length. The assembly includes a brass plug with a 1/2" BSPT tapered external thread and a 14 mm head dimension. It weighs 0.16 kg (0.35 lbs).

• Product Code: 02023T
• Diameter (Ø): 16 mm (0.63 in)
• Length (l): 76 mm (2.99 in)
• External Thread (a): 1/2" BSPT
• Head Dimension (c): 14 mm (0.55 in)
• Weight: 0.16 kg (0.35 lbs)
• Plug Type: 1T

Tecnoseal 02024T – Zinc Pencil Anode Ø16 x 63 mm with Brass Plug 1/2" BSPT

The Tecnoseal 02024T combines a 16 mm diameter, 63 mm long zinc sacrificial anode with a brass plug featuring a 1/2" BSPT tapered external thread. Its 14 mm head dimension and total weight of 0.14 kg (0.31 lbs) distinguish this configuration from the longer and shorter versions in the range.

• Product Code: 02024T
• Diameter (Ø): 16 mm (0.63 in)
• Length (l): 63 mm (2.48 in)
• External Thread (a): 1/2" BSPT
• Head Dimension (c): 14 mm (0.55 in)
• Weight: 0.14 kg (0.31 lbs)
• Plug Type: 1T

Tecnoseal 02024-1T – Zinc Pencil Anode Ø16 x 51 mm with Brass Plug 1/2" BSPT

The Tecnoseal 02024-1T is a complete zinc pencil anode assembly featuring a 16 mm diameter rod measuring 51 mm in length. It includes a brass plug with a 1/2" BSPT external thread and a 14 mm head dimension. Weighing 0.11 kg (0.24 lbs), it corresponds to original part number 5B9651.

• Product Code: 02024-1T
• Original Part Number: 5B9651
• Diameter (Ø): 16 mm (0.63 in)
• Length (l): 51 mm (2.01 in)
• External Thread (a): 1/2" BSPT
• Head Dimension (c): 14 mm (0.55 in)
• Weight: 0.11 kg (0.24 lbs)
• Plug Type: 1T

Tecnoseal 02026T – Zinc Pencil Anode Ø28 x 54 mm with Brass Plug 1-1/4" BSPT

The Tecnoseal 02026T is the largest assembly in this range, featuring a zinc pencil anode measuring 28 mm in diameter and 54 mm in length. Its brass plug has a 1-1/4" BSPT tapered external thread and a 24 mm head dimension. The complete assembly weighs 0.50 kg (1.10 lbs).

• Product Code: 02026T
• Diameter (Ø): 28 mm (1.10 in)
• Length (l): 54 mm (2.13 in)
• External Thread (a): 1-1/4" BSPT
• Head Dimension (c): 24 mm (0.94 in)
• Weight: 0.50 kg (1.10 lbs)
• Plug Type: 1T

Tecnoseal 02027T – Zinc Pencil Anode Ø12 x 40 mm with Brass Plug 3/8" BSPT

The Tecnoseal 02027T features a 12 mm diameter zinc rod measuring 40 mm in length. The brass plug has a 3/8" BSPT tapered external thread and an 11 mm head dimension. The complete assembly weighs 0.06 kg (0.13 lbs) and corresponds to Caterpillar original part number 642279.

• Product Code: 02027T
• Original Part Number: 642279
• Material: Zinc + Brass
• Diameter (Ø): 12 mm (0.47 in)
• Length (l): 40 mm (1.57 in)
• External Thread (a): 3/8" BSPT
• Head Dimension (c): 11 mm (0.43 in)
• Weight: 0.06 kg (0.13 lbs)
• Plug Type: 1T

Tecnoseal 02027TAL – Aluminium Pencil Anode Ø12 x 40 mm with Brass Plug 3/8" BSPT

The Tecnoseal 02027TAL is the aluminium version of the 02027T complete assembly. It features an aluminium sacrificial rod measuring 12 mm in diameter and 40 mm in length, together with a brass plug with a 3/8" BSPT external thread and an 11 mm head dimension. The aluminium assembly weighs 0.04 kg (0.09 lbs).

• Product Code: 02027TAL
• Material: Aluminium + Brass
• Diameter (Ø): 12 mm (0.47 in)
• Length (l): 40 mm (1.57 in)
• External Thread (a): 3/8" BSPT
• Head Dimension (c): 11 mm (0.43 in)
• Weight: 0.04 kg (0.09 lbs)
• Plug Type: 1T

Tecnoseal 02028T – Zinc Pencil Anode Ø16 x 41 mm with Brass Plug 1/2" BSPT

The Tecnoseal 02028T combines a 16 mm diameter, 41 mm long zinc sacrificial anode with a brass mounting plug featuring a 1/2" BSPT external thread. The plug has a 25 mm head dimension and uses the 2T configuration. Weighing 0.13 kg (0.29 lbs), it corresponds to Caterpillar original part number 7E5076.

• Product Code: 02028T
• Original Part Number: 7E5076
• Diameter (Ø): 16 mm (0.63 in)
• Length (l): 41 mm (1.61 in)
• External Thread (a): 1/2" BSPT
• Head Dimension (c): 25 mm (0.98 in)
• Weight: 0.13 kg (0.29 lbs)
• Plug Type: 2T

Tecnoseal 02029BIST – Zinc Pencil Anode Ø10 x 38 mm with Brass Plug 1/4" GAS

The Tecnoseal 02029BIST features a 10 mm diameter zinc pencil anode measuring 38 mm in length. Its brass mounting plug has a 1/4" GAS external connection and a 22 mm head dimension. The complete assembly weighs 0.04 kg (0.09 lbs).

• Product Code: 02029BIST
• Diameter (Ø): 10 mm (0.39 in)
• Length (l): 38 mm (1.50 in)
• External Thread (a): 1/4" GAS
• Head Dimension (c): 22 mm (0.87 in)
• Weight: 0.04 kg (0.09 lbs)
• Plug Type: 2T

Tecnoseal 02029T – Zinc Pencil Anode Ø12.5 x 38 mm with Brass Plug 3/8" BSPT

The Tecnoseal 02029T combines a 12.5 mm diameter zinc rod measuring 38 mm in length with a brass plug featuring a 3/8" BSPT external thread and a 19 mm head dimension. The complete assembly weighs 0.07 kg (0.15 lbs).

• Product Code: 02029T
• Diameter (Ø): 12.5 mm (0.49 in)
• Length (l): 38 mm (1.50 in)
• External Thread (a): 3/8" BSPT
• Head Dimension (c): 19 mm (0.75 in)
• Weight: 0.07 kg (0.15 lbs)
• Plug Type: 2T

Tecnoseal 02029-1T – Zinc Pencil Anode Ø14 x 50 mm with Brass Plug 3/4" UNF

The Tecnoseal 02029-1T features a zinc sacrificial rod measuring 14 mm in diameter and 50 mm in length. It includes a brass plug with a 3/4" UNF external thread and a 22 mm head dimension. The complete assembly weighs 0.11 kg (0.24 lbs).

• Product Code: 02029-1T
• Diameter (Ø): 14 mm (0.55 in)
• Length (l): 50 mm (1.97 in)
• External Thread (a): 3/4" UNF
• Head Dimension (c): 22 mm (0.87 in)
• Weight: 0.11 kg (0.24 lbs)
• Plug Type: 2T

OEM and Product Cross-References

Application

• Caterpillar marine engine heat exchangers
• Compatible Caterpillar marine engine cooling systems
• Replacement assemblies combining a sacrificial anode and brass mounting plug

Key Features

• Complete sacrificial pencil anode assemblies with brass plugs.
• Available in zinc and aluminium versions.
• 14 models with different diameters, lengths and mounting threads.
• Zinc or aluminium rods measuring 9–28 mm in diameter.
• Rod lengths from 20 to 76 mm.
• BSPT, GAS and UNF external mounting connections.
• Available with 1T and 2T plug configurations.
• Suitable for replacement during routine marine heat exchanger maintenance.

Model Selection

Select the correct assembly by matching the Caterpillar original part number, sacrificial rod diameter and length, external brass plug thread and head dimensions. Similar anode sizes may have different mounting connections, and BSPT tapered pipe threads must not be confused with straight UNF threads.

The 02027T and 02027TAL models share the same rod dimensions and brass plug specifications but differ in sacrificial anode material. Select zinc or aluminium according to the requirements of the cooling system and the intended replacement specification.
