Tecnoseal Cummins Zinc Pencil Anodes for Marine Engine Heat Exchangers

Tecnoseal Cummins Zinc Pencil Anodes for Marine Engine Heat Exchangers

Tecnoseal Cummins zinc pencil anodes are designed for marine engine heat exchangers and cooling systems. These sacrificial anodes help protect internal metallic components against galvanic corrosion in cooling-water circuits. The range includes seven replacement models with different zinc body dimensions and mounting connections.

The cylindrical zinc bodies measure from 10 to 18 mm in diameter and from 20 to 65 mm in length. Each model has an integrated mounting extension, with lengths ranging from 8 to 15 mm. Depending on the version, the mounting connection is specified as M6, 16x1.5, 3/8" UNC, 7/16" UNF or a 15.5 mm dimension.

The individual anodes weigh between 0.01 and 0.14 kg. The 02040 is the longest model at 65 mm, while the 02042 offers a compact 10 x 20 mm body. Other configurations include 16 mm diameter rods in different lengths and mounting sizes.

All models are supplied as zinc anodes only, without brass mounting plugs. The range includes replacement references for Cummins part numbers 68241 and 5290511, together with the alternative Tecnoseal references TEC-E1-Z and 01318.

Key Features

• Manufacturer: Tecnoseal
• Application: Cummins marine engine heat exchangers and cooling systems
• Product Type: Sacrificial pencil anode
• Material: Zinc
• Configuration: Anode only
• Available Models: 02040, 02041, 02042, 02043, 02044, 02045, 02045-1
• Body Diameters: 10–18 mm
• Body Lengths: 20–65 mm
• Weight Range: 0.01–0.14 kg
• Mounting: Integrated extension with model-specific connection

Available Models and Technical Specifications

Individual Model Specifications

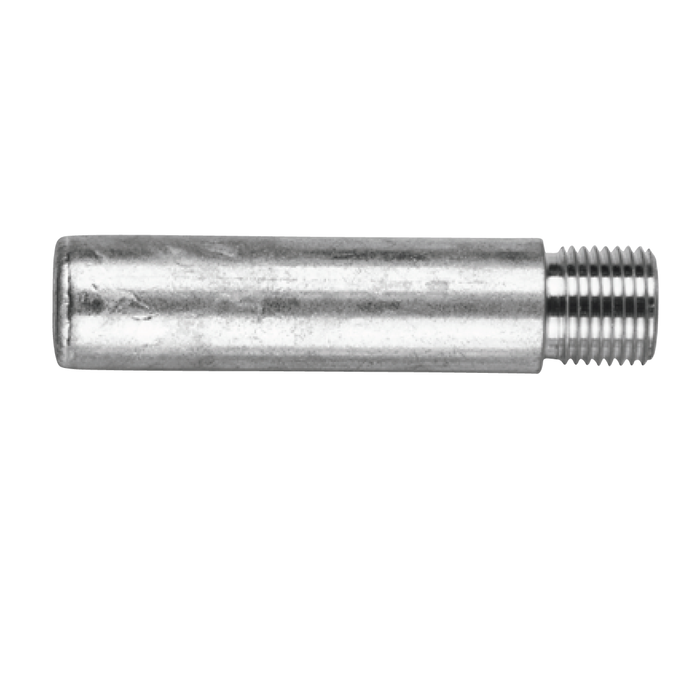

Tecnoseal 02040 – Cummins Zinc Pencil Anode Ø18 x 65 mm

The Tecnoseal 02040 is an elongated zinc pencil anode designed for Cummins marine cooling applications. Its cylindrical body measures 18 mm in diameter and 65 mm in length, providing the longest zinc element in this selection. The anode features a 15 mm mounting extension with a 16x1.5 connection and weighs 0.14 kg (0.31 lbs).

• Product Code: 02040
• Material: Zinc
• Body Diameter (Ø): 18 mm (0.71 in)
• Body Length (l): 65 mm (2.56 in)
• Extension Length (l1): 15 mm (0.59 in)
• Mounting Connection (b): 16x1.5
• Weight: 0.14 kg (0.31 lbs)
• Pencil Type: T1
• EAN: 8033837067344

Tecnoseal 02041 – Cummins Zinc Pencil Anode Ø16 x 31 mm

The Tecnoseal 02041 features a 16 mm diameter zinc body measuring 31 mm in length. It is fitted with a 12 mm threaded extension and a 3/8" UNC mounting connection. Weighing 0.05 kg (0.11 lbs), this compact replacement anode is intended for compatible Cummins marine engine cooling system installations.

• Product Code: 02041
• Material: Zinc
• Body Diameter (Ø): 16 mm (0.63 in)
• Body Length (l): 31 mm (1.22 in)
• Extension Length (l1): 12 mm (0.47 in)
• Mounting Thread (b): 3/8" UNC
• Weight: 0.05 kg (0.11 lbs)
• Pencil Type: T1
• EAN: 8033837067351

Tecnoseal 02042 – Cummins Zinc Pencil Anode Ø10 x 20 mm

The Tecnoseal 02042 is the smallest anode in this Cummins range, featuring a zinc body measuring 10 mm in diameter and 20 mm in length. Its 8 mm mounting extension uses an M6 threaded connection. The anode weighs 0.01 kg (0.02 lbs) and is supplied separately for replacement in a compatible existing fitting.

• Product Code: 02042
• Material: Zinc
• Body Diameter (Ø): 10 mm (0.39 in)
• Body Length (l): 20 mm (0.79 in)
• Extension Length (l1): 8 mm (0.31 in)
• Mounting Thread (b): M6
• Weight: 0.01 kg (0.02 lbs)
• Pencil Type: T1
• EAN: 8033837067368

Tecnoseal 02043 – Cummins Zinc Pencil Anode Ø16 x 50 mm

The Tecnoseal 02043 features a cylindrical zinc body measuring 16 mm in diameter and 50 mm in length. It has a 10 mm mounting extension with a 15.50 mm connection dimension, as specified in the Tecnoseal catalogue. Weighing 0.09 kg (0.20 lbs), this model uses the T2 pencil configuration, distinguishing it from the threaded T1 models.

• Product Code: 02043
• Material: Zinc
• Body Diameter (Ø): 16 mm (0.63 in)
• Body Length (l): 50 mm (1.97 in)
• Extension Length (l1): 10 mm (0.39 in)
• Connection Dimension (b): 15.50 mm (0.61 in)
• Weight: 0.09 kg (0.20 lbs)
• Pencil Type: T2
• EAN: 8033837067375

Tecnoseal 02044 – Cummins Zinc Pencil Anode Ø15.5 x 50 mm

The Tecnoseal 02044 is a zinc pencil anode measuring 15.50 mm in diameter and 50 mm in length. Its 9 mm mounting extension features a 7/16" UNF thread. The anode weighs 0.07 kg (0.15 lbs) and corresponds to original part number 68241, providing a replacement reference for compatible Cummins engine cooling systems.

• Product Code: 02044
• Original Part Number: 68241
• Material: Zinc
• Body Diameter (Ø): 15.50 mm (0.61 in)
• Body Length (l): 50 mm (1.97 in)
• Extension Length (l1): 9 mm (0.35 in)
• Mounting Thread (b): 7/16" UNF
• Weight: 0.07 kg (0.15 lbs)
• Pencil Type: T1
• EAN: 8033837067399

Tecnoseal 02045 – Cummins Zinc Pencil Anode Ø12.5 x 50 mm

The Tecnoseal 02045 features a zinc rod measuring 12.50 mm in diameter and 50 mm in length, with a 12 mm mounting extension and a 3/8" UNC thread. Weighing 0.05 kg (0.11 lbs), this anode corresponds to original part number 5290511 and is also listed under the alternative reference TEC-E1-Z.

• Product Code: 02045
• Original Part Number: 5290511
• Equivalent Reference: TEC-E1-Z
• Material: Zinc
• Body Diameter (Ø): 12.50 mm (0.49 in)
• Body Length (l): 50 mm (1.97 in)
• Extension Length (l1): 12 mm (0.47 in)
• Mounting Thread (b): 3/8" UNC
• Weight: 0.05 kg (0.11 lbs)
• Pencil Type: T1
• EAN: 8052744980898

Tecnoseal 02045-1 – Cummins Zinc Pencil Anode Ø12 x 30 mm

The Tecnoseal 02045-1 is a shorter zinc pencil anode with a 12 mm body diameter and a length of 30 mm. It features a 10 mm threaded extension with a 3/8" UNC connection and weighs 0.03 kg (0.07 lbs). The model is also referenced as Tecnoseal 01318.

• Product Code: 02045-1
• Equivalent Reference: 01318
• Material: Zinc
• Body Diameter (Ø): 12 mm (0.47 in)
• Body Length (l): 30 mm (1.18 in)
• Extension Length (l1): 10 mm (0.39 in)
• Mounting Thread (b): 3/8" UNC
• Weight: 0.03 kg (0.07 lbs)
• Pencil Type: T1
• EAN: 8052744984889

Original Part Numbers and Cross-References

Application and Compatibility

• Cummins marine engine heat exchangers
• Compatible Cummins cooling-water systems using replaceable pencil anodes
• Replacement of sacrificial zinc rods during cooling system maintenance

Model Selection

Select the correct Tecnoseal Cummins pencil anode by comparing the original part number, zinc rod diameter, body length, mounting extension length and connection type. Similar body dimensions do not necessarily indicate interchangeable mounting connections.

The 02043 and 02044 models both have 50 mm long bodies but differ in diameter and mounting configuration. The 02045 and 02045-1 models share a 3/8" UNC mounting thread but have different rod dimensions and extension lengths. Check the existing anode and fitting dimensions before ordering.

All seven models are supplied as zinc anodes only, without separate brass plugs.
