Tecnoseal Ford Brass Plugs for Marine Engine Pencil Anodes – 1/4" & 1/2" BSPT

Tecnoseal Ford Brass Plugs for Marine Engine Pencil Anodes – 1/4" & 1/2" BSPT

Tecnoseal Ford brass plugs are replacement mounting fittings for sacrificial pencil anodes used in compatible marine engine heat exchangers and cooling systems. These brass components provide a mounting connection for the anode and allow the original fitting to be replaced separately from the sacrificial zinc rod.

The range includes two models with different tapered external threads and mounting dimensions. The Tecnoseal 02070TP features a 1/4" BSPT thread, an 8.50 mm connection dimension and a 14 mm head. The larger 02071TP uses a 1/2" BSPT thread, a 12 mm connection dimension and a 22 mm head.

Both versions have the 2TP brass plug configuration. The smaller plug weighs 0.02 kg, while the larger version weighs 0.05 kg. The fittings are supplied individually without zinc anodes and can be selected according to the existing mounting thread, connection dimensions and Tecnoseal cross-references.

Key Features

• Manufacturer: Tecnoseal
• Application: Ford marine engine cooling systems
• Product Type: Replacement brass plug for pencil anode
• Material: Brass
• Configuration: Brass plug only
• Available Models: 02070TP and 02071TP
• External Threads: 1/4" BSPT and 1/2" BSPT
• Connection Dimensions (b): 8.50 and 12 mm
• Head Dimensions (c): 14 and 22 mm
• Plug Type: 2TP
• Weight Range: 0.02–0.05 kg

Available Models and Technical Specifications

Individual Model Specifications

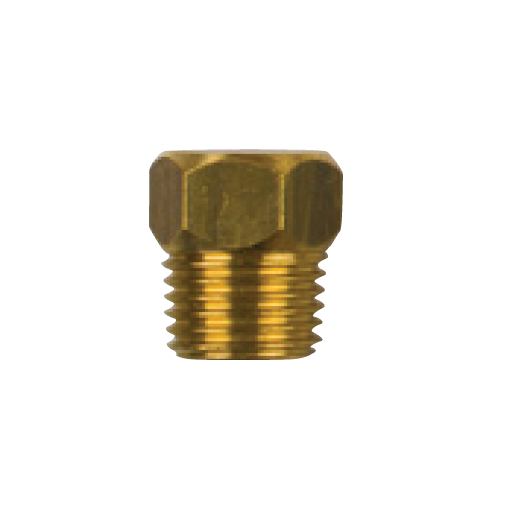

Tecnoseal 02070TP – Ford Brass Plug 1/4" BSPT

The Tecnoseal 02070TP is a compact brass mounting plug featuring a 1/4" BSPT (Gas Conico) tapered external thread. Its internal connection dimension is 8.50 mm (0.33 in), and the plug has a 14 mm (0.55 in) head. Weighing 0.02 kg (0.04 lbs), it is designed for use with compatible Ford marine engine pencil anodes and is supplied without the zinc rod.

• Product Code: 02070TP
• Material: Brass
• External Thread (a): 1/4" BSPT (Gas Conico)
• Connection Dimension (b): 8.50 mm (0.33 in)
• Head Dimension (c): 14 mm (0.55 in)
• Weight: 0.02 kg (0.04 lbs)
• Plug Type: 2TP
• Equivalent Tecnoseal References: 02351TP, 02053TP
• EAN: 8033837067535
• Supply: Brass plug only

Tecnoseal 02071TP – Ford Brass Plug 1/2" BSPT

The Tecnoseal 02071TP is a larger brass plug with a 1/2" BSPT (Gas Conico) tapered external thread. It features a 12 mm (0.47 in) connection dimension and a 22 mm (0.87 in) head. The plug weighs 0.05 kg (0.11 lbs) and provides a mounting fitting for compatible sacrificial pencil anodes. This model is also referenced as Tecnoseal 02350TP.

• Product Code: 02071TP
• Material: Brass
• External Thread (a): 1/2" BSPT (Gas Conico)
• Connection Dimension (b): 12 mm (0.47 in)
• Head Dimension (c): 22 mm (0.87 in)
• Weight: 0.05 kg (0.11 lbs)
• Plug Type: 2TP
• Equivalent Tecnoseal Reference: 02350TP
• EAN: 8033837067559
• Supply: Brass plug only

Equivalent Tecnoseal References

Application and Compatibility

• Ford marine engine cooling systems
• Compatible marine engine heat exchangers
• Replacement mounting fittings for sacrificial pencil anodes

Model Selection

Select the appropriate brass plug by matching the external mounting thread and the dimensions of the existing fitting. The 02070TP has a 1/4" BSPT thread with a 14 mm head, while the 02071TP has a larger 1/2" BSPT thread with a 22 mm head.

The connection dimensions also differ: 8.50 mm for the 02070TP and 12 mm for the 02071TP. Check these dimensions together with the original Tecnoseal reference before ordering.

Supply: Both models are supplied as individual brass plugs without sacrificial zinc anodes.
