Tecnoseal Ford Zinc Pencil Anodes with Brass Plugs for Marine Engine Heat Exchangers

ID 1405959

$ 44.97

1-2 weeks delivery time

Size:

14x26
10x18

Item:

1/2 BSPT
1/4 BSPT

Tecnoseal Ford zinc pencil anodes with brass plugs are complete sacrificial anode assemblies for compatible marine engine cooling systems and heat exchangers. The 02070T features a zinc rod measuring 10 mm in diameter and 18 mm in length, with a 1/4-inch BSPT brass mounting plug and a 14 mm head. The larger 02071T has a 14 mm diameter, 26 mm long zinc rod with a 1/2-inch BSPT plug and a 22 mm head. Both use the 2T configuration and provide corrosion protection for metallic components exposed to cooling water. The complete assemblies weigh 0.04 kg and 0.08 kg respectively. Alternative Tecnoseal references include 02053T, 06002T and 02350T.

Description
Ask a Question

Tecnoseal Ford Zinc Pencil Anodes with Brass Plugs for Marine Engine Heat Exchangers

Tecnoseal Ford zinc pencil anodes with brass plugs are complete sacrificial anode assemblies designed for compatible marine engine cooling systems and heat exchangers. Each assembly combines a cylindrical zinc rod with a brass mounting plug, helping protect metallic components exposed to cooling water against galvanic corrosion.

The range includes two versions with different anode dimensions and mounting connections. The Tecnoseal 02070T features a zinc body measuring 10 mm in diameter and 18 mm in length, while the larger 02071T measures 14 mm in diameter and 26 mm in length. Both versions include brass mounting plugs with tapered BSPT external threads.

The 02070T uses a 1/4" BSPT plug with a 14 mm head and weighs 0.04 kg. The 02071T features a 1/2" BSPT plug with a 22 mm head and weighs 0.08 kg. Both models have the 2T pencil configuration and are supplied complete with their brass plugs, ready for installation in compatible Ford marine cooling systems.

Key Features
- Manufacturer: Tecnoseal
- Compatible Brand: Ford
- Product Type: Sacrificial pencil anode with brass plug
- Anode Material: Zinc
- Plug Material: Brass
- Configuration: Complete with Brass Plug
- Available Models: 02070T, 02071T
- Anode Diameters: 10 and 14 mm
- Anode Lengths: 18 and 26 mm
- External Threads: 1/4" BSPT and 1/2" BSPT
- Plug Head Dimensions: 14 and 22 mm
- Pencil Type: 2T
- Weight Range: 0.04–0.08 kg
Available Models and Technical Specifications

Tecnoseal Code Diameter (Ø) Length (l) Plug Thread (a) Head (c) Weight

02070T 10 mm 18 mm 1/4" BSPT 14 mm 0.04 kg / 0.09 lbs

02071T 14 mm 26 mm 1/2" BSPT 22 mm 0.08 kg / 0.18 lbs

Individual Model Specifications

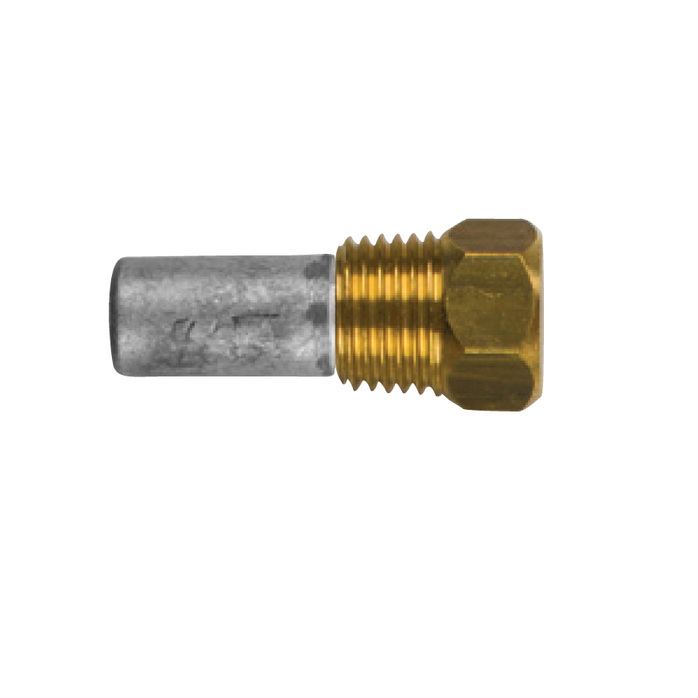

Tecnoseal 02070T – Ford Zinc Pencil Anode Ø10 x 18 mm with 1/4" BSPT Brass Plug

The Tecnoseal 02070T combines a compact cylindrical zinc anode measuring 10 mm (0.39 in) in diameter and 18 mm (0.71 in) in length with a brass mounting plug. The plug features a 1/4" BSPT (Gas Conico) tapered external thread and a 14 mm (0.55 in) head dimension. The complete assembly weighs 0.04 kg (0.09 lbs) and is designed for corrosion protection in compatible Ford marine engine cooling systems.

This model is also listed under Tecnoseal references 02053T and 06002T, which can be used for identifying the corresponding replacement assembly.
- Product Code: 02070T
- Anode Material: Zinc
- Plug Material: Brass
- Anode Diameter (Ø): 10 mm (0.39 in)
- Anode Length (l): 18 mm (0.71 in)
- External Plug Thread (a): 1/4" BSPT (Gas Conico)
- Plug Head Dimension (c): 14 mm (0.55 in)
- Weight: 0.04 kg (0.09 lbs)
- Pencil Type: 2T
- Equivalent Tecnoseal References: 02053T, 06002T
- EAN: 8052744981604
- Supply: Complete with brass plug
Tecnoseal 02071T – Ford Zinc Pencil Anode Ø14 x 26 mm with 1/2" BSPT Brass Plug

The Tecnoseal 02071T is a larger zinc pencil anode assembly featuring a cylindrical zinc rod measuring 14 mm (0.55 in) in diameter and 26 mm (1.02 in) in length. Its brass mounting plug has a 1/2" BSPT (Gas Conico) tapered external thread and a 22 mm (0.87 in) head dimension.

Weighing 0.08 kg (0.18 lbs), this version provides a larger sacrificial zinc element than the 02070T and is intended for compatible Ford marine cooling system installations. The complete assembly is also referenced as Tecnoseal 02350T.
- Product Code: 02071T
- Anode Material: Zinc
- Plug Material: Brass
- Anode Diameter (Ø): 14 mm (0.55 in)
- Anode Length (l): 26 mm (1.02 in)
- External Plug Thread (a): 1/2" BSPT (Gas Conico)
- Plug Head Dimension (c): 22 mm (0.87 in)
- Weight: 0.08 kg (0.18 lbs)
- Pencil Type: 2T
- Equivalent Tecnoseal Reference: 02350T
- EAN: 8052744987552
- Supply: Complete with brass plug
Equivalent Tecnoseal References

Product Code Equivalent References

02070T 02053T, 06002T

02071T 02350T

Application and Compatibility
- Ford marine engine cooling systems
- Compatible marine engine heat exchangers
- Replacement of complete zinc pencil anode and brass mounting plug assemblies
Model Selection

Select the correct Tecnoseal Ford pencil anode assembly by matching the zinc rod diameter, rod length and external brass plug thread. The 02070T has a 10 x 18 mm zinc body and a 1/4" BSPT connection, while the 02071T features a 14 x 26 mm zinc body and a 1/2" BSPT connection.

The two versions also have different brass plug head dimensions of 14 and 22 mm. Verify the existing anode dimensions, mounting thread and replacement reference before ordering.

Supply: Both models are supplied as complete assemblies consisting of a zinc sacrificial anode and a brass mounting plug.
