Tecnoseal Caterpillar Brass Plugs for Engine Heat Exchanger Pencil Anodes

Name: Tecnoseal Caterpillar Brass Plugs for Engine Heat Exchanger Pencil Anodes
SKU: Tecnoseal 02021tp

ID 1405905

$ 28.38

1-2 weeks delivery time

Size:

1/4 BSPT
3/4 BSPT
1/2 BSPT
1-1/4 BSPT
3/8 BSPT
3/4 UNF
1/4 GAS

Item:

1/4 UNC c10
5/8 UNF c16
3/8 UNC c14 02023TP
3/8 UNC c14 02024-1TP
3/8 UNC c14 02024TP
3/4 UNC c24
3/8 UNC c11
7/16 UNF c25
3/8 UNC c22
1/4 UNC c16
7/16 UNF c19

Tecnoseal replacement plugs are designed for pencil anodes used in Caterpillar marine engine heat exchangers and cooling systems. The range includes 14 brass versions and one stainless steel version, with external connections ranging from 1/4-inch to 1-1/4-inch BSPT, alongside NPT, UNC and UNF threaded options. The plugs feature different internal anode connections, including 1/4-inch UNC, 3/8-inch UNC, 5/8-inch UNF and 7/16-inch UNF, with head dimensions from 10 to 25 mm. Individual plugs weigh between 0.02 and 0.28 kg, depending on their size and construction. Supplied separately without the sacrificial anode rod, they allow the mounting fitting to be replaced while retaining the appropriate anode configuration.

Description
Ask a Question

Tecnoseal Caterpillar Brass & Stainless Steel Plugs for Engine Heat Exchanger Pencil Anodes

Tecnoseal replacement plugs are designed for pencil anodes used in Caterpillar marine engine heat exchangers and cooling systems. These threaded fittings provide a mounting connection for compatible sacrificial anode rods and are available separately when the original plug requires replacement.

The range includes 15 configurations, with 14 brass models and one stainless steel version. The plugs have different external connections, including tapered BSPT pipe threads, a 1/2" NPT connection and UNF threaded versions. Internal connections vary from 1/4" UNC to 3/4" UNC and include specific UNF thread sizes. The 02021-2TP and 02027-1TP models also have mounting dimensions specified in millimetres.

The brass plugs are available in compact and larger configurations, with head dimensions from 10 to 25 mm and individual weights from 0.02 to 0.28 kg. The stainless steel 02029-2TP features a 1/2"-20 UNF external thread and a 1/4"-20 UNC internal connection. These different configurations allow the correct fitting to be selected according to the original Caterpillar part reference and existing heat exchanger connection.

Available Models and Technical Specifications

Tecnoseal Code	Material	External Connection (a)	Internal Connection (b)	Head (c)	Weight
02021/1TP	Brass	7/16" UNF	1/4" UNC	14 mm	0.02 kg
02021TP	Brass	1/4" BSPT	1/4" UNC	10 mm	0.02 kg
02022TP	Brass	3/4" BSPT	5/8" UNF	16 mm	0.08 kg
02021-2TP	Brass	3/8" BSPT	8 mm	11 mm	0.02 kg
02023TP	Brass	1/2" BSPT	3/8" UNC	14 mm	0.04 kg
02024-1TP	Brass	1/2" BSPT	3/8" UNC	14 mm	0.04 kg
02024TP	Brass	1/2" BSPT	3/8" UNC	14 mm	0.04 kg
02026TP	Brass	1-1/4" BSPT	3/4" UNC	24 mm	0.28 kg
02027TP	Brass	3/8" BSPT	3/8" UNC	11 mm	0.03 kg
02027-1TP	Brass	1/2" NPT	22 mm	11 mm	0.06 kg
02028TP	Brass	1/2" BSPT	7/16" UNF	25 mm	0.07 kg
02029-1TP	Brass	3/4" UNF	3/8" UNC	22 mm	0.05 kg
02029BISTP	Brass	1/4" GAS	1/4" UNC	16 mm	0.03 kg
02029TP	Brass	3/8" BSPT	7/16" UNF	19 mm	0.03 kg
02029-2TP	Stainless Steel	1/2"-20 UNF	1/4"-20 UNC	16 mm	0.03 kg

Individual Model Specifications

Tecnoseal 02021/1TP – Brass Plug 7/16" UNF

The Tecnoseal 02021/1TP is a compact brass mounting plug with a 7/16" UNF external thread and a 1/4" UNC internal anode connection. It has a 14 mm head dimension and weighs 0.02 kg (0.04 lbs).

External Thread (a): 7/16" UNF
Internal Thread (b): 1/4" UNC
Head Dimension (c): 14 mm (0.55 in)
Weight: 0.02 kg (0.04 lbs)
Plug Type: 2TP
EAN: 8033837067122

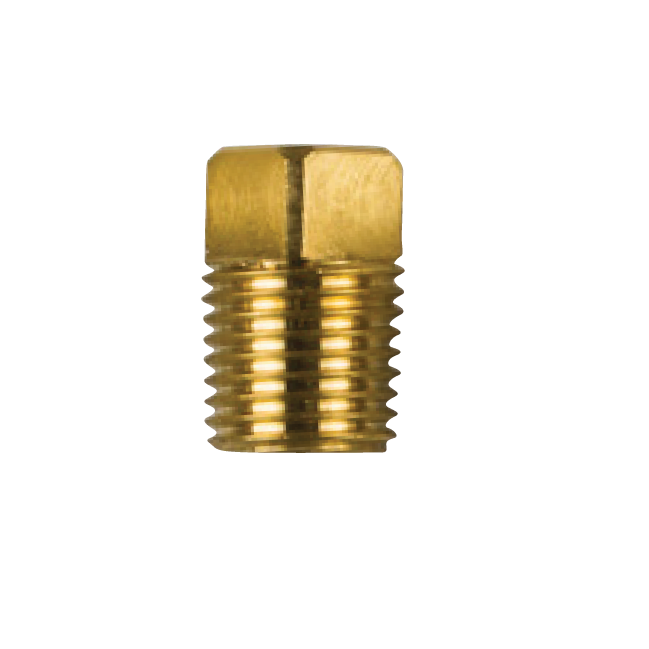

Tecnoseal 02021TP – Brass Plug 1/4" BSPT

The Tecnoseal 02021TP features a 1/4" BSPT tapered external thread and a 1/4" UNC internal connection for the sacrificial anode. Its head dimension is 10 mm, and it weighs 0.02 kg (0.04 lbs). The fitting corresponds to Caterpillar original part number 6L2282.

External Thread (a): 1/4" BSPT
Internal Thread (b): 1/4" UNC
Head Dimension (c): 10 mm (0.39 in)
Weight: 0.02 kg (0.04 lbs)
Caterpillar Original Part Number: 6L2282
Plug Type: 1TP
EAN: 8033837067108

Tecnoseal 02022TP – Brass Plug 3/4" BSPT

The Tecnoseal 02022TP is a brass plug with a 3/4" BSPT tapered external thread and a 5/8" UNF internal anode connection. It has a 16 mm head dimension and weighs 0.08 kg (0.18 lbs). It corresponds to Caterpillar original part number 6L2020.

External Thread (a): 3/4" BSPT
Internal Thread (b): 5/8" UNF
Head Dimension (c): 16 mm (0.63 in)
Weight: 0.08 kg (0.18 lbs)
Caterpillar Original Part Number: 6L2020
Plug Type: 1TP
EAN: 8033837067146

Tecnoseal 02021-2TP – Brass Plug 3/8" BSPT

The Tecnoseal 02021-2TP features a 3/8" BSPT tapered external thread and an 8 mm internal connection dimension. It has an 11 mm head dimension and weighs 0.02 kg (0.04 lbs).

External Thread (a): 3/8" BSPT
Connection Dimension (b): 8 mm (0.31 in)
Head Dimension (c): 11 mm (0.43 in)
Weight: 0.02 kg (0.04 lbs)
Plug Type: 1TP
EAN: 8058774834552

Tecnoseal 02023TP – Brass Plug 1/2" BSPT

The Tecnoseal 02023TP has a 1/2" BSPT tapered external thread and a 3/8" UNC internal anode connection. Its head dimension is 14 mm, and it weighs 0.04 kg (0.09 lbs). It is also referenced under Tecnoseal codes 02024-1TP and 02024TP.

External Thread (a): 1/2" BSPT
Internal Thread (b): 3/8" UNC
Head Dimension (c): 14 mm (0.55 in)
Weight: 0.04 kg (0.09 lbs)
Equivalent References: 02024-1TP, 02024TP
Plug Type: 1TP
EAN: 8033837067160

Tecnoseal 02024-1TP – Brass Plug 1/2" BSPT

The Tecnoseal 02024-1TP combines a 1/2" BSPT external thread with a 3/8" UNC internal connection. It features a 14 mm head dimension and weighs 0.04 kg (0.09 lbs). It is cross-referenced with Tecnoseal 02024TP and 02023TP.

External Thread (a): 1/2" BSPT
Internal Thread (b): 3/8" UNC
Head Dimension (c): 14 mm (0.55 in)
Weight: 0.04 kg (0.09 lbs)
Equivalent References: 02024TP, 02023TP
Plug Type: 1TP
EAN: 8059617816346

Tecnoseal 02024TP – Brass Plug 1/2" BSPT

The Tecnoseal 02024TP is a brass plug with a 1/2" BSPT tapered external thread and a 3/8" UNC internal connection. Its head dimension is 14 mm, and it weighs 0.04 kg (0.09 lbs). It corresponds to original part number 5B9169 and is cross-referenced with 02024-1TP and 02023TP.

External Thread (a): 1/2" BSPT
Internal Thread (b): 3/8" UNC
Head Dimension (c): 14 mm (0.55 in)
Weight: 0.04 kg (0.09 lbs)
Caterpillar Original Part Number: 5B9169
Equivalent References: 02024-1TP, 02023TP
Plug Type: 1TP
EAN: 8033837067184

Tecnoseal 02026TP – Brass Plug 1-1/4" BSPT

The Tecnoseal 02026TP is a larger brass mounting plug with a 1-1/4" BSPT tapered external thread and a 3/4" UNC internal anode connection. Its head dimension is 24 mm, and it weighs 0.28 kg (0.62 lbs).

External Thread (a): 1-1/4" BSPT
Internal Thread (b): 3/4" UNC
Head Dimension (c): 24 mm (0.94 in)
Weight: 0.28 kg (0.62 lbs)
Plug Type: 1TP
EAN: 8033837067214

Tecnoseal 02027TP – Brass Plug 3/8" BSPT

The Tecnoseal 02027TP features a 3/8" BSPT tapered external thread and a 3/8" UNC internal anode connection. It has an 11 mm head dimension and weighs 0.03 kg (0.07 lbs). It corresponds to Caterpillar original part number 6L2279 and is also referenced as Tecnoseal 02003TP.

External Thread (a): 3/8" BSPT
Internal Thread (b): 3/8" UNC
Head Dimension (c): 11 mm (0.43 in)
Weight: 0.03 kg (0.07 lbs)
Caterpillar Original Part Number: 6L2279
Equivalent Reference: 02003TP
Plug Type: 1TP
EAN: 8033837067238

Tecnoseal 02027-1TP – Brass Plug 1/2" NPT

The Tecnoseal 02027-1TP features a 1/2" NPT tapered external thread, a 22 mm connection dimension and an 11 mm head dimension. It weighs 0.06 kg (0.13 lbs) and corresponds to original part number 426-4063.

External Thread (a): 1/2" NPT
Connection Dimension (b): 22 mm (0.87 in)
Head Dimension (c): 11 mm (0.43 in)
Weight: 0.06 kg (0.13 lbs)
Original Part Number: 426-4063
Plug Type: 1TP
EAN: 8052530703113

Tecnoseal 02028TP – Brass Plug 1/2" BSPT

The Tecnoseal 02028TP uses a 1/2" BSPT tapered external thread and a 7/16" UNF internal connection. It has a 25 mm head dimension, weighs 0.07 kg (0.15 lbs), and features the 2TP plug configuration.

External Thread (a): 1/2" BSPT
Internal Thread (b): 7/16" UNF
Head Dimension (c): 25 mm (0.98 in)
Weight: 0.07 kg (0.15 lbs)
Plug Type: 2TP
EAN: 8033837067252

Tecnoseal 02029-1TP – Brass Plug 3/4" UNF

The Tecnoseal 02029-1TP is a brass plug with a 3/4" UNF external thread and a 3/8" UNC internal anode connection. It features a 22 mm head dimension and weighs 0.05 kg (0.11 lbs). The corresponding original part number is 3610785.

External Thread (a): 3/4" UNF
Internal Thread (b): 3/8" UNC
Head Dimension (c): 22 mm (0.87 in)
Weight: 0.05 kg (0.11 lbs)
Original Part Number: 3610785
Plug Type: 2TP
EAN: 8059617818463

Tecnoseal 02029BISTP – Brass Plug 1/4" GAS

The Tecnoseal 02029BISTP features a 1/4" GAS external connection and a 1/4" UNC internal anode thread. Its head dimension is 16 mm, and it weighs 0.03 kg (0.07 lbs). It corresponds to original part number 1149096.

External Thread (a): 1/4" GAS
Internal Thread (b): 1/4" UNC
Head Dimension (c): 16 mm (0.63 in)
Weight: 0.03 kg (0.07 lbs)
Original Part Number: 1149096
Plug Type: 2TP
EAN: 8033837067290

Tecnoseal 02029TP – Brass Plug 3/8" BSPT

The Tecnoseal 02029TP combines a 3/8" BSPT tapered external connection with a 7/16" UNF internal anode thread. It has a 19 mm head dimension and weighs 0.03 kg (0.07 lbs). It corresponds to Caterpillar original part number 6L2279G.

External Thread (a): 3/8" BSPT
Internal Thread (b): 7/16" UNF
Head Dimension (c): 19 mm (0.75 in)
Weight: 0.03 kg (0.07 lbs)
Caterpillar Original Part Number: 6L2279G
Plug Type: 2TP
EAN: 8033837067276

Tecnoseal 02029-2TP – Stainless Steel Plug 1/2"-20 UNF

The Tecnoseal 02029-2TP is a stainless steel mounting plug with a 1/2"-20 UNF external thread and a 1/4"-20 UNC internal connection. It features a 16 mm head dimension and weighs 0.03 kg (0.07 lbs). Its stainless steel construction distinguishes it from the brass versions in this range.

External Thread (a): 1/2"-20 UNF
Internal Thread (b): 1/4"-20 UNC
Head Dimension (c): 16 mm (0.63 in)
Weight: 0.03 kg (0.07 lbs)
Material: Stainless Steel (Inox)
Plug Type: 2TP
EAN: 8052530702505

Application

Caterpillar marine engine heat exchangers
Compatible Caterpillar marine cooling systems
Replacement mounting fittings for sacrificial pencil anodes

Key Features

15 replacement plug configurations for Caterpillar pencil anodes.
14 brass models and one stainless steel model.
Available with BSPT, NPT, UNC and UNF threaded connections.
Different internal connections for compatible sacrificial anode rods.
Available in 1TP and 2TP configurations.
Supplied separately without zinc or aluminium anode rods.
Original Caterpillar part references for replacement identification.

Model Selection

Select the replacement plug by matching the external thread, internal anode connection, head dimension and original part number. BSPT and NPT tapered threads must not be treated as interchangeable solely because their nominal sizes match. Similarly, plugs with the same external thread may have different internal connections or head dimensions.

The 02023TP, 02024-1TP and 02024TP models share the same listed dimensions and are cross-referenced in the Tecnoseal range. Verify the existing mounting fitting and the required anode connection before ordering.
