Tecnoseal Ford Zinc Pencil Anodes for Marine Engine Cooling Systems

Name: Tecnoseal Ford Zinc Pencil Anodes for Marine Engine Cooling Systems
SKU: Tecnoseal 02070

ID 1405953

$ 10.82

1-2 weeks delivery time

Size:

14x26
10x18

Item:

Tecnoseal Ford zinc pencil anodes provide sacrificial corrosion protection for compatible marine engine cooling systems. The range includes three replacement models: 02070 with a 10 mm diameter and 18 mm body length, 02070/A with a 10 mm diameter and 30 mm length, and 02071 with a 14 mm diameter and 26 mm length. Models 02070 and 02071 feature T2 mounting configurations with 8 mm extensions and connection dimensions of 8.5 and 12 mm respectively, while 02070/A uses the T4 cylindrical configuration without a protruding extension. Individual weights are 0.02–0.03 kg. All models are supplied as zinc anodes only, without brass plugs, and include cross-references to other Tecnoseal replacement codes.

Description
Ask a Question

Tecnoseal Ford Zinc Pencil Anodes for Marine Engine Cooling Systems

Tecnoseal Ford zinc pencil anodes are designed to provide sacrificial corrosion protection for compatible marine engine cooling systems. These replacement zinc anodes help protect metallic components exposed to cooling water against galvanic corrosion.

The range includes three models with different cylindrical body dimensions and mounting configurations. The 02070 and 02071 versions feature the T2 pencil design with an integrated mounting extension, while the 02070/A has a T4 cylindrical configuration without a protruding extension.

The zinc bodies measure 10 or 14 mm in diameter, with lengths of 18, 26 or 30 mm. The T2 versions feature 8 mm mounting extensions, with connection dimensions of 8.50 and 12 mm. Individual anodes weigh between 0.02 and 0.03 kg, depending on the model.

All three versions are supplied individually as zinc anodes only, without brass mounting plugs. The 02070 and 02071 models also have alternative Tecnoseal references for replacement identification.

Key Features

Manufacturer: Tecnoseal
Compatible Brand: Ford
Product Type: Sacrificial pencil anode
Material: Zinc
Configuration: Anode only
Available Models: 02070, 02070/A, 02071
Body Diameters: 10 and 14 mm
Body Lengths: 18, 26 and 30 mm
Pencil Types: T2 and T4
Weight Range: 0.02–0.03 kg

Available Models and Technical Specifications

Tecnoseal Code	Diameter (Ø)	Length (l)	Extension (l1)	Connection (b)	Pencil Type	Weight
02070	10 mm	18 mm	8 mm	8.50 mm	T2	0.02 kg
02070/A	10 mm	30 mm	—	—	T4	0.02 kg
02071	14 mm	26 mm	8 mm	12 mm	T2	0.03 kg

Individual Model Specifications

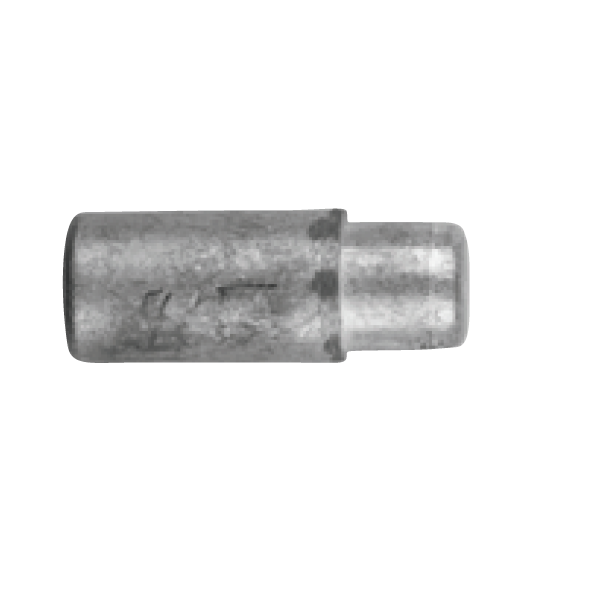

Tecnoseal 02070 – Ford Zinc Pencil Anode Ø10 x 18 mm

The Tecnoseal 02070 is a compact zinc pencil anode with a cylindrical body measuring 10 mm in diameter and 18 mm in length. It features the T2 mounting configuration, including an 8 mm extension with a connection dimension of 8.50 mm. The anode weighs 0.02 kg (0.04 lbs) and is also referenced under Tecnoseal codes 02053 and 02351.

Product Code: 02070
Material: Zinc
Diameter (Ø): 10 mm (0.39 in)
Body Length (l): 18 mm (0.71 in)
Extension Length (l1): 8 mm (0.31 in)
Connection Dimension (b): 8.50 mm (0.33 in)
Weight: 0.02 kg (0.04 lbs)
Pencil Type: T2
Equivalent References: 02053, 02351
EAN: 8033837067511

Tecnoseal 02070/A – Ford Zinc Pencil Anode Ø10 x 30 mm

The Tecnoseal 02070/A features a cylindrical zinc body measuring 10 mm in diameter and 30 mm in length. Unlike the T2 models, this version uses the T4 configuration without a protruding mounting extension. It weighs 0.02 kg (0.04 lbs) and provides an alternative cylindrical form for compatible Ford marine cooling system applications.

Product Code: 02070/A
Material: Zinc
Diameter (Ø): 10 mm (0.39 in)
Body Length (l): 30 mm
Weight: 0.02 kg (0.04 lbs)
Pencil Type: T4
Configuration: Cylindrical anode without protruding mounting extension
EAN: 8033837067528

Tecnoseal 02071 – Ford Zinc Pencil Anode Ø14 x 26 mm

The Tecnoseal 02071 is a zinc pencil anode featuring a 14 mm diameter body measuring 26 mm in length. Its T2 mounting configuration includes an 8 mm extension with a 12 mm connection dimension. Weighing 0.03 kg (0.07 lbs), the anode is also referenced under Tecnoseal codes 02020, 02350, 02010 and 02090.

Product Code: 02071
Material: Zinc
Diameter (Ø): 14 mm (0.55 in)
Body Length (l): 26 mm (1.02 in)
Extension Length (l1): 8 mm (0.31 in)
Connection Dimension (b): 12 mm (0.47 in)
Weight: 0.03 kg (0.07 lbs)
Pencil Type: T2
Equivalent References: 02020, 02350, 02010, 02090
EAN: 8033837067542

Cross-References

Tecnoseal Code	Equivalent Tecnoseal References
02070	02053, 02351
02070/A	—
02071	02020, 02350, 02010, 02090

Application and Compatibility

Ford marine engine cooling systems
Compatible cooling-water installations using replaceable zinc pencil anodes
Replacement sacrificial anodes for existing mounting arrangements

Model Selection

Select the required Tecnoseal Ford pencil anode by matching the original zinc body diameter, length and mounting configuration. The 02070 and 02071 models use the T2 configuration with integrated mounting extensions, while the 02070/A has a T4 cylindrical body.

The 02070 and 02070/A both have a 10 mm body diameter but differ in length and mounting design. The 02071 is larger, measuring 14 mm in diameter and 26 mm in length. Verify the existing anode dimensions and mounting arrangement before ordering.

Supply: All three models are supplied as individual zinc anodes without brass mounting plugs.
