Tecnoseal Cummins Brass Plugs for Marine Engine Pencil Anodes

Tecnoseal Cummins Brass Plugs for Marine Engine Pencil Anodes – BSPT & NPT

Tecnoseal Cummins brass plugs are replacement mounting fittings designed for sacrificial pencil anodes used in marine engine heat exchangers and cooling systems. These brass components provide the connection between a compatible zinc pencil anode and its installation point, allowing the mounting plug to be replaced separately from the anode.

The range includes four brass plugs with different external threads, internal connections and head dimensions. The 02043TP and 02044TP models feature 1/2" BSPT tapered external threads, while the 02045TP uses a 3/8" BSPT connection. The 02045-1TP is equipped with a 3/8" NPT tapered thread.

Internal connections include 3/8" UNC and 7/16" UNF threads, along with a 15.50 mm connection dimension on the 02043TP model. The plug head dimensions range from 11 to 22 mm, and individual weights range from 0.02 to 0.06 kg. All four versions are made from brass and supplied without sacrificial zinc anodes.

Key Features

• Manufacturer: Tecnoseal
• Compatible Brand: Cummins
• Product Type: Replacement brass plug for pencil anode
• Material: Brass
• Configuration: Brass plug only
• Available Models: 02043TP, 02044TP, 02045-1TP, 02045TP
• External Threads: 1/2" BSPT, 3/8" BSPT and 3/8" NPT
• Internal Connections: 15.50 mm, 7/16" UNF and 3/8" UNC
• Head Dimensions: 11–22 mm
• Plug Types: 1TP and 2TP
• Weight Range: 0.02–0.06 kg

Available Models and Technical Specifications

Individual Model Specifications

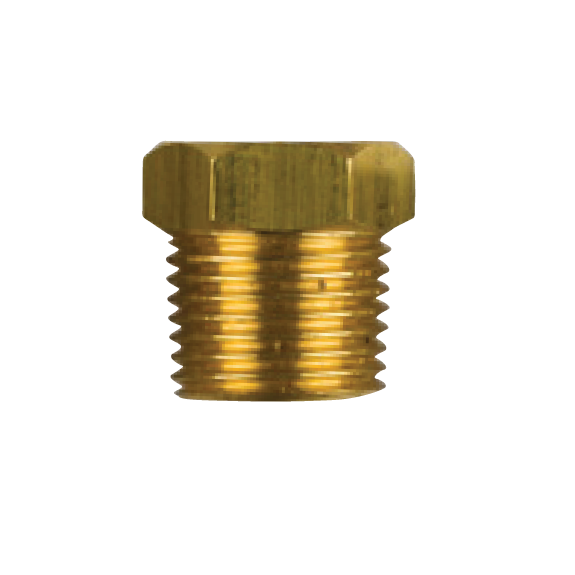

Tecnoseal 02043TP – Cummins Brass Plug 1/2" BSPT

The Tecnoseal 02043TP is a brass mounting plug for Cummins marine engine pencil anodes. It features a 1/2" BSPT tapered external thread and a 15.50 mm internal connection dimension. The plug has a 22 mm head dimension and uses the 2TP configuration. Weighing 0.04 kg (0.09 lbs), it is supplied separately for use with a compatible sacrificial anode.

• Product Code: 02043TP
• Material: Brass
• External Thread (a): 1/2" BSPT (Gas Conico)
• Internal Connection Dimension (b): 15.50 mm (0.61 in)
• Head Dimension (c): 22 mm (0.87 in)
• Weight: 0.04 kg (0.09 lbs)
• Plug Type: 2TP
• EAN: 8033837067382
• Supply: Brass plug only

Tecnoseal 02044TP – Cummins Brass Plug 1/2" BSPT with 7/16" UNF Connection

The Tecnoseal 02044TP combines a 1/2" BSPT tapered external thread with a 7/16" UNF internal connection for a compatible zinc pencil anode. Its brass body has a 22 mm head dimension and weighs 0.06 kg (0.13 lbs). The plug uses the 2TP configuration and is supplied without the sacrificial anode rod.

• Product Code: 02044TP
• Material: Brass
• External Thread (a): 1/2" BSPT (Gas Conico)
• Internal Thread (b): 7/16" UNF
• Head Dimension (c): 22 mm (0.87 in)
• Weight: 0.06 kg (0.13 lbs)
• Plug Type: 2TP
• EAN: 8033837067405
• Supply: Brass plug only

Tecnoseal 02045-1TP – Cummins Brass Plug 3/8" NPT with 3/8" UNC Connection

The Tecnoseal 02045-1TP is a compact brass plug featuring a 3/8" NPT tapered external thread and a 3/8" UNC internal connection for the sacrificial anode. Its 11 mm head dimension and weight of 0.02 kg (0.04 lbs) distinguish it from the larger 02045TP version. The plug uses the 1TP configuration and is supplied individually without a zinc rod.

• Product Code: 02045-1TP
• Material: Brass
• External Thread (a): 3/8" NPT
• Internal Thread (b): 3/8" UNC
• Head Dimension (c): 11 mm (0.43 in)
• Weight: 0.02 kg (0.04 lbs)
• Plug Type: 1TP
• EAN: 8052744984896
• Supply: Brass plug only

Tecnoseal 02045TP – Cummins Brass Plug 3/8" BSPT with 3/8" UNC Connection

The Tecnoseal 02045TP features a 3/8" BSPT tapered external thread and a 3/8" UNC internal connection for mounting a compatible zinc pencil anode. The brass plug has a 19 mm head dimension and weighs 0.04 kg (0.09 lbs). Its 2TP configuration provides a different mounting arrangement from the 02045-1TP model, which uses an NPT external thread.

• Product Code: 02045TP
• Material: Brass
• External Thread (a): 3/8" BSPT (Gas Conico)
• Internal Thread (b): 3/8" UNC
• Head Dimension (c): 19 mm (0.75 in)
• Weight: 0.04 kg (0.09 lbs)
• Plug Type: 2TP
• EAN: 8052744980904
• Supply: Brass plug only

Application

• Cummins marine engine heat exchangers
• Compatible Cummins marine cooling systems
• Replacement mounting fittings for sacrificial pencil anodes

Model Selection

Select the correct Tecnoseal Cummins brass plug by matching the existing external thread, internal anode connection and head dimensions. Although the 02043TP and 02044TP share the same 1/2" BSPT external thread and 22 mm head dimension, their internal connections differ.

The 02045-1TP and 02045TP both feature 3/8" UNC internal connections but use different external threads and head dimensions. The 02045-1TP has a 3/8" NPT external connection and an 11 mm head, while the 02045TP features a 3/8" BSPT external connection and a 19 mm head.

BSPT and NPT tapered pipe threads should not be considered interchangeable solely because their nominal sizes match. Verify the existing fitting specifications before ordering.

Supply: All four models are supplied as individual brass mounting plugs without sacrificial anode rods.
