Tecnoseal Caterpillar Marine Engine Pencil Anodes for Heat Exchangers

Tecnoseal Caterpillar Marine Engine Pencil Anodes for Heat Exchangers – Zinc & Aluminium

Tecnoseal Caterpillar pencil anodes are replacement sacrificial anodes designed for marine engine heat exchangers and cooling systems. They help protect internal metallic components against galvanic corrosion by providing a replaceable sacrificial element in contact with cooling water.

The range includes 17 models with different body diameters, lengths and mounting connections. Zinc versions are available in multiple sizes, alongside the aluminium 02027AL model. Each anode features a cylindrical body with an integrated mounting extension for installation into a compatible existing fitting.

The anodes measure between 9 and 28 mm in diameter and 20 to 76 mm in body length. Mounting extensions range from 8 to 20 mm, with UNC and UNF thread options including 1/4", 5/16", 3/8", 7/16", 5/8" and 3/4". The 02020 and 02021-2 models have mounting dimensions specified in millimetres rather than a named thread.

Selected models also correspond to Osculati replacement references, including 43.228.29, 43.228.30, 43.229.13, 43.228.91, 43.228.00, 43.229.09 and 43.229.08.

Individual weights range from 0.01 to 0.24 kg, depending on the model. These replacement anodes are supplied without brass mounting plugs.

Available Models and Technical Specifications

Individual Model Details

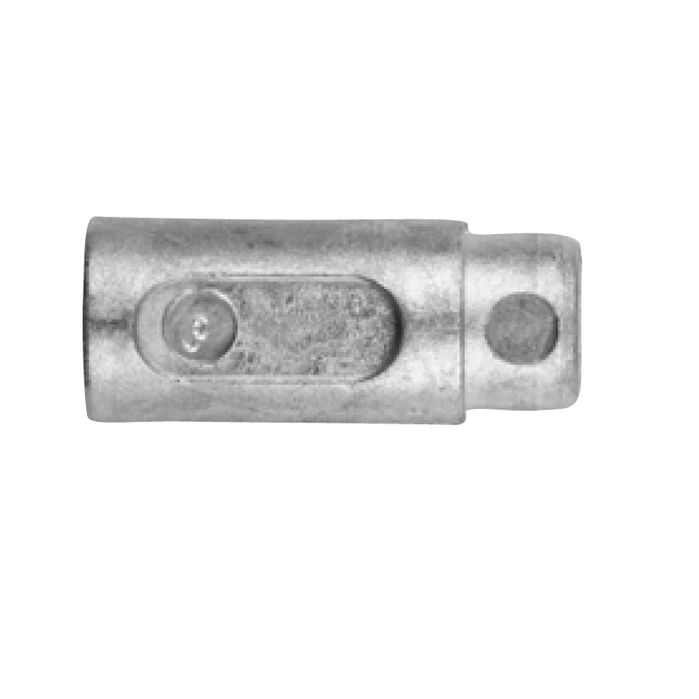

Tecnoseal 02020 – Zinc Pencil Anode Ø14 × 26 mm

The Tecnoseal 02020 has a 14 mm diameter zinc body measuring 26 mm in length. It features an 8 mm mounting extension with a 12 mm connection dimension and weighs 0.03 kg (0.07 lbs). It is also referenced under Tecnoseal codes 02071, 02350, 02010 and 02090. Osculati cross-reference: 43.228.29.

Tecnoseal 02021 – Zinc Pencil Anode Ø10 × 55 mm

The Tecnoseal 02021 features a 10 mm diameter zinc rod measuring 55 mm in length, with a 10 mm threaded extension and a 1/4" UNC connection. It weighs 0.03 kg (0.07 lbs) and corresponds to Caterpillar original part number 6L2283. Osculati cross-reference: 43.228.30.

Tecnoseal 02021/1 – Zinc Pencil Anode Ø9 × 35 mm

The Tecnoseal 02021/1 is a compact replacement anode with a 9 mm diameter body, 35 mm length and 10 mm mounting extension. It uses a 1/4" UNC connection and weighs 0.02 kg (0.04 lbs). It corresponds to original part number 116-7009. Osculati cross-reference: 43.229.13.

Tecnoseal 02021-2 – Zinc Pencil Anode Ø10 × 40 mm

The Tecnoseal 02021-2 has a 10 mm diameter zinc body measuring 40 mm in length and a 10 mm mounting extension. Its mounting dimension b is 8 mm, and the anode weighs 0.02 kg (0.04 lbs).

Tecnoseal 02022 – Zinc Pencil Anode Ø22 × 20 mm

The Tecnoseal 02022 features a short, wide zinc body measuring 22 mm in diameter and 20 mm in length. The 10 mm mounting extension has a 5/8" UNF thread. Weighing 0.07 kg (0.15 lbs), this model corresponds to Caterpillar original part number 6L2016.

Tecnoseal 02023 – Zinc Pencil Anode Ø16 × 76 mm

The Tecnoseal 02023 is an elongated zinc pencil anode measuring 16 mm in diameter and 76 mm in length. It features a 13 mm threaded extension with a 3/8" UNC connection and weighs 0.11 kg (0.24 lbs). It corresponds to original part number 6I2289.

Tecnoseal 02024 – Zinc Pencil Anode Ø16 × 63 mm

The Tecnoseal 02024 measures 16 mm in diameter and 63 mm in length, with a 13 mm threaded extension and a 3/8" UNC connection. It weighs 0.09 kg (0.20 lbs) and corresponds to Caterpillar original part number 6L2288.

Tecnoseal 02024-1 – Zinc Pencil Anode Ø16 × 51 mm

The Tecnoseal 02024-1 features a 16 mm diameter zinc body measuring 51 mm in length. It includes a 13 mm mounting extension with a 3/8" UNC thread and weighs 0.07 kg (0.15 lbs). The corresponding original part number is CA5B9651.

Tecnoseal 02024-2 – Zinc Pencil Anode Ø16 × 41 mm

The Tecnoseal 02024-2 has a 16 mm diameter cylindrical body measuring 41 mm in length. Its mounting extension measures 13 mm and uses a 3/8" UNC thread. The anode weighs 0.06 kg (0.13 lbs).

Tecnoseal 02025 – Zinc Pencil Anode Ø14 × 33 mm

The Tecnoseal 02025 features a 14 mm diameter zinc rod measuring 33 mm in length. It has a 12 mm mounting extension with a 5/16" UNC threaded connection and weighs 0.04 kg (0.09 lbs). Osculati cross-reference: 43.228.91.

Tecnoseal 02026 – Zinc Pencil Anode Ø28 × 54 mm

The Tecnoseal 02026 is the largest anode in this selection, featuring a 28 mm diameter zinc body and a length of 54 mm. Its 20 mm mounting extension has a 3/4" UNC thread. Weighing 0.24 kg (0.53 lbs), it corresponds to Caterpillar original part number 6L2286.

Tecnoseal 02027 – Zinc Pencil Anode Ø12 × 40 mm

The Tecnoseal 02027 features a 12 mm diameter zinc rod measuring 40 mm in length, with a 10 mm extension and a 3/8" UNC threaded connection. It weighs 0.03 kg (0.07 lbs), corresponds to original part number 6L2280 and is also referenced under codes 02003, 02033 and 02052. Osculati cross-reference: 43.228.00.

Tecnoseal 02027AL – Aluminium Pencil Anode Ø12 × 40 mm

The Tecnoseal 02027AL is the aluminium version of the 02027 pencil anode. It shares the same 12 mm body diameter, 40 mm length and 10 mm mounting extension with a 3/8" UNC connection. The aluminium version weighs 0.01 kg (0.02 lbs).

Tecnoseal 02028 – Zinc Pencil Anode Ø16 × 41 mm

The Tecnoseal 02028 features a 16 mm diameter zinc body measuring 41 mm in length, with a 9 mm mounting extension and a 7/16" UNF connection. It weighs 0.06 kg (0.13 lbs) and corresponds to Caterpillar original part number 7E5076. Osculati cross-reference: 43.229.09.

Tecnoseal 02029 – Zinc Pencil Anode Ø12.5 × 38 mm

The Tecnoseal 02029 measures 12.5 mm in diameter and 38 mm in length. Its 10 mm mounting extension uses a 7/16" UNF threaded connection. The zinc anode weighs 0.04 kg (0.09 lbs) and corresponds to original part number 642281.

Tecnoseal 02029BIS – Zinc Pencil Anode Ø10 × 38 mm

The Tecnoseal 02029BIS has a 10 mm diameter zinc body measuring 38 mm in length, with a 10 mm mounting extension and a 1/4" UNC thread. It weighs 0.02 kg (0.04 lbs) and corresponds to Caterpillar original part number 6L3104. Osculati cross-reference: 43.229.08.

Tecnoseal 02029-1 – Zinc Pencil Anode Ø14 × 50 mm

The Tecnoseal 02029-1 features a 14 mm diameter zinc rod measuring 50 mm in length. The mounting extension measures 10 mm and uses a 3/8" UNC thread. The anode weighs 0.06 kg (0.13 lbs).

Original Part Numbers and Cross-References

Reference note: Osculati part numbers are product cross-references, not Caterpillar OEM numbers. The references listed above apply to the specific corresponding Tecnoseal models and should not be assumed to apply to other dimensions or material variants.

Application

• Caterpillar marine engine heat exchangers.
• Compatible Caterpillar marine cooling systems.

Key Features

• Replacement pencil anodes for Caterpillar marine engine heat exchangers.
• Available in zinc and aluminium.
• 17 models with different dimensions and mounting connections.
• Cylindrical sacrificial anode bodies with integrated mounting extensions.
• UNC and UNF threaded connection options.
• Supplied individually without brass mounting plugs.
• Multiple Caterpillar original part references for replacement identification.
• Selected models cross-reference Osculati replacement part numbers.

Model Selection

Select the correct pencil anode by matching the Caterpillar original part number or corresponding Osculati cross-reference, anode body diameter, body length, mounting extension length and thread specification.

Models with similar dimensions may have different thread types or mounting lengths. In particular, the 02024-2 and 02028 versions both measure 16 × 41 mm but use different mounting connections. The 02027 and 02027AL models share the same dimensions and thread but differ in material.

Check the existing anode and mounting plug before ordering to ensure the selected replacement matches the required installation.
