Tecnoseal Baudouin Zinc Pencil Anode Ø20x45 mm with Brass Plug M24x1.5

Tecnoseal Baudouin Zinc Pencil Anode Ø20x45 mm with Brass Plug M24x1.5

The Tecnoseal Baudouin pencil anode range is designed for marine engine heat exchangers, providing sacrificial corrosion protection for internal metallic components. Three configurations are available: a zinc replacement anode, a brass mounting plug and a complete assembly combining both components.

The cylindrical zinc anode measures 20 mm (0.79 in) in diameter and 45 mm (1.77 in) in length. It features a 10 mm (0.39 in) mounting extension with an M8 threaded connection. The matching brass plug has an M24x1.5 external thread, an M8x1.25 internal connection and a 30 mm (1.18 in) head dimension.

The zinc anode weighs 0.01 kg (0.02 lbs), while the brass plug weighs 0.07 kg (0.15 lbs). The complete assembly weighs 0.08 kg (0.18 lbs). All three configurations can be selected individually according to the condition of the existing anode and mounting plug.

Available Models and Technical Specifications

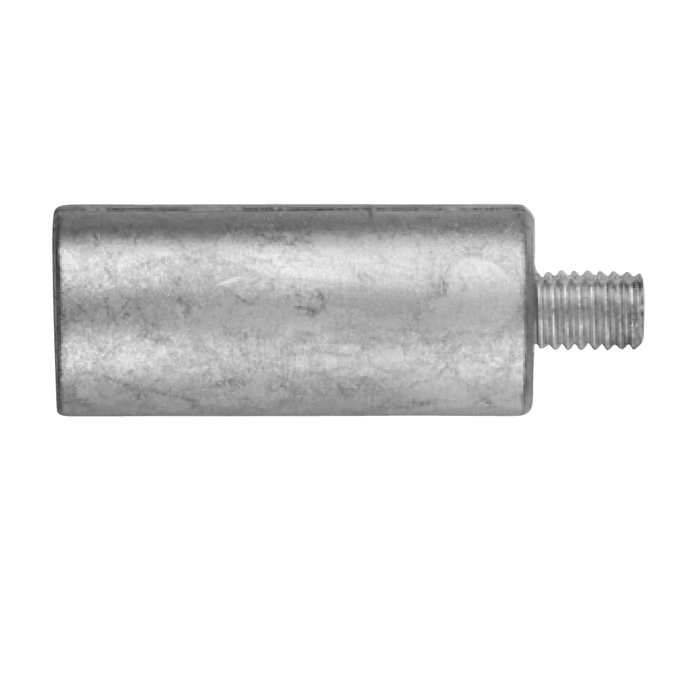

Tecnoseal 02300 – Zinc Pencil Anode Only

The Tecnoseal 02300 is a replacement zinc pencil anode supplied without the brass mounting plug. Its cylindrical body measures 20 mm in diameter and 45 mm in length, with a 10 mm mounting extension and an M8 thread for connection to the existing fitting.

• Product Code: 02300
• Configuration: Anode Only
• Material: Zinc
• Diameter (Ø): 20 mm (0.79 in)
• Body Length (l): 45 mm (1.77 in)
• Mounting Extension (l1): 10 mm (0.39 in)
• Thread (b): M8
• Weight: 0.01 kg (0.02 lbs)
• EAN: 8033837067689

Tecnoseal 02300TP – Brass Plug Only M24x1.5

The Tecnoseal 02300TP is a replacement brass mounting plug supplied without the zinc anode. It features an M24x1.5 external thread for the heat exchanger connection and an M8x1.25 internal thread for the pencil anode. The plug has a 30 mm head dimension and weighs 0.07 kg.

• Product Code: 02300TP
• Configuration: Brass Plug Only
• Material: Brass
• External Thread (a): M24x1.5
• Internal Thread (b): M8x1.25
• Head Dimension (c): 30 mm (1.18 in)
• Plug Type: 2TP
• Weight: 0.07 kg (0.15 lbs)
• EAN: 8033837067696

Tecnoseal 02300T – Complete Zinc Anode with Brass Plug

The Tecnoseal 02300T combines the 20 mm diameter, 45 mm long zinc pencil anode with a brass mounting plug. The complete assembly features an M24x1.5 external thread and a 30 mm plug head dimension, providing a complete replacement for compatible Baudouin marine engine heat exchanger installations.

• Product Code: 02300T
• Configuration: Complete with Brass Plug
• Material: Zinc + Brass
• Zinc Rod Diameter (Ø): 20 mm (0.79 in)
• Zinc Rod Length (l): 45 mm (1.77 in)
• Brass Plug External Thread (a): M24x1.5
• Plug Head Dimension (c): 30 mm (1.18 in)
• Plug Type: 2T
• Weight: 0.08 kg (0.18 lbs)
• EAN: 8052744981635

Application

• Baudouin marine engine heat exchangers

Key Features

• Zinc sacrificial pencil anode for Baudouin marine engines.
• Three available configurations: anode only, brass plug only and complete assembly.
• 20 mm diameter and 45 mm long zinc rod.
• M8 connection for the replacement zinc anode.
• Brass plug with M24x1.5 external thread.
• 30 mm brass plug head dimension.
• Individual replacement of the anode or plug without purchasing unnecessary components.

Model Selection

Select Tecnoseal 02300 when replacing only the zinc sacrificial rod and retaining the existing brass plug. Choose 02300TP when a replacement brass fitting is needed without the anode. Select 02300T for the complete zinc anode and brass plug assembly. Verify the existing thread sizes and dimensions before ordering.
