Tecnoseal AIFO FPT IVECO Brass Plugs for Marine Engine Heat Exchanger Pencil Anodes

Tecnoseal AIFO FPT IVECO Brass Plugs for Marine Engine Heat Exchanger Pencil Anodes

Tecnoseal brass plugs are replacement fittings for pencil anodes used in AIFO, FPT and IVECO marine engine heat exchangers. The range includes 11 configurations with different external threads, internal connections and head dimensions, allowing the correct brass fitting to be selected for the existing heat exchanger installation.

Manufactured from brass, these plugs are designed to hold compatible sacrificial pencil anodes in the heat exchanger. External metric threads range from M10x1 to M28x1.5, while the internal anode connections vary according to the model. Selected versions feature M8 internal threads, and the 02014TP and 02015TP models are supplied without an internal mounting hole.

The brass plugs are available separately from the sacrificial anode rods, making it possible to replace the fitting without purchasing a complete anode assembly. The different configurations weigh between 0.01 and 0.11 kg and feature head dimensions from 13 to 32 mm. Choosing the correct external thread, internal connection and head dimensions is essential for proper compatibility.

Available Models and Technical Specifications

Individual Model Specifications

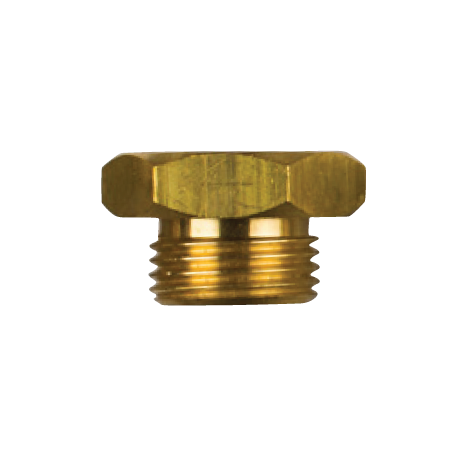

Tecnoseal 02010TP – Brass Plug M18x1.5

The Tecnoseal 02010TP features an M18x1.5 external thread, a 12 mm anode connection dimension and a 24 mm head dimension. It weighs 0.04 kg (0.09 lbs) and uses the 2TP plug configuration.

• Product Code: 02010TP
• External Thread (a): M18x1.5
• Connection Dimension (b): 12 mm
• Head Dimension (c): 24 mm
• Weight: 0.04 kg (0.09 lbs)
• Equivalent Reference: 02090TP

Tecnoseal 02010TP/99 – Brass Plug M18x1.5

The Tecnoseal 02010TP/99 has an M18x1.5 external thread, a 10 mm anode connection dimension and a 24 mm head dimension. It weighs 0.04 kg (0.09 lbs) and corresponds to original part number 8053626.

• Product Code: 02010TP/99
• External Thread (a): M18x1.5
• Connection Dimension (b): 10 mm
• Head Dimension (c): 24 mm
• Weight: 0.04 kg (0.09 lbs)
• Original Part Number: 8053626
• Equivalent References: 02353TP, 02018-1TP

Tecnoseal 02011TP – Brass Plug M28x1.5

The Tecnoseal 02011TP is a larger brass plug featuring an M28x1.5 external thread, a 14 mm anode connection dimension and a 32 mm head dimension. It weighs 0.09 kg (0.20 lbs).

• Product Code: 02011TP
• External Thread (a): M28x1.5
• Connection Dimension (b): 14 mm
• Head Dimension (c): 32 mm
• Weight: 0.09 kg (0.20 lbs)
• Plug Type: 2TP

Tecnoseal 02011TP/98 – Brass Plug M28x1.5

The Tecnoseal 02011TP/98 features an M28x1.5 external thread and a 14 mm anode connection dimension. Its 27 mm head dimension and 3TP plug configuration distinguish it from the standard 02011TP version. It weighs 0.11 kg (0.24 lbs).

• Product Code: 02011TP/98
• External Thread (a): M28x1.5
• Connection Dimension (b): 14 mm
• Head Dimension (c): 27 mm
• Weight: 0.11 kg (0.24 lbs)
• Plug Type: 3TP

Tecnoseal 02012TP – Brass Plug M16x1.5

The Tecnoseal 02012TP features an M16x1.5 external thread, a 10 mm anode connection dimension and a 24 mm head dimension. It weighs 0.04 kg (0.09 lbs).

• Product Code: 02012TP
• External Thread (a): M16x1.5
• Connection Dimension (b): 10 mm
• Head Dimension (c): 24 mm
• Weight: 0.04 kg (0.09 lbs)

Tecnoseal 02012-1TP – Brass Plug M18x1.5 / M8

The Tecnoseal 02012-1TP combines an M18x1.5 external thread with an M8 internal anode connection. It features a 23 mm head dimension and weighs 0.04 kg (0.09 lbs). The plug corresponds to original part number 8093596.

• Product Code: 02012-1TP
• External Thread (a): M18x1.5
• Internal Thread (b): M8
• Head Dimension (c): 23 mm
• Weight: 0.04 kg (0.09 lbs)
• Original Part Number: 8093596
• Equivalent References: 01320TP, 02029-3TP, 08402TP

Tecnoseal 02013TP – Brass Plug M12x1.5

The Tecnoseal 02013TP is a compact brass plug with an M12x1.5 external thread, a 7 mm anode connection dimension and a 17 mm head dimension. It weighs 0.02 kg (0.04 lbs).

• Product Code: 02013TP
• External Thread (a): M12x1.5
• Connection Dimension (b): 7 mm
• Head Dimension (c): 17 mm
• Weight: 0.02 kg (0.04 lbs)

Tecnoseal 02014TP – Brass Plug M10x1

The Tecnoseal 02014TP features an M10x1 external thread and a 13 mm head dimension. It is supplied without an internal mounting hole and weighs 0.01 kg (0.02 lbs).

• Product Code: 02014TP
• External Thread (a): M10x1
• Internal Connection (b): No hole
• Head Dimension (c): 13 mm
• Weight: 0.01 kg (0.02 lbs)

Tecnoseal 02015TP – Brass Plug M10x1.25

The Tecnoseal 02015TP is a compact brass plug with an M10x1.25 external thread and a 13 mm head dimension. It is supplied without an internal mounting hole and weighs 0.01 kg (0.02 lbs).

• Product Code: 02015TP
• External Thread (a): M10x1.25
• Internal Connection (b): No hole
• Head Dimension (c): 13 mm
• Weight: 0.01 kg (0.02 lbs)

Tecnoseal 02017TP – Brass Plug M18x1.5 / M8

The Tecnoseal 02017TP features an M18x1.5 external thread and an M8 internal anode connection. It has a 22 mm head dimension and weighs 0.04 kg (0.09 lbs).

• Product Code: 02017TP
• External Thread (a): M18x1.5
• Internal Thread (b): M8
• Head Dimension (c): 22 mm
• Weight: 0.04 kg (0.09 lbs)
• Equivalent References: 02060TP, 02061TP

Tecnoseal 02018-1TP – Brass Plug M18x1.5

The Tecnoseal 02018-1TP features an M18x1.5 external thread, a 12 mm anode connection dimension and a 24 mm head dimension. Weighing 0.04 kg (0.09 lbs), it corresponds to original part number 8053626.

• Product Code: 02018-1TP
• External Thread (a): M18x1.5
• Connection Dimension (b): 12 mm
• Head Dimension (c): 24 mm
• Weight: 0.04 kg (0.09 lbs)
• Original Part Number: 8053626
• Equivalent References: 02010TP/99, 02353TP

Application

• AIFO marine engine heat exchangers
• FPT marine engine heat exchangers
• IVECO marine engine heat exchangers

Key Features

• Brass replacement plugs for marine engine heat exchanger pencil anodes.
• 11 available configurations with different mounting dimensions.
• External metric threads from M10x1 to M28x1.5.
• Selected models with M8 internal anode connections.
• Available with 2TP and 3TP plug configurations.
• Supplied individually without sacrificial anode rods.

Model Selection

Select the replacement plug by matching the external thread, anode connection dimension and head size with the existing fitting. Models with similar external threads may have different internal connections or head dimensions. Check the Tecnoseal product code and original part reference before ordering.
