ID
1405888
$ 28.23
1-2 weeks delivery time
-
+

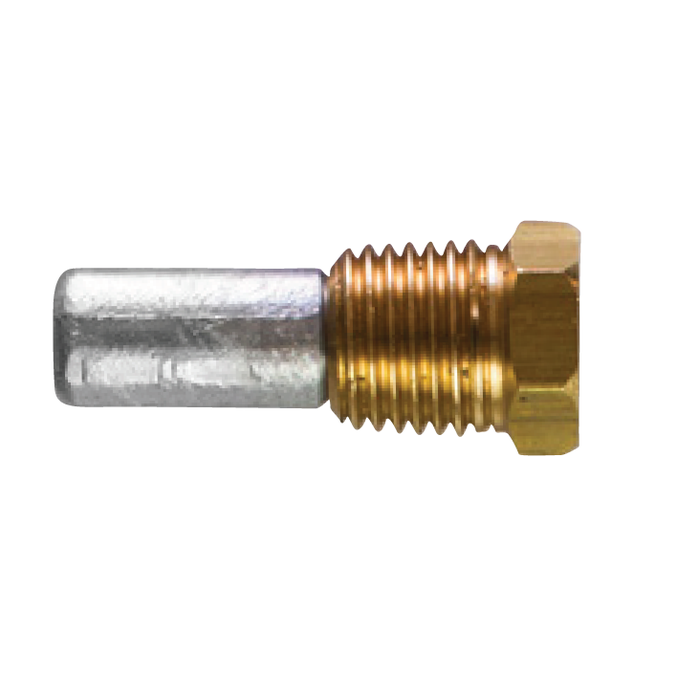

The Tecnoseal 02800T is a zinc pencil anode complete with a brass mounting plug, designed to protect Beta Marine engine heat exchangers against internal galvanic corrosion. Corresponding to Beta Marine original part number 209-61840, it features a zinc rod measuring 9.5 mm (0.37 in) in diameter and 20 mm (0.79 in) in length. The brass plug has a 1/4-inch BSPT tapered external thread and a 17 mm (0.67 in) hexagonal head for installation and removal. Weighing 0.03 kg (0.07 lbs), the complete assembly provides a convenient replacement for compatible Beta Marine cooling systems.
- Description
- Ask a Question
-
Tecnoseal 209-61840 Beta Marine Zinc Pencil Anode with Brass Plug 1/4 BSPT
The Tecnoseal 02800T is a zinc sacrificial pencil anode complete with a brass mounting plug, designed for Beta Marine engine heat exchangers. Corresponding to Beta Marine original part number 209-61840, it helps protect internal metallic cooling system components against galvanic corrosion.
The assembly combines a cylindrical zinc anode measuring 9.5 mm (0.37 in) in diameter and 20 mm (0.79 in) in length with a threaded brass plug. The plug features a 1/4-inch BSPT tapered external thread and a 17 mm (0.67 in) hexagonal head, allowing installation and removal using a suitable wrench.
Weighing 0.03 kg (0.07 lbs), the complete zinc and brass assembly is intended as a replacement for compatible Beta Marine heat exchanger installations. The sacrificial zinc element helps protect internal metal surfaces exposed to cooling water.
Technical Specifications
Manufacturer Tecnoseal Product Code 02800T Product Type Pencil Sacrificial Anode with Brass Plug Compatible Brand Beta Marine Original Part Number 209-61840 Application Marine Engine Heat Exchanger Anode Material Zinc Plug Material Brass Configuration Complete with Brass Plug Weight 0.03 kg (0.07 lbs) Zinc Rod Diameter (Ø) 9.5 mm (0.37 in) Zinc Rod Length (l) 20 mm (0.79 in) Plug External Thread (a) 1/4" BSPT Hex Head Dimension (c) 17 mm (0.67 in) Plug Type 2T EAN 8052744984858
Dimensions and Mounting
- Zinc Rod Diameter (Ø): 9.5 mm (0.37 in)
- Zinc Rod Length (l): 20 mm (0.79 in)
- Brass Plug External Thread (a): 1/4" BSPT (tapered pipe thread)
- Hexagonal Head Dimension (c): 17 mm (0.67 in)
- Construction: Cylindrical zinc anode with threaded brass mounting plug
- Configuration: Complete assembly
Application
- Beta Marine engine heat exchangers
- Compatible Beta Marine cooling systems using original part number 209-61840
OEM and Product Cross-References
- Beta Marine OEM: 209-61840
- Tecnoseal: 02800T
Key Features
- Zinc sacrificial pencil anode for Beta Marine heat exchangers.
- Complete assembly supplied with brass mounting plug.
- 9.5 mm diameter and 20 mm long zinc rod.
- 1/4" BSPT tapered external thread.
- 17 mm hexagonal plug head.
- Corresponds to Beta Marine original part number 209-61840.
- Helps protect internal cooling system metal components against galvanic corrosion.
Compatibility: Intended for Beta Marine engine heat exchangers corresponding to original part number 209-61840. Verify the existing anode dimensions and 1/4" BSPT thread before ordering.
-
