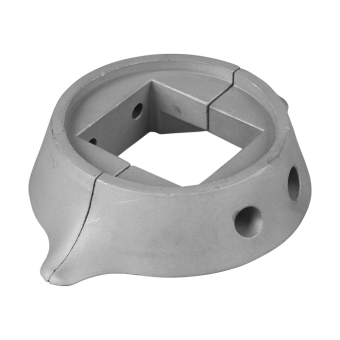

Tecnoseal 9135034 Lombardini Saildrive Split Collar Anode

ID 1404418

$ 88.43

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

310 g
1070 g

The Tecnoseal Lombardini Saildrive Split Collar Anode is a sacrificial anode designed for Lombardini saildrive installations, corresponding to original part number 9135034. Available in zinc (01553), aluminium (01553AL) and magnesium (01553MG), it features a split collar construction with mounting holes for corrosion protection of compatible saildrive components. According to the Tecnoseal catalogue, its dimensions are 152 mm overall length (l), 58 mm (b), 48 mm (c), 33 mm height (h) and 94 mm (l1), with diameter Ø of 83 mm and mounting diameters Ø1 of 7 mm and Ø2 of 11.50 mm. The zinc version weighs 1.07 kg (1,070 g), the aluminium version 0.42 kg (420 g) and the magnesium version 0.31 kg (310 g). All three variants share identical dimensions and mounting configurations.

Description
Ask a Question

Tecnoseal 9135034 Lombardini Saildrive Split Collar Anode – Zinc, Aluminium or Magnesium

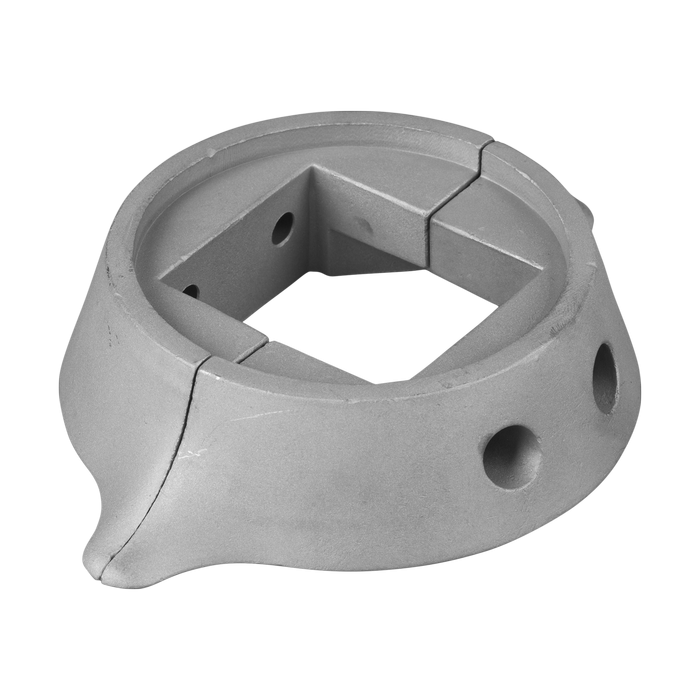

The Tecnoseal Lombardini Saildrive Split Collar Anode is a sacrificial anode designed for Lombardini saildrive installations. It helps protect compatible metallic saildrive components against galvanic corrosion. According to the Tecnoseal catalogue, it corresponds to original part number 9135034.

The anode features a split collar construction with a central opening and mounting holes. It measures 152 mm in overall length (l) and 33 mm in height (h), with additional dimensions b = 58 mm, c = 48 mm and l1 = 94 mm. The catalogue specifies diameter Ø = 83 mm, Ø1 = 7 mm and Ø2 = 11.50 mm. Three material versions are available: zinc (01553), aluminium (01553AL) and magnesium (01553MG). All variants have identical dimensions but different weights.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Split Collar Anode
Application	Lombardini Saildrive
Original Part Number	9135034
Available Materials	Zinc, Aluminium, Magnesium
Design	Split Collar with Central Opening and Mounting Holes

Available Versions

Tecnoseal Part Number	Material	Weight
01553 (Osculati 43.750.05)	Zinc	1.07 kg (2.36 lbs)
01553AL	Aluminium	0.42 kg (0.93 lbs)
01553MG	Magnesium	0.31 kg (0.68 lbs)

Dimensions

Catalogue Dimension	Measurement
Overall Length (l)	152 mm (5.98")
Dimension (b)	58 mm (2.28")
Dimension (c)	48 mm (1.89")
Height (h)	33 mm (1.30")
Dimension (l1)	94 mm (3.70")
Diameter (Ø)	83 mm (3.27")
Diameter (Ø1)	7 mm (0.28")
Diameter (Ø2)	11.50 mm (0.45")

OEM and Product References

Lombardini Original Part Number: 9135034
Tecnoseal 01553: Zinc version
Tecnoseal 01553AL: Aluminium version
Tecnoseal 01553MG: Magnesium version

Key Features

Sacrificial split collar anode for Lombardini saildrive installations.
Original part number: 9135034.
Available in zinc, aluminium and magnesium versions.
Split collar design with a central opening and mounting holes.
Overall length: 152 mm.
Height: 33 mm.
Additional dimensions: b = 58 mm, c = 48 mm, l1 = 94 mm.
Diameter Ø: 83 mm.
Mounting diameters: Ø1 = 7 mm and Ø2 = 11.50 mm.
Identical dimensions across all three material versions.
Zinc version: Tecnoseal 01553, weight 1,070 g.
Aluminium version: Tecnoseal 01553AL, weight 420 g.
Magnesium version: Tecnoseal 01553MG, weight 310 g.
