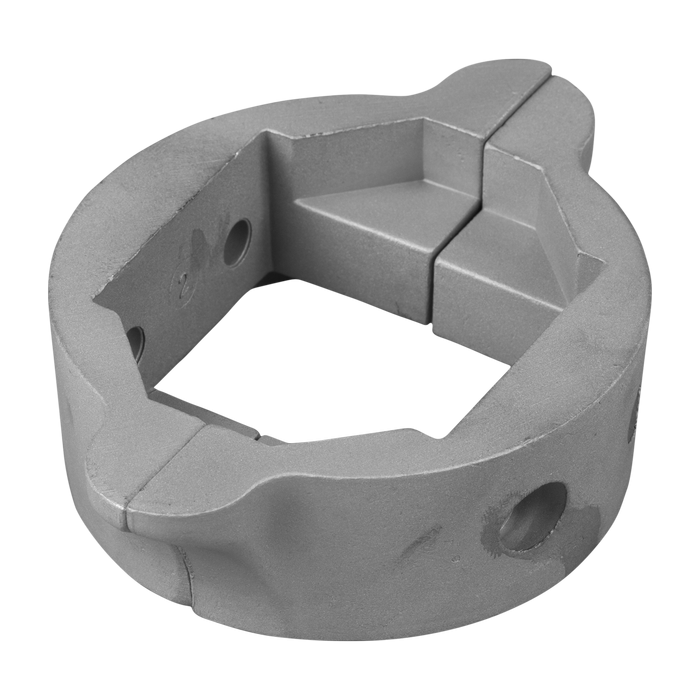

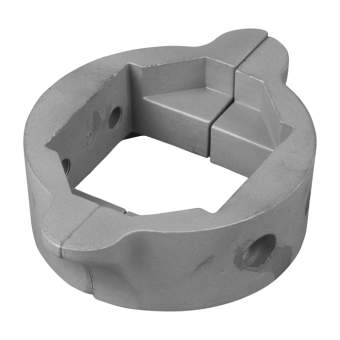

Tecnoseal 9135033 Lombardini Saildrive Split Collar Anode

ID 1404415

$ 81.39

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

600 g
180 g

The Tecnoseal Lombardini Saildrive Split Collar Anode is a sacrificial anode designed for Lombardini saildrive installations, corresponding to original part number 9135033. Available in zinc (01552), aluminium (01552AL) and magnesium (01552MG), it features a split collar design with mounting holes for installation around the saildrive assembly. The anode measures 121 mm in overall length (l), 58 mm (b), 47 mm (c) and 33 mm in height (h), with an additional dimension (l1) of 88 mm, diameter (Ø) of 81 mm and mounting diameters of 7 mm (Ø1) and 11.5 mm (Ø2). The zinc version weighs 0.60 kg (600 g), the aluminium version 0.23 kg (230 g) and the magnesium version 0.18 kg (180 g). All three versions share the same catalogue dimensions and provide sacrificial corrosion protection for compatible saildrive components.

Description
Ask a Question

Tecnoseal 9135033 Lombardini Saildrive Split Collar Anode – Zinc, Aluminium or Magnesium

The Tecnoseal Lombardini Saildrive Split Collar Anode is a sacrificial anode designed for Lombardini saildrive installations. It helps protect compatible metallic saildrive components against galvanic corrosion. According to the Tecnoseal catalogue, it corresponds to original part number 9135033.

The anode features a split collar design with an opening for positioning around the saildrive assembly and mounting holes for attachment. Its overall length (l) is 121 mm, height (h) is 33 mm, and additional dimensions include b = 58 mm, c = 47 mm and l1 = 88 mm. The catalogue also specifies Ø = 81 mm, Ø1 = 7 mm and Ø2 = 11.50 mm. Three material versions are available: zinc (01552), aluminium (01552AL) and magnesium (01552MG). All versions share the same catalogue dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Split Collar Anode
Application	Lombardini Saildrive
Original Part Number	9135033
Available Materials	Zinc, Aluminium, Magnesium
Design	Split Collar with Mounting Holes

Available Versions

Tecnoseal Part Number	Material	Weight
01552 (Osculati 43.750.04)	Zinc	0.60 kg (1.32 lbs)
01552AL	Aluminium	0.23 kg (0.51 lbs)
01552MG	Magnesium	0.18 kg (0.40 lbs)

Dimensions

Catalogue Dimension	Measurement
Overall Length (l)	121 mm (4.76")
Dimension (b)	58 mm (2.28")
Dimension (c)	47 mm (1.85")
Height (h)	33 mm (1.30")
Dimension (l1)	88 mm (3.46")
Diameter (Ø)	81 mm (3.19")
Diameter (Ø1)	7 mm (0.28")
Diameter (Ø2)	11.50 mm (0.45")

OEM and Product References

Lombardini Original Part Number: 9135033
Tecnoseal 01552: Zinc version
Tecnoseal 01552AL: Aluminium version
Tecnoseal 01552MG: Magnesium version

Key Features

Sacrificial split collar anode for Lombardini saildrive installations.
Original equipment reference: 9135033.
Available in zinc, aluminium and magnesium versions.
Split collar construction with mounting holes.
Overall length: 121 mm.
Height: 33 mm.
Catalogue dimensions: b = 58 mm, c = 47 mm, l1 = 88 mm.
Diameter Ø: 81 mm.
Mounting diameters: Ø1 = 7 mm and Ø2 = 11.50 mm.
Identical catalogue dimensions for all three material versions.
Zinc version: Tecnoseal 01552, weight 600 g.
Aluminium version: Tecnoseal 01552AL, weight 230 g.
Magnesium version: Tecnoseal 01552MG, weight 180 g.
