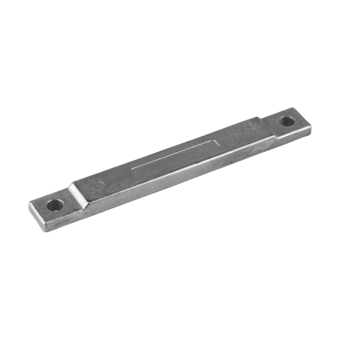

Tecnoseal 8M0012083 Mercury Racing Trim Steering Cylinder Anode

ID 1404558

$ 41.39

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

90 g
130 g
340 g

The Tecnoseal 00837 Series is a sacrificial trim steering cylinder anode designed for Mercury Racing marine applications, corresponding to OEM part number 8M0012083. Available in zinc (00837), aluminium (00837AL) and magnesium (00837MG), it helps protect compatible trim and steering components against galvanic corrosion. The elongated bar anode measures 194 mm (7.64") in length, 24 mm (0.94") in width and 12 mm (0.47") in height, with an additional height (h1) of 9 mm (0.35"), mounting hole spacing (i) of 167 mm (6.57") and hole diameter (Ø) of 9 mm (0.35"). The zinc version weighs 0.34 kg (340 g / 0.75 lbs), aluminium 0.13 kg (130 g / 0.29 lbs) and magnesium 0.09 kg (90 g / 0.20 lbs). All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 8M0012083 Mercury Racing Trim Steering Cylinder Anode

The Tecnoseal 00837 Series consists of sacrificial trim steering cylinder anodes designed for Mercury Racing marine applications. These anodes help protect compatible submerged trim and steering components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding original part number is 8M0012083.

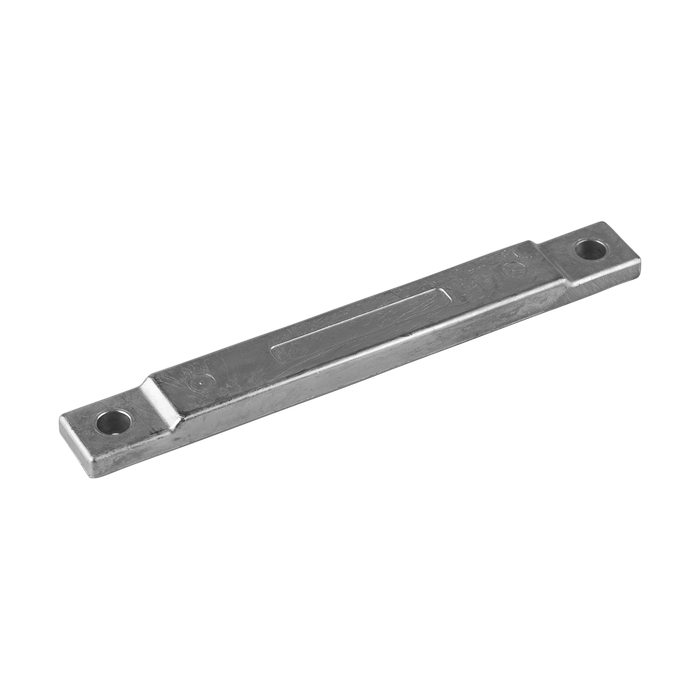

The anode features an elongated rectangular bar with two mounting holes, one at each end, and a recessed central section. It measures 194 mm (7.64") in length (l), 24 mm (0.94") in width (a) and 12 mm (0.47") in height (h). The additional height (h1) is 9 mm (0.35"), mounting hole spacing (i) is 167 mm (6.57"), and hole diameter (Ø) is 9 mm (0.35"). Zinc, aluminium and magnesium versions are available with identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00837
Product Type	Trim Steering Cylinder Anode
Application	Mercury Racing
OEM Part Number	8M0012083
Available Materials	Zinc, Aluminium, Magnesium
Mounting	Two Mounting Holes

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
00837	Zinc	43.424.20	0.34 kg (0.75 lbs)
00837AL	Aluminium	43.424.21	0.13 kg (0.29 lbs)
00837MG	Magnesium	Not specified	0.09 kg (0.20 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Length (l)	194 mm (7.64")
Width (a)	24 mm (0.94")
Height (h)	12 mm (0.47")
Additional Height (h1)	9 mm (0.35")
Mounting Hole Spacing (i)	167 mm (6.57")
Hole Diameter (Ø)	9 mm (0.35")
