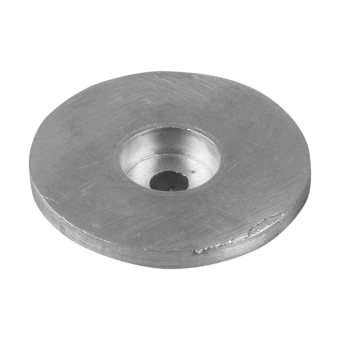

Tecnoseal 6E8-42251-00 Yamaha 9.9–15 HP / F8–F9.9 Round Plate Anode

Name: Tecnoseal 6E8-42251-00 Yamaha 9.9–15 HP / F8–F9.9 Round Plate Anode
SKU: Tecnoseal 01106

ID 1405425

$ 17.86

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

50 g
10 g

The Tecnoseal 01106 series consists of round sacrificial plate anodes designed for Yamaha 9.9–15 HP two-stroke and F8/F9.9 four-stroke outboard motors up to 1993, replacing OEM part number 6E8-42251-00. Each anode features a circular, low-profile body with a recessed central mounting hole, providing corrosion protection for compatible submerged outboard components. It measures 45 mm in diameter and 11 mm in height, with a 15 mm upper recess diameter (Ø1) and a 6.5 mm mounting hole diameter (Ø2). Available in zinc (01106, 50 g) and magnesium (01106MG, 10 g), both versions share the same dimensions and mounting configuration, allowing selection according to the vessel's operating water conditions.

Description
Ask a Question

Tecnoseal 6E8-42251-00 Yamaha 9.9–15 HP / F8–F9.9 Round Plate Anode

The Tecnoseal 01106 series consists of round sacrificial plate anodes designed for Yamaha 9.9–15 HP two-stroke and F8/F9.9 four-stroke outboard motors up to 1993. Compatible with Yamaha OEM part number 6E8-42251-00, these replacement anodes help protect submerged metallic components of the outboard motor against galvanic corrosion.

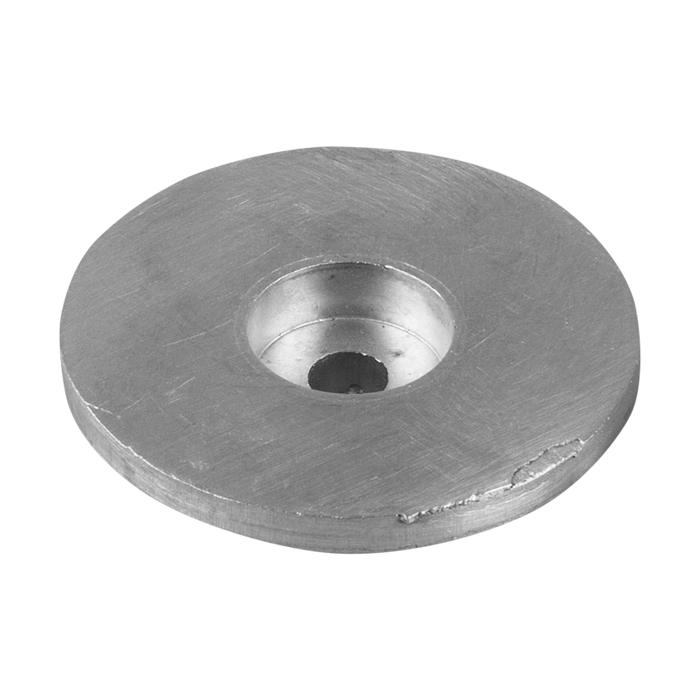

The anode features a compact circular design with a recessed central mounting hole. It measures 45 mm (1.77 in) in outside diameter and 11 mm (0.43 in) in height, with a 15 mm (0.59 in) recess diameter and a 6.5 mm (0.26 in) mounting hole. Zinc and magnesium versions are available, both sharing the same dimensions and mounting configuration. The zinc version weighs 50 g, while the magnesium version weighs 10 g, allowing the appropriate material to be selected for the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Round Plate Anode
Compatible Manufacturer	Yamaha
Compatible Two-Stroke Engines	9.9–15 HP
Compatible Four-Stroke Engines	F8 / F9.9
Model Years	Up to 1993
Yamaha OEM Reference	6E8-42251-00
Available Materials	Zinc, Magnesium
Mounting Configuration	Recessed central mounting hole

Available Versions

Tecnoseal Code	Material	Weight	EAN
01106	Zinc	0.05 kg (0.11 lbs)	8033837065111
01106MG	Magnesium	0.01 kg (0.02 lbs)	8058774838352

Dimensions and Mounting Specifications

Height (h)	11 mm (0.43 in)
Outside Diameter (Ø)	45 mm (1.77 in)
Recess Diameter (Ø1)	15 mm (0.59 in)
Mounting Hole Diameter (Ø2)	6.50 mm (0.26 in)

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Two-Stroke Models: 9.9–15 HP
Four-Stroke Models: F8 / F9.9
Production Period: Up to 1993
Yamaha OEM Part Number: 6E8-42251-00
Zinc Version: Tecnoseal 01106
Magnesium Version: Tecnoseal 01106MG

Key Features

Round sacrificial plate anode for compatible Yamaha outboard motors.
Designed for Yamaha 9.9–15 HP two-stroke and F8/F9.9 four-stroke engines up to 1993.
Replacement for Yamaha OEM part number 6E8-42251-00.
Helps protect submerged metallic components against galvanic corrosion.
Compact circular construction with a recessed central mounting hole.
Available in zinc and magnesium versions.
Outside diameter: 45 mm.
Overall height: 11 mm.
Recess diameter: 15 mm.
Mounting hole diameter: 6.5 mm.

Compatibility Note: Verify the Yamaha outboard model, production year, OEM reference and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
