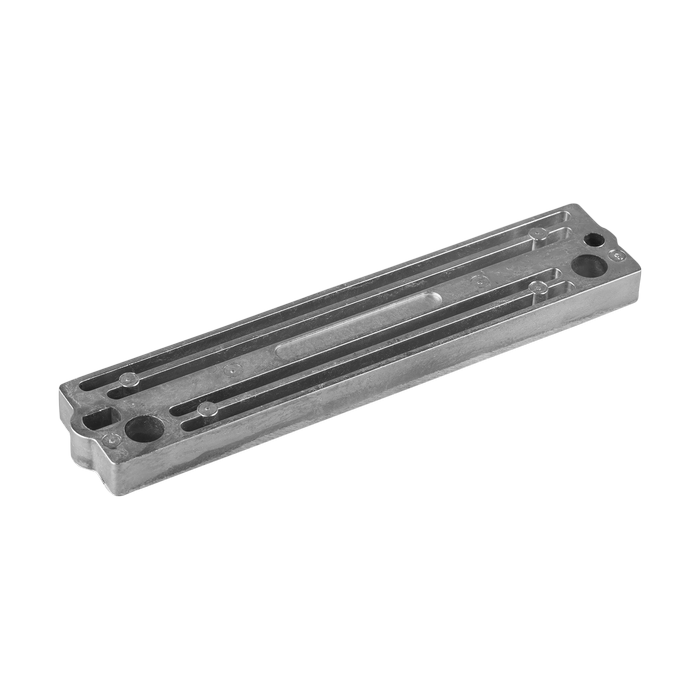

The Tecnoseal 01214 series includes sacrificial stern bracket anodes for Suzuki DF60-DF300 (2001-2010) and DT115-DT140 (1996-2001) outboard engines, corresponding to Suzuki OEM part numbers 55321-94900 and 55320-94900. Each anode features an elongated rectangular body with mounting holes, measuring 196 mm in length (l), 40 mm in width (a) and 14 mm in height (h). Additional dimensions include a 6.5x11 mm slot (b), mounting distances i = 176 mm and i1 = 160 mm, a 6.50 mm hole diameter (Ø) and a 12 mm recess diameter (Ø2). Available in zinc (01214, 0.51 kg), aluminium (01214AL, 0.20 kg) and magnesium (01214MG, 0.13 kg). Additional Tecnoseal references: 00840, 00926 and 01254.
- Description
- Ask a Question
-

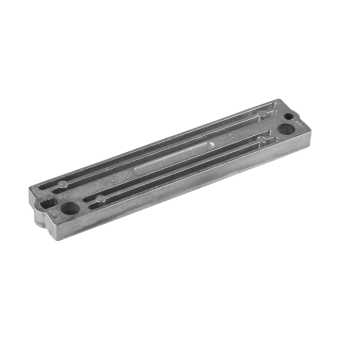

Tecnoseal 55321-94900 Suzuki DF60-DF300 Stern Bracket Anode 196x40x14 mm
The Tecnoseal 01214 series includes sacrificial stern bracket anodes designed for Suzuki DF60-DF300 outboard engines manufactured from 2001 to 2010 and Suzuki DT115-DT140 engines manufactured from 1996 to 2001. These anodes correspond to Suzuki OEM part numbers 55321-94900 and 55320-94900 and help protect compatible metallic outboard stern bracket components against galvanic corrosion.
Each anode features an elongated rectangular body with mounting holes and longitudinal grooves. It measures 196 mm in overall length, 40 mm in width and 14 mm in height. The mounting dimensions include a 6.5 x 11 mm elongated hole (b), distances i = 176 mm and i1 = 160 mm, a 6.50 mm hole diameter (Ø) and a 12 mm mounting recess diameter (Ø2). Three material versions are available with identical dimensions.
Technical Specifications
Manufacturer Tecnoseal Product Type Stern Bracket Anode Engine Manufacturer Suzuki Compatible DF Engines DF60-DF300 (2001-2010) Compatible DT Engines DT115-DT140 (1996-2001) Suzuki OEM References 55321-94900, 55320-94900 Available Materials Zinc, Aluminium, Magnesium Length (l) 196 mm (7.72 in) Width (a) 40 mm (1.57 in) Mounting Slot (b) 6.5 x 11 mm (0.26 x 0.43 in) Height (h) 14 mm (0.55 in) Mounting Distance (i) 176 mm (6.93 in) Mounting Distance (i1) 160 mm (6.30 in) Mounting Hole Diameter (Ø) 6.50 mm (0.26 in) Mounting Recess Diameter (Ø2) 12 mm (0.47 in)
Available Variants
Tecnoseal Code Material Weight 01214 Zinc 0.51 kg (1.12 lbs) 01214AL Aluminium 0.20 kg (0.44 lbs) 01214MG Magnesium 0.13 kg (0.29 lbs)
Compatibility and References
- Engine Manufacturer: Suzuki
- DF Engine Range: DF60-DF300 (2001-2010)
- DT Engine Range: DT115-DT140 (1996-2001)
- Application: Outboard Engine Stern Bracket
- Suzuki OEM Reference: 55321-94900
- Suzuki OEM Reference: 55320-94900
- Zinc Version: Tecnoseal 01214
- Aluminium Version: Tecnoseal 01214AL
- Magnesium Version: Tecnoseal 01214MG
- Additional Tecnoseal References: 00840, 00926, 01254
Key Features
- Sacrificial stern bracket anode for compatible Suzuki DF and DT outboard engines.
- Available in zinc, aluminium and magnesium.
- Helps protect metallic stern bracket components against galvanic corrosion.
- Elongated rectangular body with longitudinal grooves.
- Overall dimensions: 196 x 40 x 14 mm.
- Mounting slot: 6.5 x 11 mm.
- Mounting distances: 176 mm and 160 mm.
- Mounting hole diameter: 6.50 mm.
- Mounting recess diameter: 12 mm.
- Identical dimensions across all three material versions.
- Corresponds to Suzuki OEM part numbers 55321-94900 and 55320-94900.
-
