Tecnoseal 55125-90J01 Suzuki DF60-DF140 Trim Tab Anode Ø85 mm

ID 1405127

$ 47.05

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

60 g
90 g
220 g

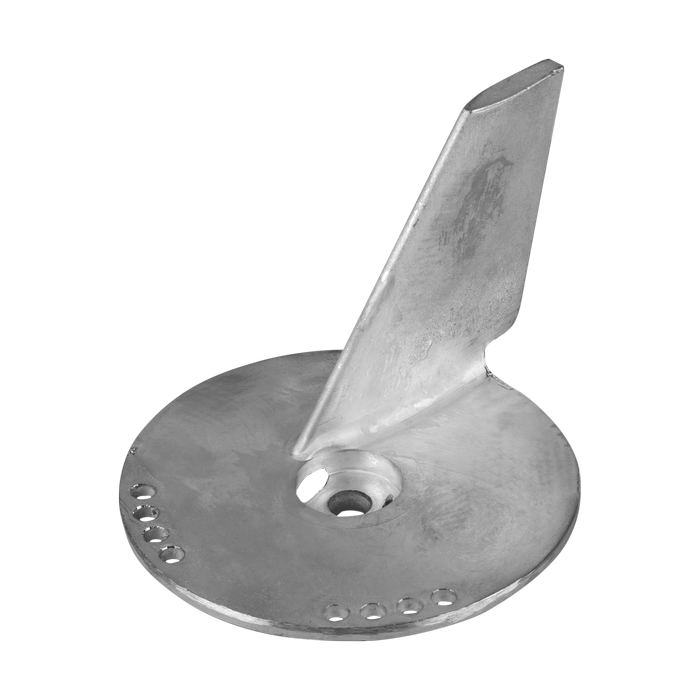

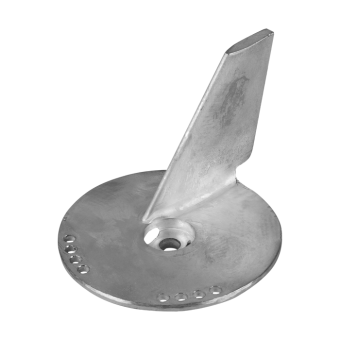

The Tecnoseal 01215 series includes sacrificial trim tab anodes designed for Suzuki DF60-DF140 outboard engines, corresponding to Suzuki OEM part number 55125-90J01. Each anode features a circular mounting base with an integrated vertical steering fin, measuring 113 mm in overall length (l), 59 mm in height (h) and 85 mm in base diameter (Ø), with an 8.5 mm mounting hole diameter (Ø1). Available in zinc (01215, 0.22 kg), aluminium (01215AL, 0.09 kg) and magnesium (01215MG, 0.06 kg), these anodes help protect compatible submerged outboard components against galvanic corrosion. Additional Tecnoseal reference: 00927.

Description
Ask a Question

Tecnoseal 55125-90J01 Suzuki DF60-DF140 Trim Tab Anode Ø85 mm

The Tecnoseal 01215 series includes sacrificial trim tab anodes designed for Suzuki DF60-DF140 outboard engines. These anodes correspond to Suzuki OEM part number 55125-90J01 and help protect compatible submerged metallic outboard components against galvanic corrosion. The three material versions are cross-referenced with Osculati 43.272.87, 43.272.88 and 43.272.89.

Each anode features a circular mounting base with an integrated vertical steering fin. It measures 113 mm in overall length, 59 mm in height and 85 mm in base diameter, with an 8.5 mm central mounting hole. Available in zinc, aluminium and magnesium, all three versions share identical dimensions but have different weights.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Engine Manufacturer	Suzuki
Compatible Engines	DF60-DF140
Suzuki OEM Part Number	55125-90J01
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	113 mm (4.45 in)
Overall Height (h)	59 mm (2.32 in)
Base Diameter (Ø)	85 mm (3.35 in)
Mounting Hole Diameter (Ø1)	8.5 mm (0.33 in)

Available Variants

Tecnoseal Code	Material	Weight	Osculati Reference
01215	Zinc	0.22 kg (0.49 lbs)	43.272.87
01215AL	Aluminium	0.09 kg (0.20 lbs)	43.272.88
01215MG	Magnesium	0.06 kg (0.13 lbs)	43.272.89

Compatibility and References

Engine Manufacturer: Suzuki
Compatible Models: DF60-DF140
Application: Outboard Engine Trim Tab
Suzuki OEM Reference: 55125-90J01
Zinc Version: Tecnoseal 01215 / Osculati 43.272.87
Aluminium Version: Tecnoseal 01215AL / Osculati 43.272.88
Magnesium Version: Tecnoseal 01215MG / Osculati 43.272.89
Additional Tecnoseal Reference: 00927

Key Features

Sacrificial trim tab anode for Suzuki DF60-DF140 outboard engines.
Available in zinc, aluminium and magnesium.
Helps protect compatible submerged metallic outboard components against galvanic corrosion.
Circular mounting base with integrated vertical steering fin.
Overall length: 113 mm.
Overall height: 59 mm.
Base diameter: 85 mm.
Central mounting hole diameter: 8.5 mm.
Identical dimensions across all three material versions.
Corresponds to Suzuki OEM part number 55125-90J01.
Osculati cross-references: 43.272.87 (zinc), 43.272.88 (aluminium), 43.272.89 (magnesium).
