The Tecnoseal 00934 is a zinc sacrificial gearcase anode designed for Johnson and Evinrude 9.9 HP and 15 HP four-stroke outboard motors manufactured between 2002 and 2007. It corresponds to original OEM part number 5033185 and is also listed under Tecnoseal reference 01206. The anode features a circular disc-shaped body with a raised central section and stepped mounting hole, measuring 49 mm in outer diameter and 8.5 mm in height. The central recess diameter is 15 mm, with a 7 mm through-hole. Weighing 0.05 kg (0.11 lbs), it provides sacrificial corrosion protection for compatible outboard gearcase components.
- Description
- Ask a Question
-
Tecnoseal 5033185 Zinc Johnson-Evinrude Gearcase Anode for 9.9–15 HP 4-Stroke Outboards (2002–2007)
The Tecnoseal 00934 is a zinc sacrificial gearcase anode designed for Johnson and Evinrude 9.9 HP and 15 HP four-stroke outboard motors manufactured between 2002 and 2007. It corresponds to original OEM part number 5033185 and is also listed in the Tecnoseal catalogue as "same as 01206". The anode provides sacrificial corrosion protection for compatible outboard gearcase components.

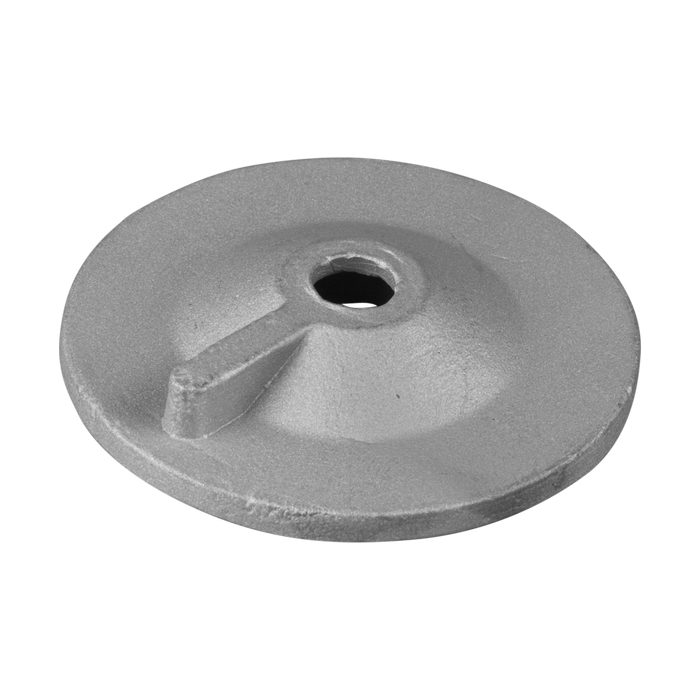

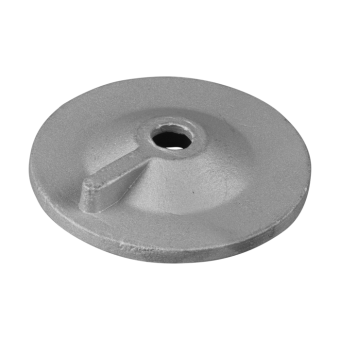

The anode features a circular disc-shaped body with a raised central section and a stepped mounting hole. According to the Tecnoseal catalogue, its outer diameter is 49 mm and its height is 8.5 mm. The central recess has a diameter of 15 mm, while the smaller through-hole measures 7 mm in diameter. The zinc anode weighs 0.05 kg (0.11 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 00934 OEM Reference Johnson-Evinrude 5033185 Additional Tecnoseal Reference 01206 Product Type Gearcase Anode Material Zinc Engine Compatibility Johnson-Evinrude 9.9 HP / 15 HP Engine Type 4-Stroke Model Years 2002–2007 Weight 0.05 kg (0.11 lbs)
Dimensions
Dimension Measurement Height (h) 8.5 mm (0.33") Outer Diameter (Ø) 49 mm (1.93") Central Recess Diameter (Ø1) 15 mm (0.59") Through-Hole Diameter (Ø2) 7 mm (0.28")
Key Features
- Zinc sacrificial gearcase anode for Johnson-Evinrude outboard motors.
- Designed for 9.9 HP and 15 HP four-stroke engines manufactured between 2002 and 2007.
- Corresponds to original OEM part number 5033185.
- Additional Tecnoseal catalogue reference: 01206.
- Circular disc-shaped body with a raised central section.
- Outer diameter: 49 mm.
- Height: 8.5 mm.
- Stepped central mounting hole with diameters of 15 mm and 7 mm.
- Weight: 0.05 kg (50 g).
-
