The Tecnoseal 00932 is a zinc sacrificial block anode designed for Johnson and Evinrude 5 HP outboard motors manufactured between 2000 and 2005, corresponding to original OEM part number 5030267 and additional Tecnoseal catalogue reference 01202. It features a tapered, wedge-shaped body measuring 41 mm in overall length, 38 mm in width and 23 mm in height, with an upper dimension (l1) of 21 mm and a secondary height (h1) of 8 mm. The central stepped mounting hole has diameters of 18 mm and 7.5 mm. Weighing 0.10 kg (0.22 lbs), the anode provides sacrificial corrosion protection for compatible outboard motor components.
- Description
- Ask a Question
-

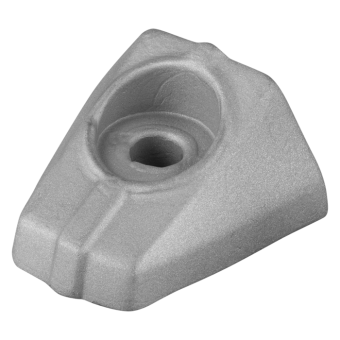

Tecnoseal 5030267 Zinc Johnson-Evinrude Outboard Block Anode for 5 HP Engines (2000–2005)
The Tecnoseal 00932 is a zinc sacrificial block anode designed for Johnson and Evinrude 5 HP outboard motors manufactured between 2000 and 2005. It corresponds to original OEM part number 5030267 and is also listed in the Tecnoseal catalogue as "same as 01202". The anode provides sacrificial corrosion protection for compatible outboard motor components.

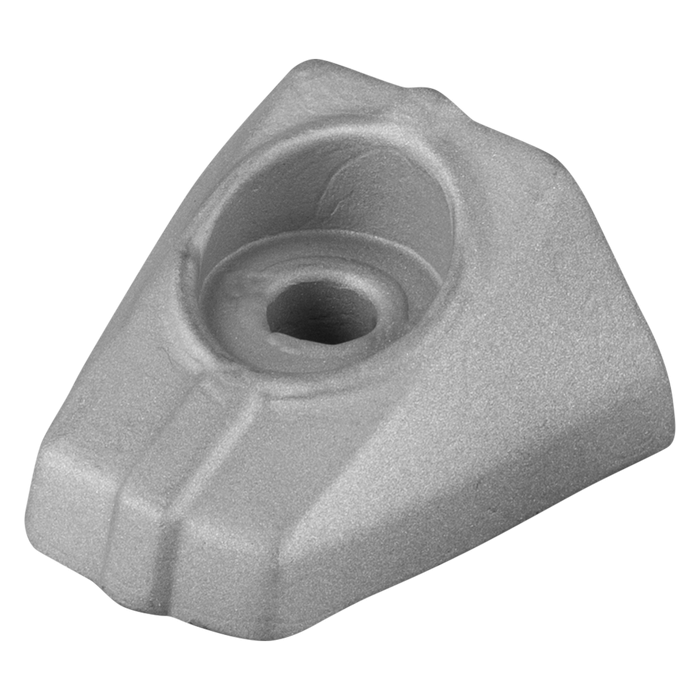

The anode features a compact, tapered wedge-shaped body with a central stepped mounting hole and a raised section around the opening. Its overall dimensions are 41 mm in length, 38 mm in width and 23 mm in height. Additional profile dimensions include an upper length (l1) of 21 mm and a secondary height (h1) of 8 mm. The mounting hole has a larger diameter of 18 mm and a smaller through-hole diameter of 7.5 mm. The anode weighs 0.10 kg (0.22 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 00932 OEM Reference Johnson-Evinrude 5030267 Additional Tecnoseal Reference 01202 Product Type Outboard Block Anode Material Zinc Engine Compatibility Johnson-Evinrude 5 HP Model Years 2000–2005 Weight 0.10 kg (0.22 lbs)
Dimensions
Dimension Measurement Overall Length (l) 41 mm (1.61") Upper Length (l1) 21 mm (0.83") Width (a) 38 mm (1.50") Overall Height (h) 23 mm (0.91") Secondary Height (h1) 8 mm (0.31") Counterbore Diameter (Ø) 18 mm (0.71") Through-Hole Diameter (Ø1) 7.5 mm (0.30")
Key Features
- Zinc sacrificial block anode for Johnson-Evinrude 5 HP outboard motors.
- Designed for compatible outboards manufactured between 2000 and 2005.
- Corresponds to original OEM part number 5030267.
- Additional Tecnoseal catalogue reference: 01202.
- Compact tapered body with a central stepped mounting hole.
- Overall dimensions: 41 × 38 × 23 mm.
- Upper length: 21 mm; secondary height: 8 mm.
- Counterbore diameter: 18 mm.
- Through-hole diameter: 7.5 mm.
- Weight: 0.10 kg (100 g).
-
