Tecnoseal 5032930 Johnson-Evinrude Gearcase Anode for 60/140 HP Outboards (2002–2006)

ID 1404304

$ 10.70

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
30 g
20 g

The Tecnoseal Johnson-Evinrude Gearcase Anode is a sacrificial anode designed for Johnson and Evinrude 60/140 HP outboard applications manufactured between 2002 and 2006, corresponding to original OEM part number 5032930 and additional Tecnoseal catalogue reference 01212. Available in zinc (00937), aluminium (00937AL) and magnesium (00937MG), all three versions feature a stepped rectangular body measuring 56 × 22 × 18 mm, with an additional height dimension of 5 mm and a central mounting hole featuring an 18 mm counterbore and a 6 mm through-hole. The zinc version weighs 0.08 kg (0.18 lbs), the aluminium version 0.03 kg (0.07 lbs) and the magnesium version 0.02 kg (0.04 lbs).

Description
Ask a Question

Tecnoseal 5032930 Johnson-Evinrude Gearcase Anode for 60/140 HP Outboards (2002–2006)

The Tecnoseal Johnson-Evinrude Gearcase Anode is a sacrificial anode designed for corrosion protection of compatible Johnson and Evinrude outboard motor gearcases. According to the Tecnoseal catalogue, it is listed for 60/140 HP applications manufactured between 2002 and 2006. The anode corresponds to original OEM part number 5032930 and is also identified as "same as 01212". It is available in zinc, aluminium and magnesium versions.

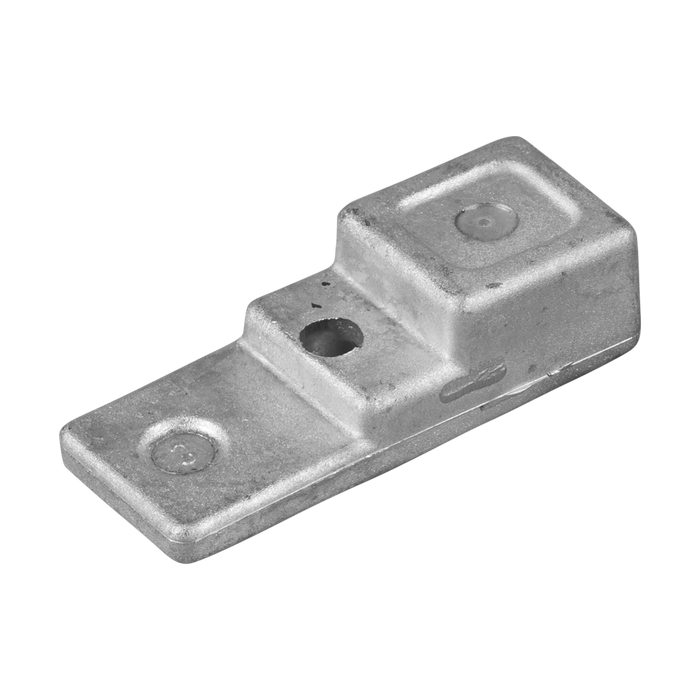

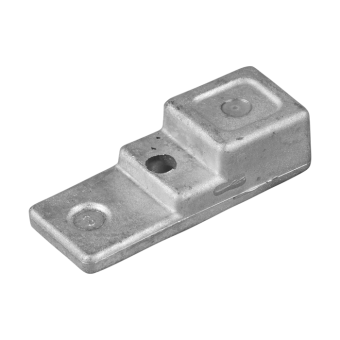

The anode features a stepped rectangular body with a raised section and a central mounting hole. All three versions share the same overall dimensions of 56 mm in length, 22 mm in width and 18 mm in height. An additional height dimension (h1) is 5 mm. The central mounting configuration includes an 18 mm counterbore and a 6 mm through-hole. The dimensions remain identical across all materials, while the weights vary.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Gearcase Anode
OEM Reference	Johnson-Evinrude 5032930
Additional Tecnoseal Reference	01212
Engine Compatibility	Johnson-Evinrude 60/140 HP
Model Years	2002–2006
Available Materials	Zinc, Aluminium, Magnesium
Mounting Configuration	Stepped central hole

Available Versions

Tecnoseal Part Number	Material	Weight
00937	Zinc	0.08 kg (0.18 lbs)
00937AL	Aluminium	0.03 kg (0.07 lbs)
00937MG	Magnesium	0.02 kg (0.04 lbs)

Dimensions

Dimension	Measurement
Length (l)	56 mm (2.20")
Width (a)	22 mm (0.87")
Height (h)	18 mm (0.71")
Additional Height (h1)	5 mm (0.20")
Counterbore Diameter (Ø)	18 mm (0.71")
Through-Hole Diameter (Ø1)	6 mm (0.24")

Key Features

Sacrificial gearcase anode for Johnson-Evinrude outboard motors.
Listed for 60/140 HP applications manufactured between 2002 and 2006.
Corresponds to original OEM part number 5032930.
Additional Tecnoseal catalogue reference: 01212.
Available in zinc, aluminium and magnesium versions.
Stepped rectangular body with a raised mounting section.
Identical overall dimensions across all materials: 56 × 22 × 18 mm.
Additional height dimension: 5 mm.
Central stepped mounting hole with an 18 mm counterbore and a 6 mm through-hole.
Weights: 80 g (zinc), 30 g (aluminium) and 20 g (magnesium).
