ID
1404312
$ 45.98
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 550 g
- 150 g
- 240 g
The Tecnoseal Evinrude E-TEC G2 Propeller Anode is a sacrificial anode designed for Johnson-Evinrude E-TEC G2 200/300 HP outboard motors, corresponding to original OEM part number 5009220. Available in zinc (00939), aluminium (00939AL) and magnesium (00939MG), all three versions feature a tapered, conical body measuring 60 mm in height and 58 mm in outer diameter, with a stepped internal mounting bore featuring diameters of 8.5 mm and 44 mm. The zinc version weighs 0.55 kg (1.21 lbs), the aluminium version 0.24 kg (0.53 lbs) and the magnesium version 0.15 kg (0.33 lbs). The anode provides sacrificial corrosion protection for compatible outboard propeller components.
- Description
- Ask a Question
-

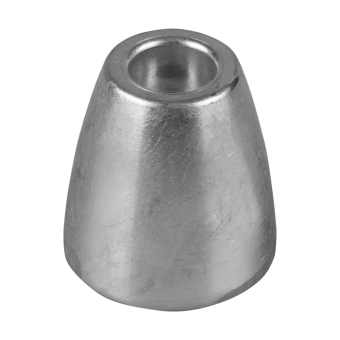

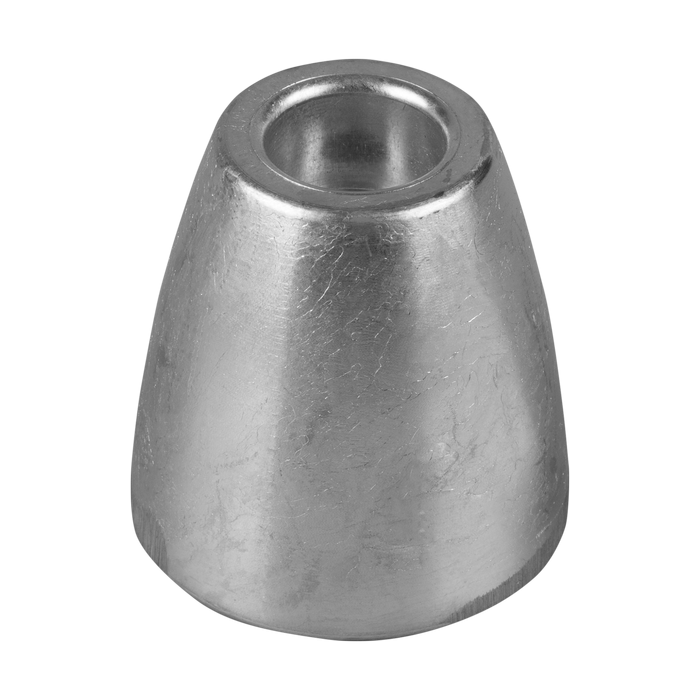

Tecnoseal 5009220 Evinrude E-TEC G2 Propeller Anode for 200/300 HP Outboards
The Tecnoseal Evinrude E-TEC G2 Propeller Anode is a sacrificial anode designed for Johnson-Evinrude E-TEC G2 outboard motors rated at 200/300 HP. It corresponds to original OEM part number 5009220 and is available in zinc, aluminium and magnesium versions for corrosion protection of compatible outboard propeller components.
The anode features a tapered conical body with a stepped internal mounting bore. All three versions share the same dimensions of 60 mm in overall height and 58 mm in outer diameter. The mounting configuration includes an 8.5 mm diameter opening and a larger internal recess measuring 44 mm in diameter. The external dimensions and mounting configuration remain identical across all material versions, while the weights differ.
Technical Specifications
Manufacturer Tecnoseal Product Type Propeller Anode OEM Reference Evinrude 5009220 Engine Compatibility Johnson-Evinrude E-TEC G2 200/300 HP Available Materials Zinc, Aluminium, Magnesium Body Shape Tapered Conical Mounting Configuration Stepped internal bore
Available Versions
Tecnoseal Part Number Material Weight 00939 Zinc 0.55 kg (1.21 lbs) 00939AL Aluminium 0.24 kg (0.53 lbs) 00939MG Magnesium 0.15 kg (0.33 lbs)
Dimensions
Dimension Measurement Height (h) 60 mm (2.36") Outer Diameter (Ø) 58 mm (2.28") Mounting Hole Diameter (Ø1) 8.5 mm (0.33") Internal Recess Diameter (Ø2) 44 mm (1.73")
Key Features
- Sacrificial propeller anode for Evinrude E-TEC G2 outboard motors.
- Listed for Johnson-Evinrude E-TEC G2 200/300 HP applications.
- Corresponds to original OEM part number 5009220.
- Available in zinc, aluminium and magnesium versions.
- Tapered conical body with a stepped internal mounting bore.
- Identical overall dimensions for all three materials: Ø58 × 60 mm.
- Mounting hole diameter: 8.5 mm.
- Internal recess diameter: 44 mm.
- Weights: 550 g (zinc), 240 g (aluminium) and 150 g (magnesium).
-
