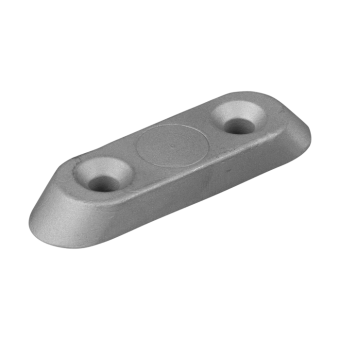

Tecnoseal 5031538 Johnson-Evinrude Gearcase Anode for 9.9–50 HP 4-Stroke Outboards (2002–2007)

ID 1404298

$ 24.23

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

80 g
30 g

The Tecnoseal Johnson-Evinrude Gearcase Anode is a sacrificial anode designed for Johnson and Evinrude 9.9–50 HP four-stroke outboard applications manufactured between 2002 and 2007, corresponding to original OEM part number 5031538 and additional Tecnoseal catalogue reference 01208. Available in zinc (00935) and aluminium (00935AL), both versions feature an elongated oval plate measuring 76 × 20 × 10 mm, with two mounting holes spaced 38 mm apart and a hole diameter of 6.5 mm. The zinc version weighs 0.08 kg (0.18 lbs), while the aluminium version weighs 0.03 kg (0.07 lbs). Both versions share the same mounting dimensions and provide sacrificial corrosion protection for compatible outboard gearcase components.

Description
Ask a Question

Tecnoseal 5031538 Johnson-Evinrude Gearcase Anode for 9.9–50 HP 4-Stroke Outboards (2002–2007)

The Tecnoseal Johnson-Evinrude Gearcase Anode is a sacrificial anode designed for corrosion protection of compatible Johnson and Evinrude four-stroke outboard motor gearcases. According to the Tecnoseal catalogue, it is listed for 9.9/50 HP applications manufactured between 2002 and 2007. The anode corresponds to original OEM part number 5031538 and is also identified as "same as 01208". It is available in zinc and aluminium versions.

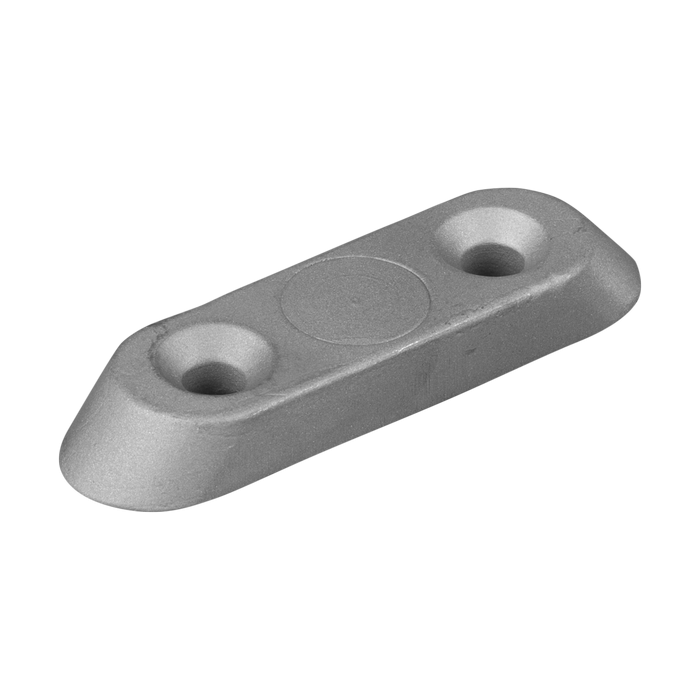

The anode features an elongated oval plate with rounded ends and two countersunk mounting holes. Both material versions measure 76 mm in overall length, 20 mm in width and 10 mm in height. The mounting holes have a centre-to-centre spacing of 38 mm and a diameter of 6.5 mm. The dimensions and mounting configuration remain identical, while the weight differs according to the material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Gearcase Anode
OEM Reference	Johnson-Evinrude 5031538
Additional Tecnoseal Reference	01208
Engine Compatibility	Johnson-Evinrude 9.9/50 HP
Engine Type	4-Stroke
Model Years	2002–2007
Available Materials	Zinc, Aluminium

Available Versions

Tecnoseal Part Number	Material	Weight
00935	Zinc	0.08 kg (0.18 lbs)
00935AL	Aluminium	0.03 kg (0.07 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	76 mm (2.99")
Width (a)	20 mm (0.79")
Height (h)	10 mm (0.39")
Mounting Hole Spacing (i)	38 mm (1.50")
Mounting Hole Diameter (Ø)	6.5 mm (0.26")

Key Features

Sacrificial gearcase anode for Johnson-Evinrude four-stroke outboard motors.
Listed for 9.9/50 HP applications manufactured between 2002 and 2007.
Corresponds to original OEM part number 5031538.
Additional Tecnoseal catalogue reference: 01208.
Available in zinc and aluminium versions.
Elongated oval body with two countersunk mounting holes.
Identical overall dimensions for both materials: 76 × 20 × 10 mm.
Mounting hole spacing: 38 mm.
Mounting hole diameter: 6.5 mm.
Weights: 80 g (zinc) and 30 g (aluminium).
