Tecnoseal 357597 / 357507 Evinrude E-TEC G2 Gearcase Anode for 200/300 HP Outboards

ID 1404316

$ 20.21

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

30 g
20 g
90 g

The Tecnoseal Evinrude E-TEC G2 Gearcase Anode is a sacrificial anode designed for Johnson-Evinrude E-TEC G2 200/300 HP outboard motors, corresponding to original OEM part numbers 357597 and 357507. Available in zinc (00940), aluminium (00940AL) and magnesium (00940MG), all three versions feature an elongated plate with rounded ends measuring 60 × 22 × 11 mm, two mounting holes spaced 25 mm apart and a hole diameter of 7.5 mm. The zinc version weighs 0.09 kg (0.20 lbs), the aluminium version 0.03 kg (0.07 lbs) and the magnesium version 0.02 kg (0.04 lbs). All versions share the same mounting dimensions and provide sacrificial corrosion protection for compatible outboard gearcase components.

Description
Ask a Question

Tecnoseal 357597 / 357507 Evinrude E-TEC G2 Gearcase Anode for 200/300 HP Outboards

The Tecnoseal Evinrude E-TEC G2 Gearcase Anode is a sacrificial anode designed for corrosion protection of compatible Johnson-Evinrude E-TEC G2 outboard motor gearcases. According to the Tecnoseal catalogue, it is suitable for E-TEC G2 200/300 HP applications and corresponds to original OEM part numbers 357597 and 357507. The anode is available in zinc, aluminium and magnesium versions.

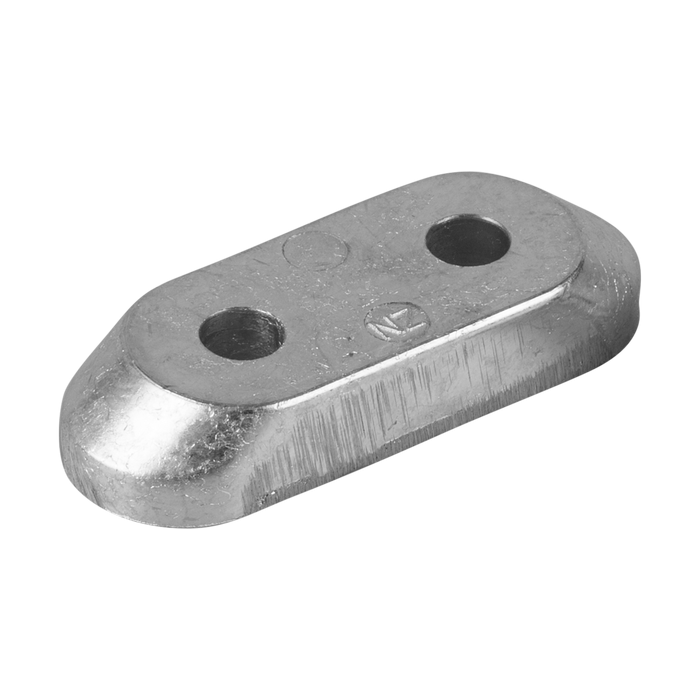

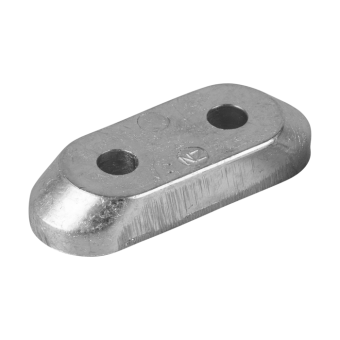

The anode features an elongated oval plate with rounded ends and two mounting holes. All three versions measure 60 mm in overall length, 22 mm in width and 11 mm in height. The mounting holes have a centre-to-centre spacing of 25 mm and a diameter of 7.5 mm. The mounting configuration and external dimensions remain identical across all three materials, while the weight varies according to the selected version.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Gearcase Anode
OEM References	Evinrude 357597 / 357507
Engine Compatibility	Johnson-Evinrude E-TEC G2 200/300 HP
Available Materials	Zinc, Aluminium, Magnesium
Mounting Hole Spacing	25 mm
Mounting Hole Diameter	7.5 mm

Available Versions

Tecnoseal Part Number	Material	Weight
00940	Zinc	0.09 kg (0.20 lbs)
00940AL (Osculati 43.317.30)	Aluminium	0.03 kg (0.07 lbs)
00940MG	Magnesium	0.02 kg (0.04 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	60 mm (2.36")
Width (a)	22 mm (0.87")
Height (h)	11 mm (0.43")
Mounting Hole Spacing (i)	25 mm (0.98")
Mounting Hole Diameter (Ø)	7.5 mm (0.30")

Key Features

Sacrificial gearcase anode for Evinrude E-TEC G2 outboard motors.
Listed for Johnson-Evinrude E-TEC G2 200/300 HP applications.
Corresponds to original OEM part numbers 357597 and 357507.
Available in zinc, aluminium and magnesium versions.
Elongated oval plate with rounded ends and two mounting holes.
Identical overall dimensions across all materials: 60 × 22 × 11 mm.
Mounting hole spacing: 25 mm.
Mounting hole diameter: 7.5 mm.
Weights: 90 g (zinc), 30 g (aluminium) and 20 g (magnesium).
