ID
1404308
$ 30.33
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 80 g
- 250 g
- 120 g

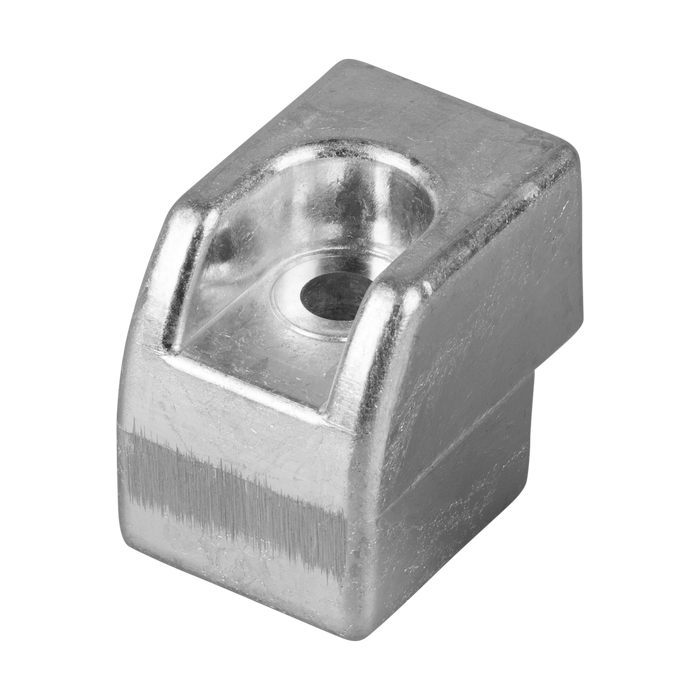

The Tecnoseal Evinrude E-TEC G2 Block Anode is a sacrificial anode designed for Johnson-Evinrude E-TEC G2 200/300 HP outboard motors, corresponding to original OEM part number 355964. Available in zinc (00938), aluminium (00938AL) and magnesium (00938MG), all three versions feature a shaped block body measuring 46 × 34 × 42 mm, with a stepped central mounting bore of 8.5 mm and 21 mm diameter. The zinc version weighs 0.25 kg (0.55 lbs), the aluminium version 0.12 kg (0.26 lbs) and the magnesium version 0.08 kg (0.18 lbs). The anode provides sacrificial corrosion protection for compatible outboard motor components.
- Description
- Ask a Question
-

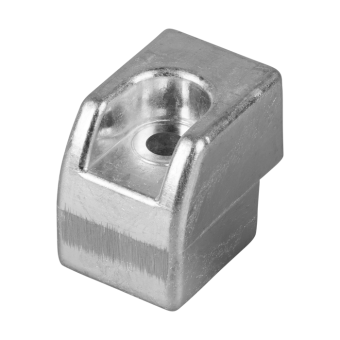

Tecnoseal 355964 Evinrude E-TEC G2 Block Anode for 200/300 HP Outboards
The Tecnoseal Evinrude E-TEC G2 Block Anode is a sacrificial anode designed for corrosion protection of compatible Johnson-Evinrude E-TEC G2 outboard motor components. According to the Tecnoseal catalogue, it is suitable for E-TEC G2 200/300 HP applications and corresponds to original OEM part number 355964. The anode is available in zinc, aluminium and magnesium versions.
The anode features a shaped block body with a stepped profile and a central mounting bore. All three versions share the same overall dimensions of 46 mm in length, 34 mm in width and 42 mm in height. The mounting configuration includes a smaller bore diameter of 8.5 mm and a larger recess diameter of 21 mm. The external dimensions and mounting configuration remain identical across all three material versions, while the weight varies according to the selected material.
Technical Specifications
Manufacturer Tecnoseal Product Type Block Anode OEM Reference Evinrude 355964 Engine Compatibility Johnson-Evinrude E-TEC G2 200/300 HP Available Materials Zinc, Aluminium, Magnesium Mounting Bore Stepped, Ø8.5 / Ø21 mm
Available Versions
Tecnoseal Part Number Material Weight 00938 Zinc 0.25 kg (0.55 lbs) 00938AL (Osculati 43.317.24) Aluminium 0.12 kg (0.26 lbs) 00938MG Magnesium 0.08 kg (0.18 lbs)
Dimensions
Dimension Measurement Length (l) 46 mm (1.81") Width (a) 34 mm (1.34") Height (h) 42 mm (1.65") Through-Hole Diameter (Ø) 8.5 mm (0.33") Recess Diameter (Ø1) 21 mm (0.83")
Key Features
- Sacrificial block anode for Evinrude E-TEC G2 outboard motors.
- Designed for Johnson-Evinrude E-TEC G2 200/300 HP applications.
- Corresponds to original OEM part number 355964.
- Available in zinc, aluminium and magnesium versions.
- Shaped block body with a stepped mounting bore.
- Identical overall dimensions across all materials: 46 × 34 × 42 mm.
- Through-hole diameter: 8.5 mm.
- Recess diameter: 21 mm.
- Weights: 250 g (zinc), 120 g (aluminium) and 80 g (magnesium).
-
