ID
1404301
$ 18.65
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
Item:
- 50 g
- 10 g
The Tecnoseal Johnson-Evinrude Gearcase Anode is a sacrificial anode designed for Johnson and Evinrude 9.9/50 HP four-stroke outboard applications manufactured between 1999 and 2007, corresponding to original OEM part number 5033167 and additional Tecnoseal catalogue reference 01210. Available in zinc (00936) and magnesium (00936MG), both versions feature an elongated oval block measuring 48 mm in length, 18 mm in width and 12 mm in height, with a central mounting hole diameter of 7 mm. The zinc version weighs 0.05 kg (0.11 lbs), while the magnesium version weighs 0.01 kg (0.02 lbs). Both versions share the same dimensions and provide sacrificial corrosion protection for compatible outboard gearcase components.
- Description
- Ask a Question
-

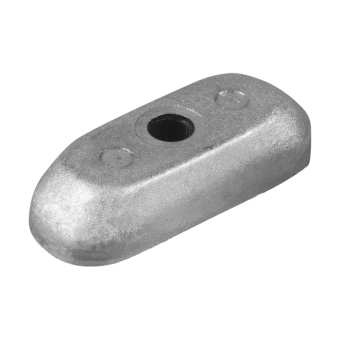

Tecnoseal 5033167 Johnson-Evinrude Gearcase Anode for 9.9/50 HP 4-Stroke Outboards (1999–2007)
The Tecnoseal Johnson-Evinrude Gearcase Anode is a sacrificial anode designed for corrosion protection of compatible Johnson and Evinrude four-stroke outboard motor gearcases. According to the Tecnoseal catalogue, it is suitable for 9.9/50 HP applications manufactured between 1999 and 2007. It corresponds to original OEM part number 5033167 and is also listed as "same as 01210". Two material versions are available: zinc and magnesium.

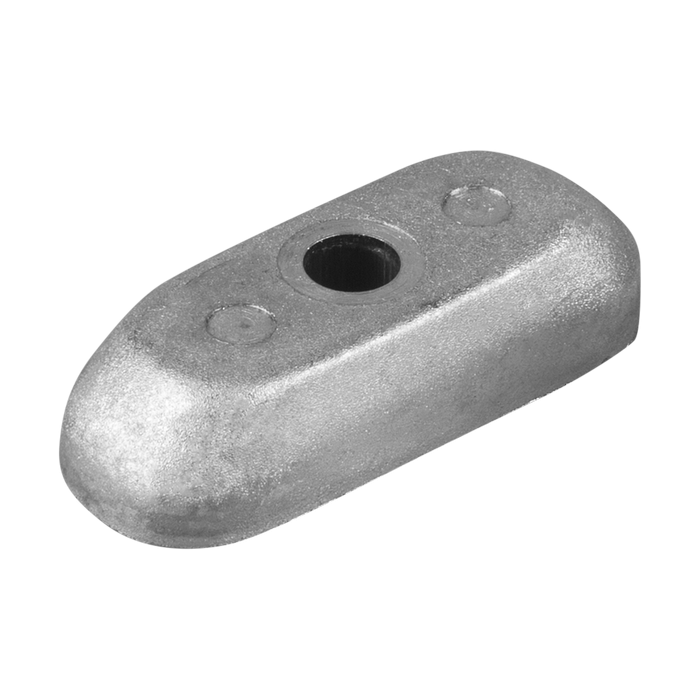

The anode features an elongated oval block-shaped body with rounded ends and a central mounting hole. Both versions measure 48 mm in length, 18 mm in width and 12 mm in height. The mounting hole diameter is 7 mm. The dimensions and mounting configuration are identical for both materials, while their weights differ.
Technical Specifications
Manufacturer Tecnoseal Product Type Gearcase Anode OEM Reference Johnson-Evinrude 5033167 Additional Tecnoseal Reference 01210 Engine Compatibility Johnson-Evinrude 9.9/50 HP Engine Type 4-Stroke Model Years 1999–2007 Available Materials Zinc, Magnesium
Available Versions
Tecnoseal Part Number Material Weight 00936 Zinc 0.05 kg (0.11 lbs) 00936MG Magnesium 0.01 kg (0.02 lbs)
Dimensions
Dimension Measurement Length (l) 48 mm (1.89") Width (a) 18 mm (0.71") Height (h) 12 mm (0.47") Mounting Hole Diameter (Ø) 7 mm (0.28")
Key Features
- Sacrificial gearcase anode for Johnson-Evinrude four-stroke outboard motors.
- Listed for 9.9/50 HP applications manufactured between 1999 and 2007.
- Corresponds to original OEM part number 5033167.
- Additional Tecnoseal catalogue reference: 01210.
- Available in zinc and magnesium versions.
- Elongated oval body with rounded ends and a central mounting hole.
- Identical overall dimensions for both materials: 48 × 18 × 12 mm.
- Mounting hole diameter: 7 mm.
- Weights: 50 g (zinc) and 10 g (magnesium).
-
