ID
1404450
$ 61.16
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 330 g
- 230 g
- 890 g
The Tecnoseal 00806BIS Series is a gimbal anode designed for Mercruiser Alpha One and Alpha One Gen II sterndrive systems, corresponding to OEM part number 821631. Available in zinc (00806BIS), aluminium (00806BISAL) and magnesium (00806BISMG), it provides sacrificial corrosion protection for compatible sterndrive components. The anode features a recessed, ribbed body with mounting holes and measures 103 mm (4.06") in length, 78 mm (3.07") in width and 38 mm (1.50") in height, with 6.50 mm (0.26") mounting holes. The zinc version weighs 0.89 kg (890 g), aluminium 0.33 kg (330 g) and magnesium 0.23 kg (230 g). All three versions share the same dimensions.
- Description
- Ask a Question
-

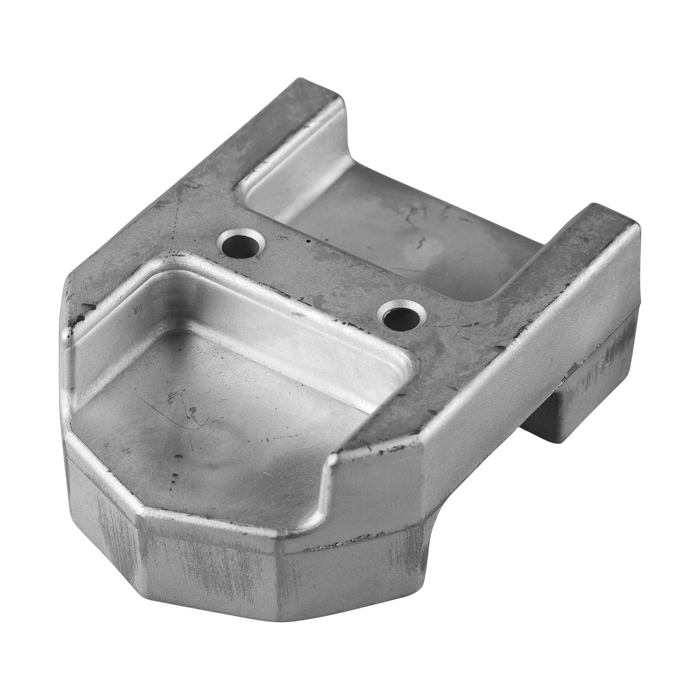

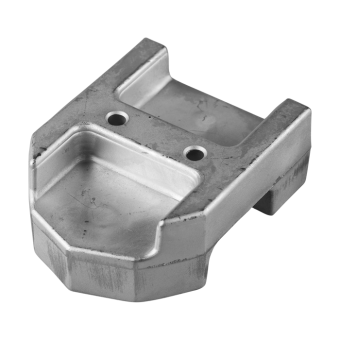

Tecnoseal 821631 Mercruiser Alpha One Gimbal Anode for Gen I & Gen II
The Tecnoseal 00806BIS Series comprises sacrificial gimbal anodes designed for Mercruiser Alpha One and Alpha One Gen II sterndrive systems. These anodes help protect compatible metallic components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding original part number is 821631.
The anode features a recessed mounting body with raised side sections and mounting holes. It measures 103 mm (4.06") in length, 78 mm (3.07") in width and 38 mm (1.50") in height, with a mounting hole diameter of 6.50 mm (0.26"). Three material versions are available: zinc, aluminium and magnesium. They share identical catalogue dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Series 00806BIS Product Type Gimbal Anode Application Mercruiser Alpha One / Alpha One Gen II OEM Part Number 821631 Available Materials Zinc, Aluminium, Magnesium Mounting Hole Diameter 6.50 mm
Available Versions and Osculati Cross-References
Tecnoseal Part Number Material Osculati Reference Weight 00806BIS Zinc 43.435.00 0.89 kg (1.96 lbs) 00806BISAL Aluminium 43.435.01 0.33 kg (0.73 lbs) 00806BISMG Magnesium 43.435.02 0.23 kg (0.51 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Length (l) 103 mm (4.06") Width (a) 78 mm (3.07") Height (h) 38 mm (1.50") Mounting Hole Diameter (Ø) 6.50 mm (0.26")
Product Configurations
Tecnoseal 00806BIS – Zinc Mercruiser Alpha One Gimbal Anode
- Material: Zinc
- Weight: 0.89 kg (1.96 lbs)
- Dimensions: 103 × 78 × 38 mm
- Mounting Hole Diameter: 6.50 mm
- Osculati Reference: 43.435.00
Tecnoseal 00806BISAL – Aluminium Mercruiser Alpha One Gimbal Anode
- Material: Aluminium
- Weight: 0.33 kg (0.73 lbs)
- Dimensions: 103 × 78 × 38 mm
- Mounting Hole Diameter: 6.50 mm
- Osculati Reference: 43.435.01
Tecnoseal 00806BISMG – Magnesium Mercruiser Alpha One Gimbal Anode
- Material: Magnesium
- Weight: 0.23 kg (0.51 lbs)
- Dimensions: 103 × 78 × 38 mm
- Mounting Hole Diameter: 6.50 mm
- Osculati Reference: 43.435.02
OEM and Cross-References
- Mercruiser OEM Part Number: 821631
- Tecnoseal 00806BIS (Zinc): Osculati 43.435.00
- Tecnoseal 00806BISAL (Aluminium): Osculati 43.435.01
- Tecnoseal 00806BISMG (Magnesium): Osculati 43.435.02
Key Features
- Gimbal anode for Mercruiser Alpha One and Alpha One Gen II sterndrives.
- Corresponds to OEM part number 821631.
- Available in zinc, aluminium and magnesium versions.
- Recessed mounting body with raised side sections.
- Length: 103 mm.
- Width: 78 mm.
- Height: 38 mm.
- Mounting hole diameter: 6.50 mm.
- Identical dimensions across all three material versions.
- Zinc: Tecnoseal 00806BIS / Osculati 43.435.00 / 890 g.
- Aluminium: Tecnoseal 00806BISAL / Osculati 43.435.01 / 330 g.
- Magnesium: Tecnoseal 00806BISMG / Osculati 43.435.02 / 230 g.
-
