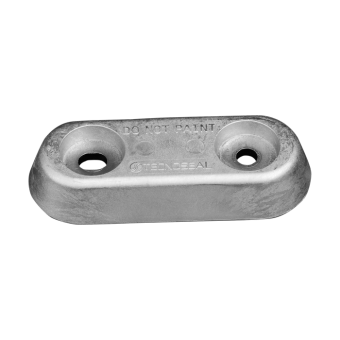

Tecnoseal 10108010 / 2629005 / 10208125 Kamewa Jet FF550 Zinc Oval Plate Anode 148x58x25 mm

Name: Tecnoseal 10108010 / 2629005 / 10208125 Kamewa Jet FF550 Zinc Oval Plate Anode 148x58x25 mm
SKU: Tecnoseal 02454-1
Price: 48.335885846625 USD
Availability: InStock

ID 1405840

$ 48.34

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 02454-1 is a zinc sacrificial oval plate anode designed for the Kamewa Jet FF550 waterjet propulsion system, corresponding to OEM references 10108010, 2629005 and 10208125. The anode measures 148 mm (5.83 in) in length, 58 mm (2.28 in) in width and 25 mm (0.98 in) in height. It features two recessed mounting holes with 80 mm (3.15 in) centre-to-centre spacing, a 31 mm (1.22 in) recess diameter and 11 x 15 mm (0.43 x 0.59 in) mounting slots. Weighing 1.03 kg (2.27 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa propulsion components. Also listed as Tecnoseal 00220.

Description
Ask a Question

Tecnoseal 02454-1 Kamewa Jet FF550 Zinc Oval Plate Anode 148x58x25 mm – OEM 10108010 / 2629005 / 10208125

The Tecnoseal 02454-1 is a zinc sacrificial oval plate anode designed for the Kamewa Jet FF550 waterjet propulsion system. Corresponding to Kamewa OEM references 10108010, 2629005 and 10208125, this replacement anode helps protect compatible metallic propulsion components against galvanic corrosion.

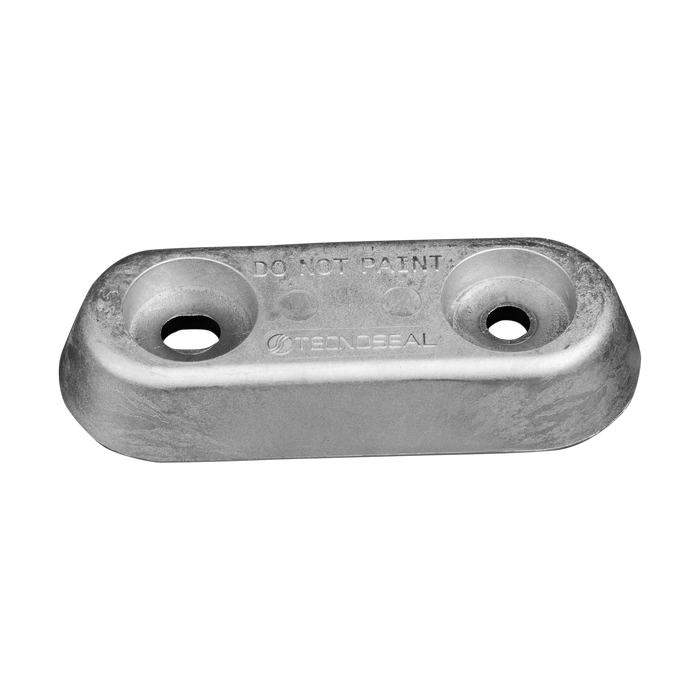

The anode features an elongated oval body with two recessed mounting holes. It measures 148 mm (5.83 in) in length, 58 mm (2.28 in) in width and 25 mm (0.98 in) in height. The mounting holes are spaced 80 mm (3.15 in) centre-to-centre, with a 31 mm (1.22 in) recess diameter and 11 x 15 mm (0.43 x 0.59 in) mounting slots.

Manufactured from zinc, the Tecnoseal 02454-1 weighs 1.03 kg (2.27 lbs). The Tecnoseal catalogue also identifies this anode as equivalent to product code 00220.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	02454-1
Product Type	Oval Plate Sacrificial Anode
Compatible Brand	Kamewa / Rolls-Royce
Compatible Model	Kamewa Jet FF550
OEM References	10108010, 2629005, 10208125
Tecnoseal Equivalent	00220
Material	Zinc
Weight	1.03 kg (2.27 lbs)
Length (l)	148 mm (5.83 in)
Width (a)	58 mm (2.28 in)
Height (h)	25 mm (0.98 in)
Mounting Hole Spacing (i)	80 mm (3.15 in)
Recess Diameter (Ø1)	31 mm (1.22 in)
Mounting Slot Size (Ø2)	11 x 15 mm (0.43 x 0.59 in)
EAN	8058774838642

Dimensions and Mounting

Length (l): 148 mm (5.83 in)
Width (a): 58 mm (2.28 in)
Height (h): 25 mm (0.98 in)
Mounting Hole Spacing (i): 80 mm (3.15 in)
Mounting Recess Diameter (Ø1): 31 mm (1.22 in)
Mounting Slot Size (Ø2): 11 x 15 mm (0.43 x 0.59 in)
Construction: Oval plate with two recessed mounting holes

Compatible Kamewa Jet Models

Kamewa Jet FF550

OEM and Product Cross-References

Kamewa OEM: 10108010
Kamewa OEM: 2629005
Kamewa OEM: 10208125
Tecnoseal: 02454-1
Tecnoseal Equivalent: 00220

Key Features

Zinc sacrificial oval plate anode for Kamewa Jet FF550 propulsion systems.
Compact oval body measuring 148 x 58 x 25 mm.
Two recessed mounting holes with 80 mm centre-to-centre spacing.
31 mm recess diameter and 11 x 15 mm mounting slots.
Corresponds to OEM references 10108010, 2629005 and 10208125.
Listed as equivalent to Tecnoseal 00220.
Provides sacrificial corrosion protection for compatible metallic waterjet propulsion components.

Compatibility: Designed for Kamewa Jet FF550 waterjet propulsion systems. Verify the existing anode dimensions, 80 mm mounting hole spacing and mounting configuration before ordering.
