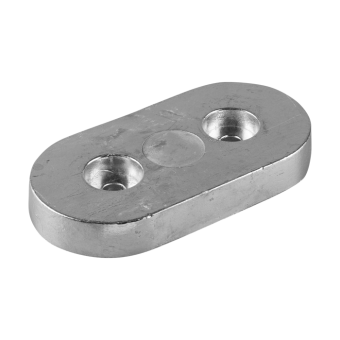

Tecnoseal 10108230 / 2629008 Kamewa Jet FF375S/FF550/A40 Zinc Oval Plate Anode 173x87x23 mm

Name: Tecnoseal 10108230 / 2629008 Kamewa Jet FF375S/FF550/A40 Zinc Oval Plate Anode 173x87x23 mm
SKU: Tecnoseal 02454
Price: 150.34925852602 USD
Availability: InStock

ID 1405839

$ 150.35

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 02454 is a zinc sacrificial oval plate anode designed for Kamewa Jet FF375S, FF550 and A40 series propulsion systems, corresponding to OEM references 10108230 and 2629008. It measures 173 mm (6.81 in) in length, 87 mm (3.43 in) in width and 23 mm (0.91 in) in height, with two recessed mounting holes spaced 80 mm (3.15 in) centre-to-centre. Each mounting hole features a 32 mm (1.26 in) recess diameter and an 11 mm (0.43 in) through-hole diameter. Weighing 2.08 kg (4.59 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa marine propulsion components.

Description
Ask a Question

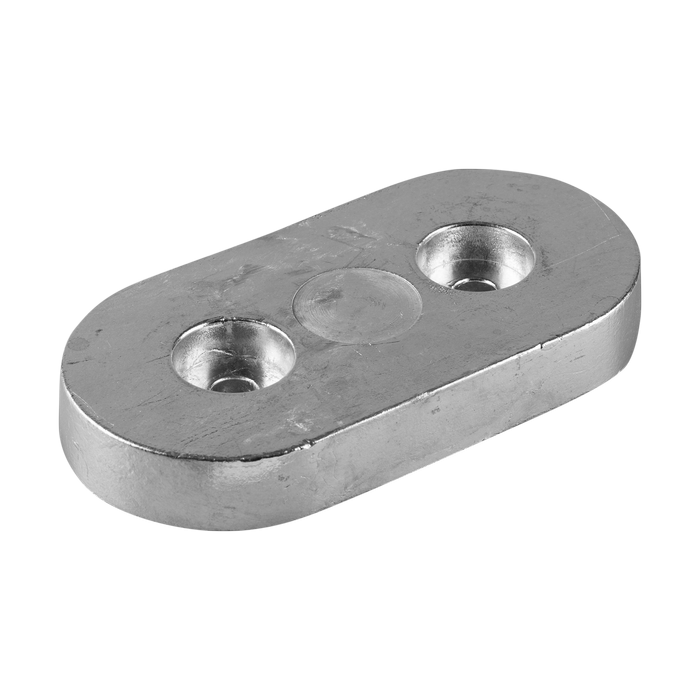

Tecnoseal 10108230 / 2629008 Kamewa Jet FF375S/FF550/A40 Zinc Oval Plate Anode 173x87x23 mm

The Tecnoseal 02454 is a zinc sacrificial oval plate anode designed for Kamewa Jet FF375S, FF550 and A40 series marine propulsion systems. Corresponding to OEM references 10108230 and 2629008, this replacement anode helps protect compatible metallic propulsion components against galvanic corrosion.

The anode features an elongated oval body with two recessed mounting holes. According to the Tecnoseal catalogue, it measures 173 mm (6.81 in) in length, 87 mm (3.43 in) in width and 23 mm (0.91 in) in height. The mounting holes are spaced 80 mm (3.15 in) centre-to-centre, with a recess diameter of 32 mm (1.26 in) and a through-hole diameter of 11 mm (0.43 in).

Manufactured from zinc, the Tecnoseal 02454 weighs 2.08 kg (4.59 lbs). Its oval plate configuration provides sacrificial corrosion protection for compatible Kamewa waterjet propulsion equipment.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	02454
Product Type	Oval Plate Sacrificial Anode
Compatible Brand	Kamewa / Rolls-Royce
Compatible Models	FF375S, FF550, A40 series
OEM References	10108230, 2629008
Material	Zinc
Weight	2.08 kg (4.59 lbs)
Length (l)	173 mm (6.81 in)
Width (a)	87 mm (3.43 in)
Height (h)	23 mm (0.91 in)
Mounting Hole Spacing (i)	80 mm (3.15 in)
Recess Diameter (Ø)	32 mm (1.26 in)
Through-Hole Diameter (Ø1)	11 mm (0.43 in)
EAN	8033837066651

Dimensions and Mounting

Length (l): 173 mm (6.81 in)
Width (a): 87 mm (3.43 in)
Height (h): 23 mm (0.91 in)
Mounting Hole Spacing (i): 80 mm (3.15 in)
Mounting Recess Diameter (Ø): 32 mm (1.26 in)
Through-Hole Diameter (Ø1): 11 mm (0.43 in)
Construction: Oval plate with two recessed mounting holes

Compatible Kamewa Jet Models

Kamewa Jet FF375S
Kamewa Jet FF550
Kamewa A40 series

OEM and Product Cross-References

Kamewa OEM: 10108230
Kamewa OEM: 2629008
Tecnoseal Zinc: 02454

Key Features

Zinc sacrificial oval plate anode for Kamewa marine propulsion systems.
Compatible with Kamewa Jet FF375S, FF550 and A40 series.
Elongated oval body measuring 173 x 87 x 23 mm.
Two recessed mounting holes with 80 mm centre-to-centre spacing.
32 mm mounting recess diameter and 11 mm through-hole diameter.
Corresponds to OEM references 10108230 and 2629008.
Provides sacrificial corrosion protection for compatible metallic marine propulsion components.

Compatibility: Designed for Kamewa Jet FF375S, FF550 and A40 series marine propulsion systems, corresponding to OEM references 10108230 and 2629008. Verify the existing anode dimensions, mounting recess diameter and 80 mm hole spacing before ordering.
