ID
1405842
$ 99.49
1-2 weeks delivery time
-
+

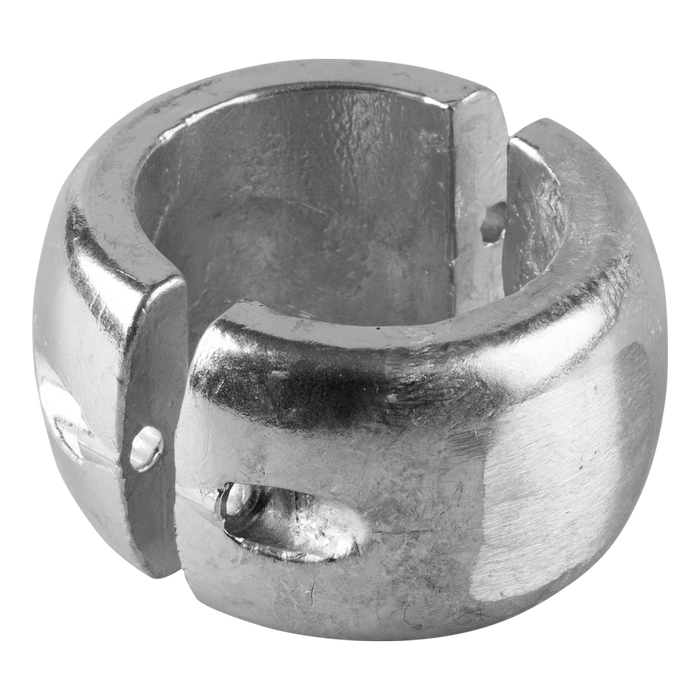

The Tecnoseal 02456 is a zinc sacrificial collar anode designed for Kamewa marine propulsion equipment. It features a two-piece split-ring construction with an overall diameter (l) of 90 mm (3.54 in), an inner dimension (l1) of 60 mm (2.36 in) and a width (a) of 48 mm (1.89 in). The two curved sections form a circular collar with mounting holes for assembly. Weighing 0.985 kg (2.17 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa propulsion components.
- Description
- Ask a Question
-

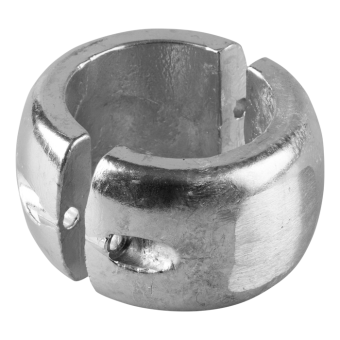

Tecnoseal 02456 Kamewa Zinc Collar Anode Ø90 mm
The Tecnoseal 02456 is a zinc sacrificial collar anode designed for Kamewa marine propulsion equipment. Its split-ring construction consists of two curved sections that form a circular collar when assembled, providing sacrificial corrosion protection for compatible metallic marine components.
According to the Tecnoseal catalogue, the collar has an overall dimension (l) of 90 mm (3.54 in), an inner dimension (l1) of 60 mm (2.36 in) and a width (a) of 48 mm (1.89 in). The two-piece design features mounting holes for securing the collar around the corresponding component.
Manufactured from zinc, the Tecnoseal 02456 weighs 0.985 kg (2.17 lbs). Its circular split-collar configuration is intended for compatible Kamewa marine propulsion installations.
Technical Specifications
Manufacturer Tecnoseal Product Code 02456 Product Type Split Collar Sacrificial Anode Compatible Brand Kamewa Material Zinc Weight 0.985 kg (2.17 lbs) Overall Dimension (l) 90 mm (3.54 in) Inner Dimension (l1) 60 mm (2.36 in) Width (a) 48 mm (1.89 in) Construction Two-piece split collar EAN 8033837066675
Dimensions and Construction
- Overall Dimension (l): 90 mm (3.54 in)
- Inner Dimension (l1): 60 mm (2.36 in)
- Width (a): 48 mm (1.89 in)
- Material: Zinc
- Construction: Two curved collar sections with mounting holes
Product References
- Tecnoseal: 02456
- EAN: 8033837066675
- Application: Kamewa marine propulsion equipment
Key Features
- Zinc sacrificial collar anode for Kamewa marine propulsion systems.
- Two-piece split-ring construction.
- 90 mm overall dimension and 60 mm inner dimension.
- 48 mm collar width.
- Mounting holes integrated into the curved sections.
- Provides sacrificial corrosion protection for compatible metallic propulsion components.
Compatibility: Intended for Kamewa marine propulsion equipment. Verify the existing collar dimensions, mounting hole configuration and Tecnoseal product code 02456 before ordering.
-
