ID
1405846
$ 64.10
1-2 weeks delivery time
-
+
The Tecnoseal 02459 is a zinc sacrificial washer anode designed for Kamewa marine propulsion equipment, corresponding to OEM references 2413383 and 55004810. It features a circular body with a recessed central mounting hole, measuring 80 mm (3.15 in) in outer diameter and 24 mm (0.94 in) in height. Additional dimensions include Ø1 = 50 mm (1.97 in), Ø2 = 32 mm (1.26 in) and Ø3 = 12.5 mm (0.49 in). Weighing 0.80 kg (1.76 lbs), this anode provides sacrificial corrosion protection for compatible Kamewa propulsion components.
- Description
- Ask a Question
-

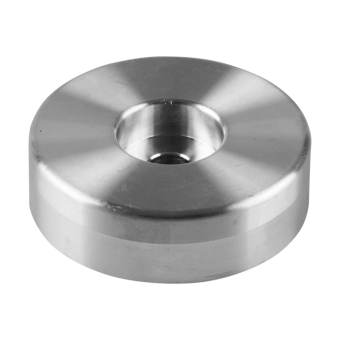

Tecnoseal 2413383 / 55004810 Kamewa Zinc Washer Anode Ø80 mm
The Tecnoseal 02459 is a zinc sacrificial washer anode designed for Kamewa marine propulsion equipment. Corresponding to Kamewa OEM references 2413383 and 55004810, this replacement anode helps protect compatible metallic propulsion components against galvanic corrosion.

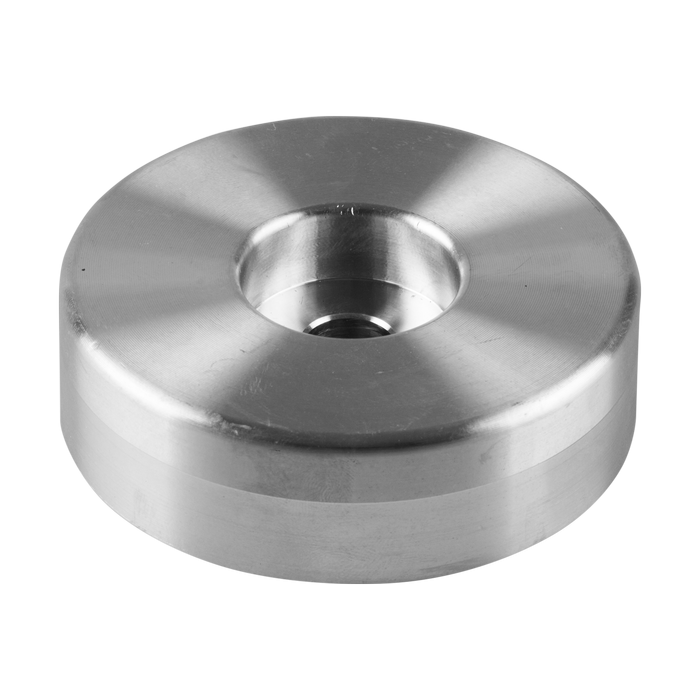

The anode features a circular washer-shaped body with a recessed central mounting hole. According to the Tecnoseal catalogue, it measures 80 mm (3.15 in) in outer diameter and 24 mm (0.94 in) in height. Its stepped central mounting configuration includes a 50 mm (1.97 in) lower recess diameter (Ø1), a 32 mm (1.26 in) upper recess diameter (Ø2) and a 12.5 mm (0.49 in) central through-hole diameter (Ø3).
Manufactured from zinc, the Tecnoseal 02459 weighs 0.80 kg (1.76 lbs). Its recessed washer configuration is intended for compatible Kamewa marine propulsion installations.
Technical Specifications
Manufacturer Tecnoseal Product Code 02459 Product Type Washer Sacrificial Anode Compatible Brand Kamewa / Rolls-Royce OEM References 2413383, 55004810 Material Zinc Weight 0.80 kg (1.76 lbs) Outer Diameter (Ø) 80 mm (3.15 in) Height (h) 24 mm (0.94 in) Lower Recess Diameter (Ø1) 50 mm (1.97 in) Upper Recess Diameter (Ø2) 32 mm (1.26 in) Through-Hole Diameter (Ø3) 12.5 mm (0.49 in) EAN 8033837069133
Dimensions and Mounting
- Outer Diameter (Ø): 80 mm (3.15 in)
- Height (h): 24 mm (0.94 in)
- Lower Recess Diameter (Ø1): 50 mm (1.97 in)
- Upper Recess Diameter (Ø2): 32 mm (1.26 in)
- Central Through-Hole Diameter (Ø3): 12.5 mm (0.49 in)
- Construction: Circular washer with stepped central recess
Application
- Kamewa marine propulsion equipment
OEM and Product Cross-References
- Kamewa OEM: 2413383
- Kamewa OEM: 55004810
- Tecnoseal Zinc: 02459
Key Features
- Zinc sacrificial washer anode for Kamewa marine propulsion applications.
- 80 mm outer diameter and 24 mm height.
- Stepped central mounting recess with 50 mm and 32 mm diameters.
- 12.5 mm central through-hole.
- Corresponds to Kamewa OEM references 2413383 and 55004810.
- Provides sacrificial corrosion protection for compatible metallic propulsion components.
Compatibility: Intended for Kamewa marine propulsion equipment corresponding to OEM references 2413383 and 55004810. Verify the existing anode dimensions and stepped mounting recess configuration before ordering.
-
