The Tecnoseal 02453 is a zinc sacrificial plate anode designed for Kamewa Jet FF375S, FF550 and A40 series marine propulsion systems, corresponding to OEM part number 10108220. It features a rectangular block-shaped body measuring 58 mm (2.28 in) in length, 61 mm (2.40 in) in width and 25 mm (0.98 in) in height. The anode has a 16 x 40 mm (0.63 x 1.57 in) recessed mounting section, 7.5 x 11 mm (0.30 x 0.43 in) mounting holes and an 18 mm (0.71 in) hole spacing. Weighing 0.43 kg (0.95 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa propulsion components.
- Description
- Ask a Question
-

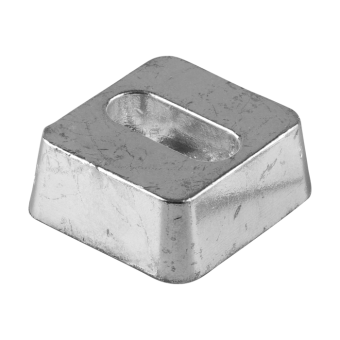

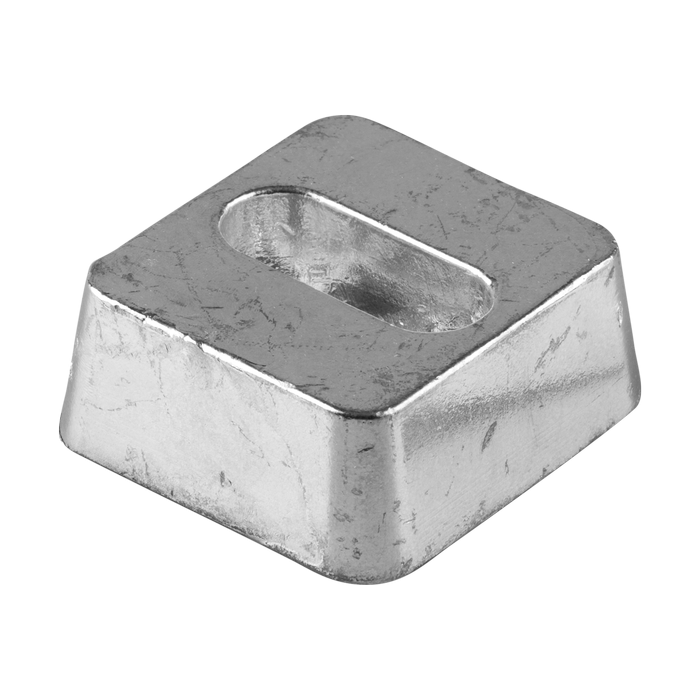

Tecnoseal 10108220 Kamewa Jet FF375S/FF550/A40 Zinc Plate Anode 58x61x25 mm
The Tecnoseal 02453 is a zinc sacrificial plate anode designed for Kamewa Jet FF375S, FF550 and A40 series marine propulsion systems. Corresponding to Kamewa OEM part number 10108220, this replacement anode provides sacrificial corrosion protection for compatible metallic propulsion components.
The anode features a compact rectangular block-shaped body with a recessed mounting section and two mounting holes. According to the Tecnoseal catalogue, it measures 58 mm (2.28 in) in length, 61 mm (2.40 in) in width and 25 mm (0.98 in) in height. The recessed mounting section measures 16 x 40 mm (0.63 x 1.57 in), while the mounting holes measure 7.5 x 11 mm (0.30 x 0.43 in), with a spacing dimension of 18 mm (0.71 in).
Manufactured from zinc, the Tecnoseal 02453 weighs 0.43 kg (0.95 lbs). Its rectangular configuration is designed for compatible Kamewa Jet FF375S, FF550 and A40 series installations.
Technical Specifications
Manufacturer Tecnoseal Product Code 02453 Product Type Rectangular Plate Sacrificial Anode Compatible Brand Kamewa / Rolls-Royce Compatible Models FF375S, FF550, A40 series OEM Reference 10108220 Material Zinc Weight 0.43 kg (0.95 lbs) Length (l) 58 mm (2.28 in) Width (a) 61 mm (2.40 in) Height (h) 25 mm (0.98 in) Mounting Section (b) 16 x 40 mm (0.63 x 1.57 in) Mounting Hole Size (c) 7.5 x 11 mm (0.30 x 0.43 in) Mounting Spacing (i) 18 mm (0.71 in) EAN 8033837066644
Dimensions and Mounting
- Length (l): 58 mm (2.28 in)
- Width (a): 61 mm (2.40 in)
- Height (h): 25 mm (0.98 in)
- Mounting Section (b): 16 x 40 mm (0.63 x 1.57 in)
- Mounting Hole Size (c): 7.5 x 11 mm (0.30 x 0.43 in)
- Mounting Spacing (i): 18 mm (0.71 in)
- Design: Rectangular plate with recessed mounting section and two mounting holes
Compatible Kamewa Jet Models
- Kamewa Jet FF375S
- Kamewa Jet FF550
- Kamewa A40 series
OEM and Product Cross-References
- Kamewa OEM: 10108220
- Tecnoseal Zinc: 02453
Key Features
- Zinc sacrificial plate anode for Kamewa marine propulsion systems.
- Compatible with Kamewa Jet FF375S, FF550 and A40 series.
- Rectangular body measuring 58 x 61 x 25 mm.
- Recessed mounting section measuring 16 x 40 mm.
- Two mounting holes measuring 7.5 x 11 mm.
- Corresponds to Kamewa OEM part number 10108220.
- Provides sacrificial corrosion protection for compatible metallic propulsion components.
Compatibility: Designed for Kamewa Jet FF375S, FF550 and A40 series propulsion systems, corresponding to OEM reference 10108220. Verify the existing anode dimensions, mounting hole configuration and mounting spacing before ordering.
-
