ID
1405847
$ 827.34
1-2 weeks delivery time
-
+
The Tecnoseal 02458 is a zinc sacrificial large collar anode with mounting straps, designed for Kamewa marine propulsion equipment. It features a circular ring-shaped body with an outer diameter (Ø1) of 385 mm (15.16 in), an inner diameter (Ø) of 285 mm (11.22 in), a height (h) of 25 mm (0.98 in) and an internal mounting dimension (i) of 260 mm (10.24 in). The integrated mounting straps feature 12 x 20 mm (0.47 x 0.79 in) openings. Weighing 7.30 kg (16.09 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa propulsion components.
- Description
- Ask a Question
-

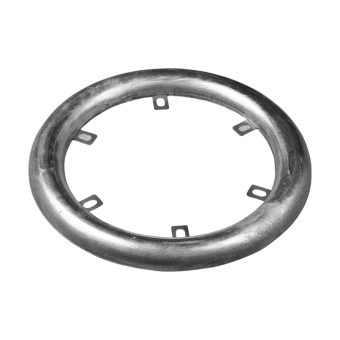

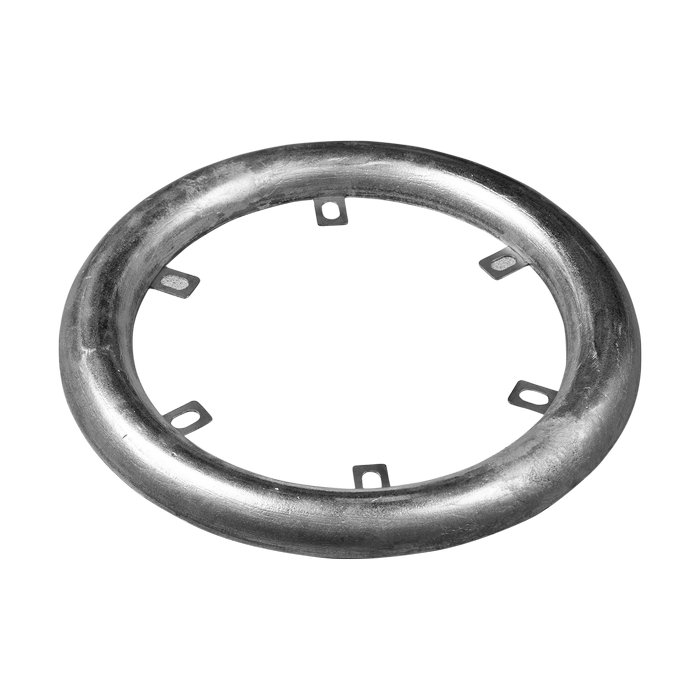

Tecnoseal 02458 Kamewa Zinc Large Collar Anode with Straps Ø385 mm
The Tecnoseal 02458 is a zinc sacrificial large collar anode with integrated mounting straps, designed for Kamewa marine propulsion equipment. Its circular ring-shaped construction provides galvanic corrosion protection for compatible metallic components exposed to marine environments.
According to the Tecnoseal catalogue, the anode features an outer diameter (Ø1) of 385 mm (15.16 in), an inner diameter (Ø) of 285 mm (11.22 in) and a height (h) of 25 mm (0.98 in). The internal mounting dimension (i) measures 260 mm (10.24 in), while the integrated mounting straps have openings measuring 12 x 20 mm (0.47 x 0.79 in).
Manufactured from zinc, the Tecnoseal 02458 weighs 7.30 kg (16.09 lbs). Its circular collar design with multiple internal mounting straps is intended for compatible Kamewa marine propulsion installations.
Technical Specifications
Manufacturer Tecnoseal Product Code 02458 Product Type Large Collar Sacrificial Anode with Straps Compatible Brand Kamewa / Rolls-Royce Material Zinc Weight 7.30 kg (16.09 lbs) Diameter (Ø) 285 mm (11.22 in) Diameter (Ø1) 385 mm (15.16 in) Mounting Opening (c) 12 x 20 mm (0.47 x 0.79 in) Height (h) 25 mm (0.98 in) Internal Mounting Dimension (i) 260 mm (10.24 in) EAN 8033837069126
Dimensions and Mounting
- Diameter (Ø): 285 mm (11.22 in)
- Diameter (Ø1): 385 mm (15.16 in)
- Mounting Opening (c): 12 x 20 mm (0.47 x 0.79 in)
- Height (h): 25 mm (0.98 in)
- Internal Mounting Dimension (i): 260 mm (10.24 in)
- Construction: Circular collar with multiple internal mounting straps
Application
- Kamewa marine propulsion equipment
Product References
- Tecnoseal: 02458
- EAN: 8033837069126
Key Features
- Zinc sacrificial large collar anode for Kamewa marine propulsion equipment.
- 385 mm diameter (Ø1) and 285 mm diameter (Ø).
- 25 mm collar height.
- Multiple integrated mounting straps.
- 12 x 20 mm mounting openings.
- 260 mm internal mounting dimension.
- Provides sacrificial corrosion protection for compatible metallic marine propulsion components.
Compatibility: Intended for Kamewa marine propulsion equipment. Verify all catalogue dimensions, mounting openings and Tecnoseal product code 02458 before ordering.
-
