ID
1405844
$ 264.96
1-2 weeks delivery time
-
+
The Tecnoseal 02457 is a zinc sacrificial bar anode designed for Kamewa marine propulsion equipment. It features an elongated rectangular body with three recessed mounting holes, measuring 400 mm (15.75 in) in length, 77 mm (3.03 in) in width and 30 mm (1.18 in) in height. Additional mounting dimensions include b = 36 mm (1.42 in), c = 17 x 25 mm (0.67 x 0.98 in), i = 140 mm (5.51 in) and Ø = 40 mm (1.57 in). Weighing 4.28 kg (9.44 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa marine components.
- Description
- Ask a Question
-

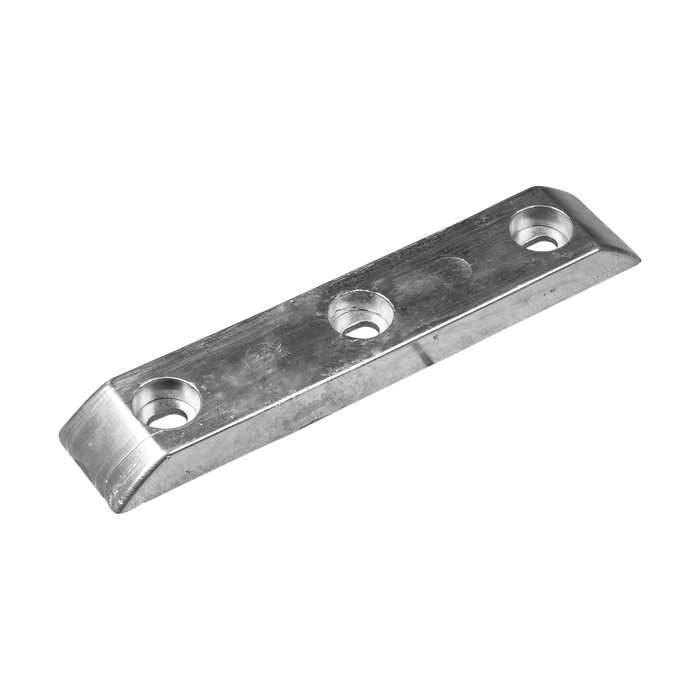

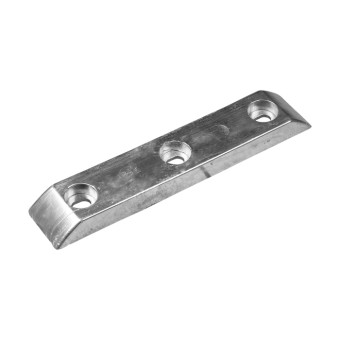

Tecnoseal 02457 Kamewa Zinc Bar Anode with 3 Mounting Holes 400 mm
The Tecnoseal 02457 is a zinc sacrificial bar anode designed for Kamewa marine propulsion equipment. Its elongated rectangular construction features three recessed mounting holes and provides sacrificial corrosion protection for compatible metallic components exposed to marine environments.
According to the Tecnoseal catalogue, the anode measures 400 mm (15.75 in) in length, 77 mm (3.03 in) in width and 30 mm (1.18 in) in height. The mounting configuration includes dimension b of 36 mm (1.42 in), mounting dimension c of 17 x 25 mm (0.67 x 0.98 in), dimension i of 140 mm (5.51 in) and dimension Ø of 40 mm (1.57 in).
Manufactured from zinc, the Tecnoseal 02457 weighs 4.28 kg (9.44 lbs). Its three-hole mounting arrangement is intended for compatible Kamewa marine propulsion applications.
Technical Specifications
Manufacturer Tecnoseal Product Code 02457 Product Type Bar Sacrificial Anode with 3 Mounting Holes Compatible Brand Kamewa / Rolls-Royce Material Zinc Weight 4.28 kg (9.44 lbs) Length (l) 400 mm (15.75 in) Width (a) 77 mm (3.03 in) Dimension (b) 36 mm (1.42 in) Mounting Dimension (c) 17 x 25 mm (0.67 x 0.98 in) Height (h) 30 mm (1.18 in) Mounting Dimension (i) 140 mm (5.51 in) Diameter (Ø) 40 mm (1.57 in) Mounting Holes 3 EAN 8033837068266
Dimensions and Mounting
- Length (l): 400 mm (15.75 in)
- Width (a): 77 mm (3.03 in)
- Dimension (b): 36 mm (1.42 in)
- Mounting Dimension (c): 17 x 25 mm (0.67 x 0.98 in)
- Height (h): 30 mm (1.18 in)
- Mounting Dimension (i): 140 mm (5.51 in)
- Diameter (Ø): 40 mm (1.57 in)
- Construction: Elongated rectangular bar with three recessed mounting holes
Application
- Kamewa marine propulsion equipment
Product References
- Tecnoseal: 02457
- EAN: 8033837068266
Key Features
- Zinc sacrificial bar anode for Kamewa marine propulsion applications.
- 400 mm elongated rectangular body.
- Three recessed mounting holes.
- 77 mm body width and 30 mm height.
- 17 x 25 mm mounting dimension as specified in the catalogue.
- Provides sacrificial corrosion protection for compatible metallic marine components.
Compatibility: Designed for Kamewa marine propulsion equipment. Verify the existing anode dimensions, three-hole mounting arrangement and Tecnoseal product code 02457 before ordering.
-
