The Tecnoseal 02457/1 is a zinc sacrificial bar anode designed for Kamewa marine propulsion equipment. It features an elongated rectangular body with three recessed mounting holes, measuring 600 mm (23.62 in) in length, 100 mm (3.94 in) in width and 40 mm (1.57 in) in height. The mounting configuration includes a dimension b of 36 mm (1.42 in), elongated holes measuring 17 x 25 mm (0.67 x 0.98 in), a mounting hole spacing (i) of 220 mm (8.66 in) and a recess diameter (Ø) of 40 mm (1.57 in). Weighing 14.65 kg (32.30 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa marine propulsion components.
- Description
- Ask a Question
-
Tecnoseal 02457/1 Kamewa Zinc Bar Anode with 3 Mounting Holes 600x100x40 mm

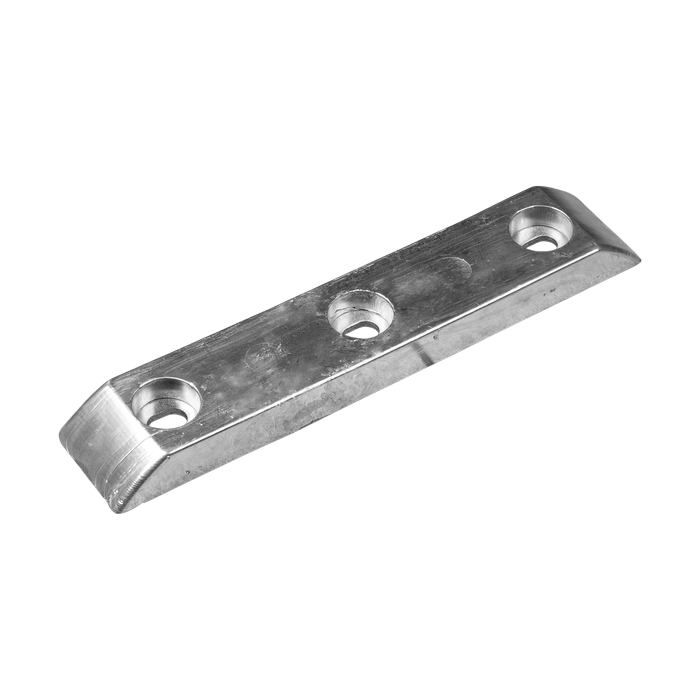

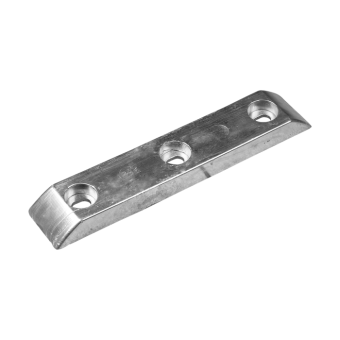

The Tecnoseal 02457/1 is a zinc sacrificial bar anode designed for Kamewa marine propulsion equipment. Its elongated rectangular construction features three recessed mounting holes and provides sacrificial corrosion protection for compatible metallic components exposed to marine environments.
According to the Tecnoseal catalogue, the anode measures 600 mm (23.62 in) in length, 100 mm (3.94 in) in width and 40 mm (1.57 in) in height. The mounting configuration includes dimension b of 36 mm (1.42 in), elongated mounting holes measuring 17 x 25 mm (0.67 x 0.98 in), a mounting hole spacing (i) of 220 mm (8.66 in) and a recess diameter (Ø) of 40 mm (1.57 in).
Manufactured from zinc, the Tecnoseal 02457/1 weighs 14.65 kg (32.30 lbs). Its three-hole mounting arrangement is intended for compatible Kamewa marine propulsion installations.
Technical Specifications
Manufacturer Tecnoseal Product Code 02457/1 Product Type Bar Sacrificial Anode with 3 Mounting Holes Compatible Brand Kamewa Material Zinc Weight 14.65 kg (32.30 lbs) Length (l) 600 mm (23.62 in) Width (a) 100 mm (3.94 in) Dimension (b) 36 mm (1.42 in) Mounting Hole Size (c) 17 x 25 mm (0.67 x 0.98 in) Height (h) 40 mm (1.57 in) Mounting Hole Spacing (i) 220 mm (8.66 in) Recess Diameter (Ø) 40 mm (1.57 in) Number of Mounting Holes 3 EAN 8033837069508
Dimensions and Mounting
- Length (l): 600 mm (23.62 in)
- Width (a): 100 mm (3.94 in)
- Height (h): 40 mm (1.57 in)
- Dimension (b): 36 mm (1.42 in)
- Mounting Hole Size (c): 17 x 25 mm (0.67 x 0.98 in)
- Mounting Hole Spacing (i): 220 mm (8.66 in)
- Recess Diameter (Ø): 40 mm (1.57 in)
- Construction: Elongated rectangular bar with three recessed mounting holes
Application
- Kamewa marine propulsion equipment
Product References
- Tecnoseal: 02457/1
- EAN: 8033837069508
Key Features
- Zinc sacrificial bar anode for Kamewa marine propulsion applications.
- 600 mm long rectangular body.
- Three recessed mounting holes.
- 100 mm body width and 40 mm height.
- 17 x 25 mm elongated mounting holes.
- 220 mm mounting hole spacing.
- Provides sacrificial corrosion protection for compatible metallic marine components.
Compatibility: Designed for Kamewa marine propulsion equipment. Verify the existing anode dimensions, three-hole mounting configuration and Tecnoseal product code 02457/1 before ordering.
-
