The Tecnoseal 02031TP is a brass mounting plug for the Tecnoseal 02031 zinc pencil anode used in compatible Onan marine generator cooling systems and heat exchangers. It features a 3/8-inch BSPT tapered external thread, a 9.5 mm (0.37 in) internal connection dimension and an 18 mm (0.71 in) head dimension. Weighing 0.04 kg (0.09 lbs), the plug uses the Tecnoseal 2TP configuration and provides a separate replacement mounting component for the sacrificial zinc anode. It is supplied individually without the zinc pencil anode.
- Description
- Ask a Question
-

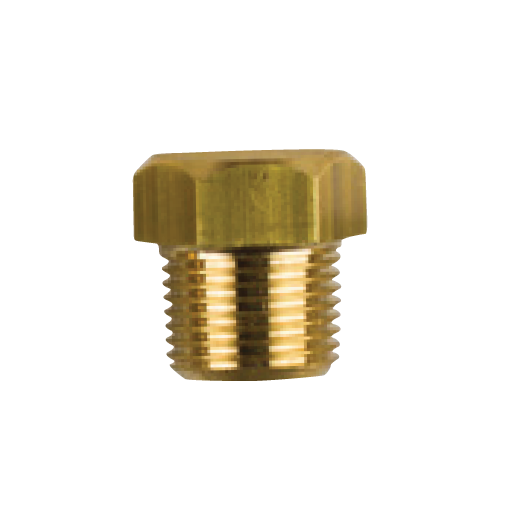

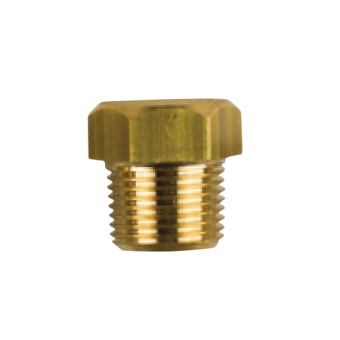

Tecnoseal 02031TP Onan Brass Plug 3/8" BSPT for Pencil Anode 02031
The Tecnoseal 02031TP is a brass mounting plug designed for the Tecnoseal 02031 zinc pencil anode used in compatible Onan marine generator cooling systems and heat exchangers. It provides a threaded connection between the sacrificial zinc anode and the cooling system fitting, allowing the brass plug to be replaced separately from the zinc element.
The plug features a 3/8" BSPT (Gas Conico) tapered external mounting thread and a 9.5 mm (0.37 in) internal connection dimension for the corresponding pencil anode. Its head measures 18 mm (0.71 in), providing a compact mounting arrangement for compatible Onan cooling system installations.
Weighing 0.04 kg (0.09 lbs), the Tecnoseal 02031TP uses the manufacturer's 2TP brass plug configuration. It is manufactured from brass and supplied individually without the zinc pencil anode.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 02031TP
- Compatible Brand: Onan
- Product Type: Brass mounting plug for pencil anode
- Material: Brass
- Compatible Tecnoseal Anode: 02031
- External Mounting Thread: 3/8" BSPT
- Internal Connection Dimension: 9.5 mm
- Head Dimension: 18 mm
- Plug Type: 2TP
- Configuration: Brass Plug Only
- Weight: 0.04 kg
Technical Specifications
Specification Value Product Code 02031TP Material Brass External Thread (a) 3/8" BSPT (Gas Conico) Internal Connection (b) 9.5 mm / 0.37 in Head Dimension (c) 18 mm / 0.71 in Weight 0.04 kg / 0.09 lbs Brass Plug Type 2TP Compatible Anode Tecnoseal 02031 EAN 8059617816476 Supply Brass plug only, without zinc anode
Compatible Pencil Anode
The Tecnoseal 02031TP is intended for use with the Tecnoseal 02031 zinc pencil anode, which has the following dimensions:
- Anode Code: Tecnoseal 02031
- Anode Material: Zinc
- Body Diameter: 13 mm
- Body Length: 26 mm
- Mounting Extension: 5 mm
- Connection Dimension: 9.5 mm
Application and Compatibility
- Onan marine generator cooling systems
- Compatible marine heat exchangers
- Replacement brass mounting plug for Tecnoseal 02031 zinc pencil anode
- Cooling system fittings requiring a 3/8" BSPT external mounting thread
Installation and Replacement
The Tecnoseal 02031TP is intended for installation in a compatible cooling system fitting with a 3/8" BSPT tapered threaded connection. Its internal connection dimension is 9.5 mm, corresponding to the mounting section of the Tecnoseal 02031 zinc pencil anode.
Before ordering, verify the existing mounting thread, internal connection and 18 mm head dimension against the original plug. The brass plug and zinc sacrificial anode are separate replacement components.
Supply: One brass mounting plug without zinc pencil anode.
-
