Tecnoseal Nanni Diesel Zinc Pencil Anode Ø10x17 mm with M16x1.5 Brass Plug

ID 1406004

$ 45.48

1-2 weeks delivery time

- +

Add to cart

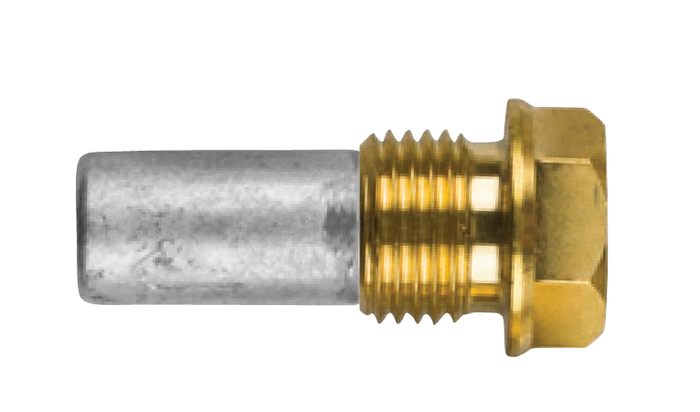

The Tecnoseal 02100T is a zinc sacrificial pencil anode supplied complete with a brass mounting plug for compatible Nanni Diesel marine engine cooling systems and heat exchangers. The cylindrical zinc rod measures 10 mm (0.39 in) in diameter and 17 mm (0.67 in) in length. Its brass plug features an M16x1.5 external mounting thread and a 17 mm (0.67 in) head dimension. Weighing 0.05 kg (0.11 lbs), the complete assembly uses the Tecnoseal 4T pencil configuration and provides corrosion protection for metallic components exposed to engine cooling water.

Description
Ask a Question

Tecnoseal 02100T Nanni Diesel Zinc Pencil Anode Ø10x17 mm with M16x1.5 Brass Plug

The Tecnoseal 02100T is a complete zinc sacrificial pencil anode assembly designed for compatible Nanni Diesel marine engine cooling systems and heat exchangers. It combines a replaceable zinc anode with a brass mounting plug, providing protection against galvanic corrosion for metallic components exposed to cooling water.

The cylindrical zinc rod measures 10 mm (0.39 in) in diameter and 17 mm (0.67 in) in length. The brass mounting plug features an M16x1.5 external threaded connection and a 17 mm (0.67 in) head dimension, allowing installation into a compatible cooling system fitting.

The complete assembly weighs 0.05 kg (0.11 lbs) and uses the Tecnoseal 4T pencil configuration. The zinc rod and brass plug are supplied together, allowing both components to be replaced as a complete unit during routine marine engine maintenance.

Key Features

Manufacturer: Tecnoseal
Product Code: 02100T
Compatible Brand: Nanni Diesel
Product Type: Sacrificial pencil anode with brass plug
Anode Material: Zinc
Plug Material: Brass
Configuration: Complete with Brass Plug
Anode Diameter: 10 mm
Anode Length: 17 mm
External Plug Thread: M16x1.5
Plug Head Dimension: 17 mm
Pencil Type: 4T
Weight: 0.05 kg

Technical Specifications

Specification	Value
Product Code	02100T (Osculati 43.229.04)
Anode Material	Zinc
Plug Material	Brass
Zinc Rod Diameter (Ø)	10 mm / 0.39 in
Zinc Rod Length (l)	17 mm / 0.67 in
External Plug Thread (a)	M16x1.5
Plug Head Dimension (c)	17 mm / 0.67 in
Weight	0.05 kg / 0.11 lbs
Pencil Type	4T
EAN	8033837069300
Supply	Complete with brass plug

Component Configuration

The Tecnoseal 02100T combines the zinc pencil anode and brass mounting plug into one replacement assembly. The corresponding components are also available separately:

Tecnoseal 02100: Zinc pencil anode only, Ø10 x 17 mm
Tecnoseal 02100TP: Brass mounting plug with M16x1.5 external thread
Tecnoseal 02100T: Complete zinc pencil anode with brass plug

Application and Compatibility

The Tecnoseal 02100T is listed for Nanni Diesel marine engine applications requiring a complete zinc pencil anode assembly with an M16x1.5 mounting connection.

Nanni Diesel marine engine cooling systems
Compatible marine engine heat exchangers
Replacement of complete sacrificial zinc pencil anode assemblies
Cooling system fittings with a matching M16x1.5 threaded connection

Installation and Replacement

Before ordering, verify that the existing anode assembly uses a 10 mm diameter, 17 mm long zinc rod and an M16x1.5 brass plug mounting thread. The brass plug head measures 17 mm.

The zinc sacrificial element should be inspected periodically and replaced when sufficiently consumed by corrosion. The Tecnoseal 02100T includes both the zinc rod and the brass mounting plug for replacement as a complete assembly.

Supply: One zinc pencil anode complete with brass mounting plug.
