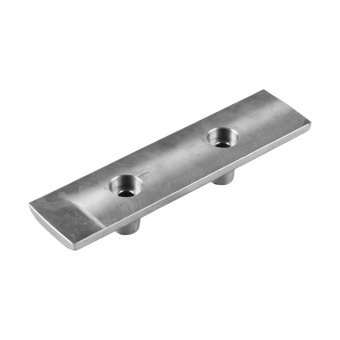

Tecnoseal 6U4-45251-00 Yamaha Hydra Drive DE-DHT-C Sterndrive Zinc Anode Plate

Name: Tecnoseal 6U4-45251-00 Yamaha Hydra Drive DE-DHT-C Sterndrive Zinc Anode Plate
SKU: Tecnoseal 01159
Price: 140.32597462428 USD
Availability: InStock

ID 1405606

$ 140.33

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01159 is a zinc sacrificial anode plate designed for Yamaha Hydra Drive DE-DHT-C sterndrive systems, corresponding to Yamaha OEM part number 6U4-45251-00. The anode features an elongated rectangular plate with two raised mounting sections and fastening holes, helping protect submerged metallic drive components against galvanic corrosion. It measures 187 mm in overall length (l), 46 mm in width (a) and 32 mm in height (h), with a 76 mm mounting-hole spacing dimension (i) and 9 mm mounting-hole diameter (Ø). Manufactured from zinc, the Tecnoseal 01159 weighs 0.69 kg (1.52 lbs) and is intended as a replacement corrosion protection component for the specified Yamaha Hydra Drive application.

Description
Ask a Question

Tecnoseal 6U4-45251-00 Yamaha Hydra Drive DE-DHT-C Sterndrive Zinc Anode Plate

The Tecnoseal 01159 is a zinc sacrificial anode plate designed for the Yamaha Hydra Drive DE-DHT-C sterndrive system. Corresponding to Yamaha OEM part number 6U4-45251-00, this replacement anode helps protect submerged metallic drive components against galvanic corrosion.

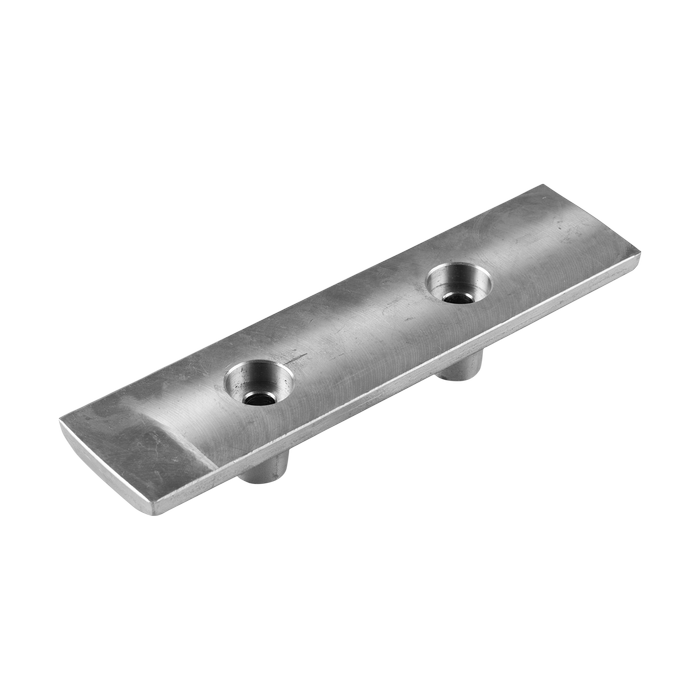

The anode features an elongated rectangular metal plate with two raised mounting sections and fastening holes. Its flat plate profile, tapered side sections and two-point mounting arrangement correspond to the geometry illustrated in the Tecnoseal catalogue. This design is intended for the specified Yamaha Hydra Drive mounting position.

The zinc body functions as a sacrificial corrosion protection component. During service, the anode corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic sterndrive components. Regular inspection and replacement should follow the Yamaha drive manufacturer's maintenance requirements.

According to the Tecnoseal catalogue, the anode measures 187 mm (7.36 in) in overall length (l), 46 mm (1.81 in) in width (a) and 32 mm (1.26 in) in height (h). The mounting-hole spacing dimension (i) is 76 mm (2.99 in), while the fastening-hole diameter (Ø) is 9 mm (0.35 in). The zinc anode weighs 0.69 kg (1.52 lbs).

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01159
Product Type	Sterndrive Anode Plate
Material	Zinc
Compatible Manufacturer	Yamaha
Drive System	Yamaha Hydra Drive
Compatible Model	DE-DHT-C
Yamaha OEM Reference	6U4-45251-00
Weight	0.69 kg (1.52 lbs)
EAN	8033837069409
Construction	Elongated plate with two raised mounting sections
Mounting Configuration	Two fastening holes

Dimensions and Mounting Specifications

Overall Length (l)	187 mm (7.36 in)
Width (a)	46 mm (1.81 in)
Height (h)	32 mm (1.26 in)
Mounting-Hole Spacing (i)	76 mm (2.99 in)
Mounting-Hole Diameter (Ø)	9 mm (0.35 in)

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Drive System: Yamaha Hydra Drive
Compatible Model: DE-DHT-C
Installation Area: Sterndrive assembly
Yamaha OEM Part Number: 6U4-45251-00
Tecnoseal Reference: 01159

Key Features

Designed for Yamaha Hydra Drive DE-DHT-C sterndrive systems.
Corresponds to Yamaha OEM part number 6U4-45251-00.
Zinc sacrificial anode for corrosion protection.
Elongated rectangular plate with two raised mounting sections.
Two fastening holes for the specified mounting arrangement.
Helps protect submerged metallic drive components against galvanic corrosion.
Overall length: 187 mm.
Width: 46 mm.
Height: 32 mm.
Mounting-hole spacing: 76 mm.
Mounting-hole diameter: 9 mm.
Weight: 0.69 kg.

Compatibility Note: Before ordering, verify the Yamaha Hydra Drive model DE-DHT-C, OEM part number 6U4-45251-00 and existing anode dimensions. Compare the elongated plate profile, raised mounting sections and two fastening holes with the original component to confirm compatibility.
