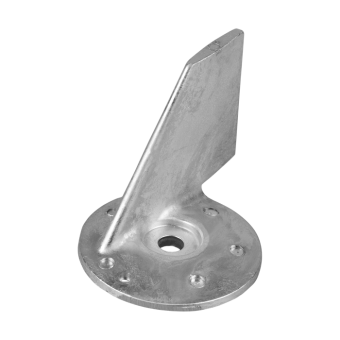

Tecnoseal 5031536 Johnson-Evinrude Trim Tab Anode for 40-70 HP Outboards (1999-2006)

ID 1404288

$ 30.58

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
190 g
50 g

The Tecnoseal Johnson-Evinrude Trim Tab Anode is a sacrificial anode designed for Johnson and Evinrude outboard motors manufactured between 1999 and 2006, corresponding to OEM part number 5031536 and additional Tecnoseal catalogue reference 01207. Available in zinc (00931), aluminium (00931AL) and magnesium (00931MG), all three versions feature a circular body with an integrated trim fin, measuring 70 mm in overall length, 50 mm in height and 61 mm in body diameter. The mounting dimensions include a 9 mm opening and a 20 mm recess. The zinc version weighs 0.19 kg (0.42 lbs), the aluminium version 0.08 kg (0.18 lbs) and the magnesium version 0.05 kg (0.11 lbs).

Description
Ask a Question

Tecnoseal 5031536 Johnson-Evinrude Trim Tab Anode for 40–70 HP Outboards (1999–2006)

The Tecnoseal Johnson-Evinrude Trim Tab Anode is a sacrificial anode designed for corrosion protection of compatible Johnson and Evinrude outboard motors manufactured between 1999 and 2006. It corresponds to original OEM part number 5031536 and is also listed in the Tecnoseal catalogue as "same as 01207". Three material versions are available: zinc, aluminium and magnesium.

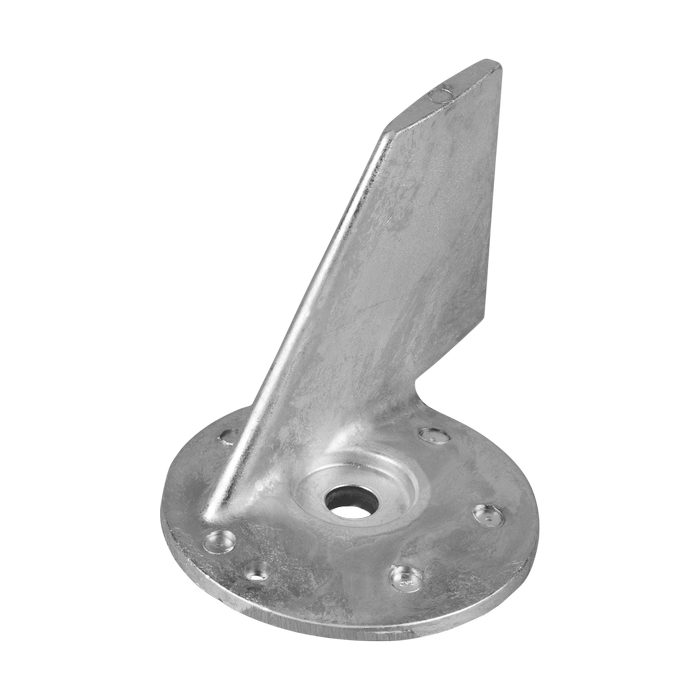

The anode features a circular body with an integrated vertical trim fin and a stepped central mounting opening. All three versions share the same dimensions of 70 mm in overall length, 50 mm in height and 61 mm in body diameter. The mounting opening measures 9 mm in diameter, with a 20 mm recess. The weight varies according to the selected material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
OEM Reference	Johnson-Evinrude 5031536
Additional Tecnoseal Reference	01207
Compatibility	Johnson-Evinrude Outboards
Model Years	1999–2006
Available Materials	Zinc, Aluminium, Magnesium

Available Versions

Tecnoseal Part Number	Material	Weight
00931	Zinc	0.19 kg (0.42 lbs)
00931AL	Aluminium	0.08 kg (0.18 lbs)
00931MG	Magnesium	0.05 kg (0.11 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	70 mm (2.76")
Height (h)	50 mm (1.97")
Body Diameter (Ø)	61 mm (2.40")
Mounting Diameter (Ø1)	9 mm (0.35")
Recess Diameter (Ø2)	20 mm (0.79")

Key Features

Sacrificial trim tab anode for Johnson-Evinrude outboard applications.
Designed for compatible outboards manufactured between 1999 and 2006.
Corresponds to OEM part number 5031536.
Additional Tecnoseal catalogue reference: 01207.
Available in zinc, aluminium and magnesium versions.
Circular body with an integrated trim fin.
Overall length: 70 mm; height: 50 mm.
Body diameter: 61 mm.
Mounting opening: 9 mm; recess diameter: 20 mm.
Weights: 190 g (zinc), 80 g (aluminium) and 50 g (magnesium).
