ID
1406206
$ 24.33
1-2 weeks delivery time
-
+
The Tecnoseal 01600 is a zinc sacrificial plate anode for Chrysler marine applications. It features an elongated body with tapered ends, measuring 123 mm in length, 36 mm in width and 10 mm in height. The anode has two mounting holes spaced 52 mm centre to centre, with 7 mm through-hole diameters and 17 mm recess diameters. Weight is 0.19 kg (0.42 lbs).
- Description
- Ask a Question
-

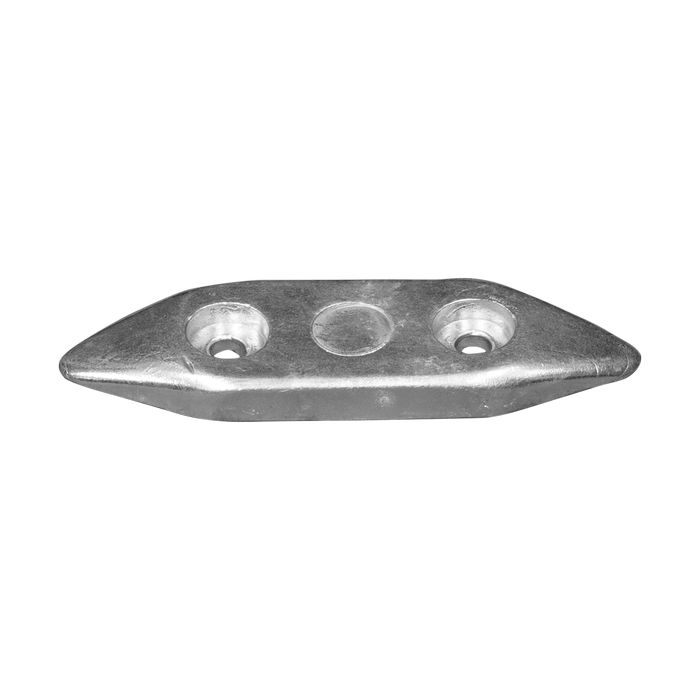

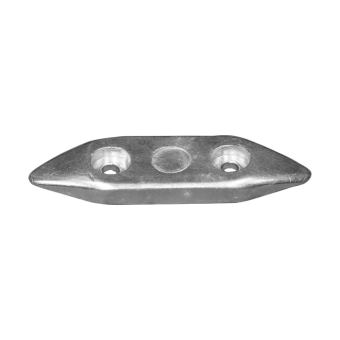

Tecnoseal 01600 Chrysler Zinc Plate Anode 123x36x10 mm
The Tecnoseal 01600 is a zinc sacrificial plate anode for Chrysler marine applications. The anode has an elongated body with tapered ends and two recessed mounting holes.
It measures 123 × 36 × 10 mm, with a mounting hole spacing of 52 mm. The through-holes measure 7 mm in diameter, while the recess diameters are 17 mm. The anode weighs 0.19 kg (0.42 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 01600 (Osculati 43.610.00)
- Product Type: Chrysler sacrificial plate anode
- Material: Zinc
- Application: Chrysler marine equipment
- Shape: Elongated plate with tapered ends
- Dimensions: 123 × 36 × 10 mm
- Mounting Holes: 2
- Hole Spacing: 52 mm
- Through-Hole Diameter: 7 mm
- Recess Diameter: 17 mm
- Weight: 0.19 kg / 190 g
- EAN: 8033837066132
Technical Specifications
Parameter Specification Tecnoseal Code 01600 Material Zinc Length (l) 123 mm / 4.84 in Width (a) 36 mm / 1.42 in Height (h) 10 mm / 0.39 in Hole Spacing (i) 52 mm / 2.05 in Recess Diameter (Ø) 17 mm / 0.67 in Through-Hole Diameter (Ø1) 7 mm / 0.28 in Weight 0.19 kg / 0.42 lbs EAN 8033837066132
Chrysler Marine Application
The Tecnoseal 01600 is designed for Chrysler marine installations using this plate shape and mounting configuration. The zinc material provides sacrificial corrosion protection for compatible metallic components.
Mounting and Replacement
The anode has two recessed mounting holes positioned 52 mm apart, measured between their centres. Each mounting position has a 7 mm through-hole and a 17 mm recess.
Before ordering, check the 123 × 36 × 10 mm body dimensions and mounting hole spacing against the existing anode.
Inspect the anode regularly and replace it when sufficiently consumed.
Supply: One Tecnoseal 01600 zinc sacrificial plate anode.
-
