The MARCO UP14/AC gear transfer pump (part number 1645401C) is a 230V unit rated for 44 L/min (free discharge/without back pressure) with a cut-off pressure of 4 bar. It is self-priming up to 3 m, dry-run safe, and draws 1.7 A. Connections are 3/4 inch (19 mm) with a 3/4 inch BSPP port, and the pump uses a nickel-plated brass housing, stainless steel shaft, bronze gears, FKM seals, and an NBR O-ring; dimensions are 351 x 195 x 225 mm with a shipping weight of 9.90 kg.
- Description
- Ask a Question
-

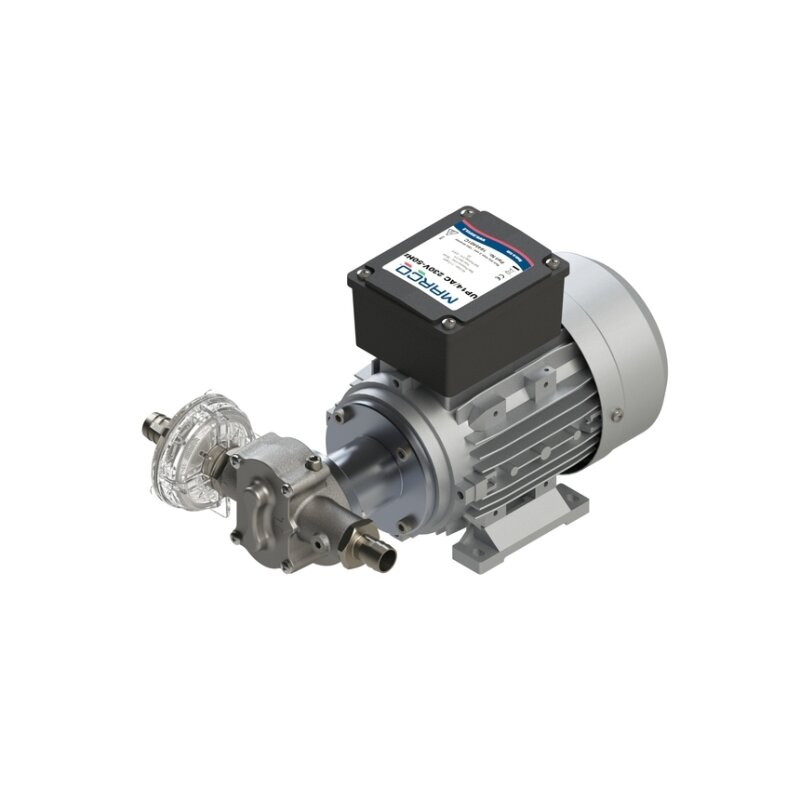

MARCO UP14/AC 230V Gear Transfer Pump
The MARCO 1645401C UP14/AC is an electric gear pump designed for liquid transfer applications, including diesel transfer. It is built for high flow performance and includes self-priming capability for easier installation and operation.
Technical Specifications
Brand MARCO Product Portfolio Diesel transfer pumps Voltage 230V Current Consumption 1.7 A Output 44 L/min Flow Rating Basis Free discharge / without back pressure Cut-Off Pressure 4 bar Self-Priming Up to 3 m Connection 3/4 inch BSPP Connections (Scope of Delivery) 3/4 inch (19 mm) Dimensions (H x W x L) 351 x 195 x 225 mm Housing Material Nickel-plated brass Shaft Material Stainless steel Gears Bronze Seal Material FKM O-Ring Material NBR Shipping Weight 9.90 kg
Features
- High flow rate
- Self-priming up to 3 m
- Dry-run safe
- Electric pump with bronze gears, ideal for transferring diesel
Product Details
If you are unsure about material compatibility with the liquid being pumped, verify compatibility of all wetted materials before operation.
-
