The MARCO UP1-JR flexible impeller pump is a 24V electric self-priming unit rated for 28 L/min (free discharge) with a cut-off pressure of 1.25 bar. It uses 3/8 inch connections (3/8 inch BSPP; also stated as 3/8 inch / 9.5 mm) and draws 4 A. The pump is reversible and is specified with a nickel-plated brass housing, stainless steel spindle, FKM seals, an NBR O-ring, and a flexible nitrile rubber impeller (HNBR). Dimensions are 203 x 82 x 102 mm, and shipping weight is 2.30 kg.
- Description
- Ask a Question
-

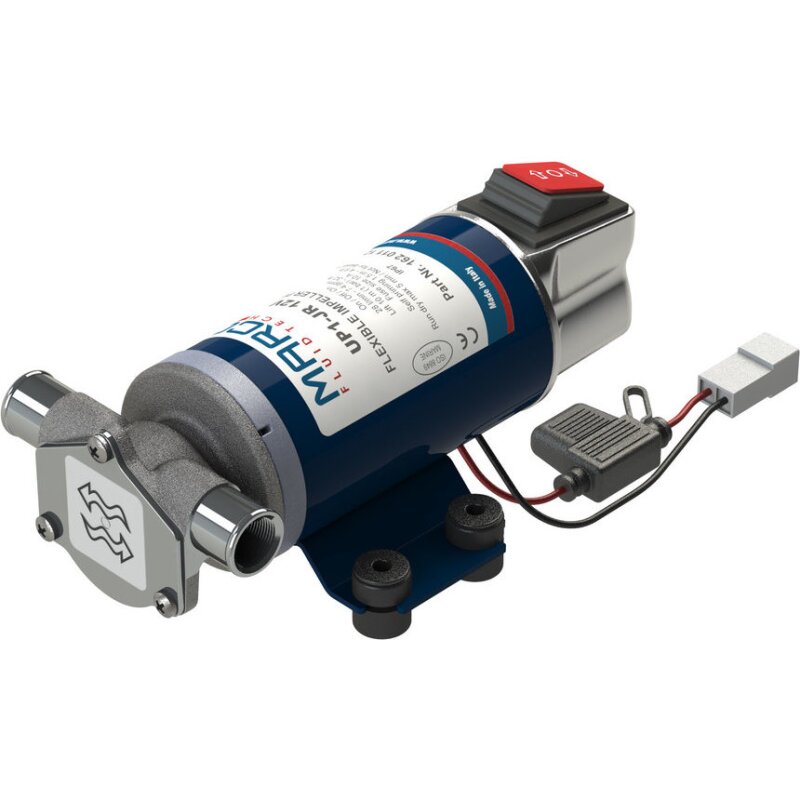

MARCO UP1-JR 24V Flexible Impeller Pump
The MARCO 16201113 is a reversible, self-priming electric impeller pump intended for liquid transfer applications where compact size and flexible impeller technology are required.
Technical Specifications
Type Impeller pump Voltage 24V Flow Rate 28 L/min (free discharge / without back pressure) Cut-Off Pressure 1.25 bar Self-Priming Up to 1.5 m Current Consumption 4 A Connection 3/8 inch BSPP Connections (Stated) 3/8 inch (9.5 mm) Dimensions (H x W x L) 203 x 82 x 102 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM O-Ring Material NBR Impeller Material Flexible nitrile rubber (HNBR) Reversible Yes Switching On/off 3-position reversing switch; available with either integrated on/off switch or 3-position switch Included Items (Stated) Brush holder with EMI filter, watertight cover, cable gland Certificates (Stated) ISO 8849; ISO 8850 Shipping Weight 2.30 kg
Features
- Self-priming up to 1.5 m
- Reversible operation
- Flow rate of 28 L/min at free discharge (without back pressure)
- Nickel-plated brass housing with stainless steel spindle
- Specified sealing materials: FKM seals and NBR O-ring
- Supplied components include brush holder with EMI filter, watertight cover, and cable gland
Product Details
If there is any uncertainty about material compatibility between the pump components and the pumped liquid, verify compatibility before operation.
-
