The MARCO UP1-JR flexible impeller pump (part number 16201112) is a 12V electric self-priming unit rated for 28 L/min at free discharge (no back pressure) with a cut-off pressure of 1.25 bar. It features a 3/8 inch BSPP connection (also referenced as 3/8 inch / 9.5 mm), reversible operation with a 3-position reversing on/off switch, and draws 8A. The pump uses a nickel-plated brass housing, stainless steel shaft, FKM seals, an NBR O-ring, and an HNBR (nitrile rubber) impeller; size is 203 x 82 x 102 mm with a shipping weight of 2.30 kg.
- Description
- Ask a Question
-

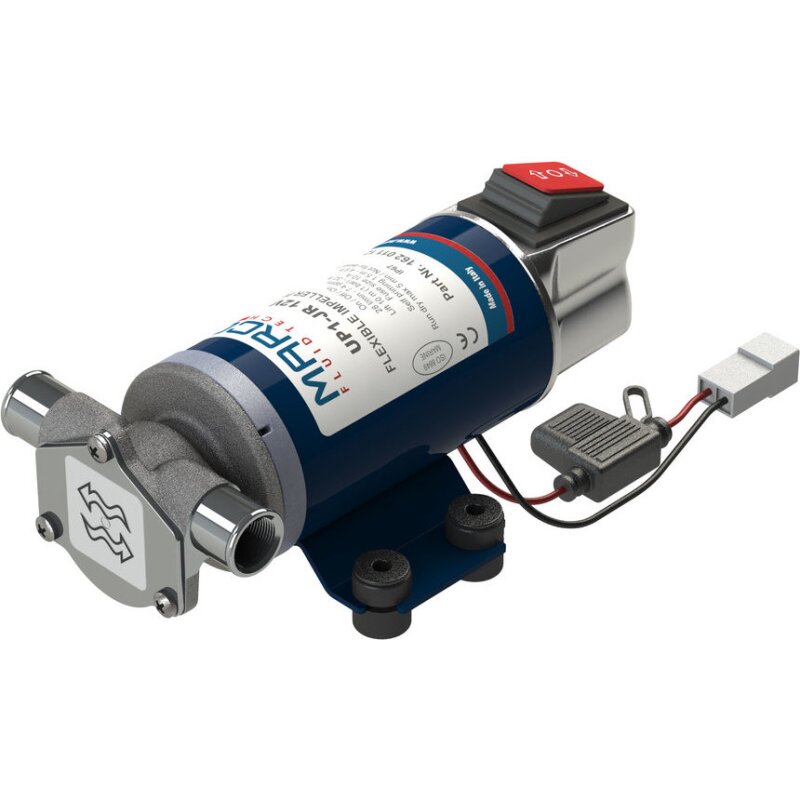

UP1-JR 12V Reversible Impeller Pump
The MARCO 16201112 UP1-JR is a 12V self-priming flexible impeller pump designed for transfer applications where reversible flow is required. It is specified for high flow at free discharge and includes switching and electrical protection components supplied with the unit.
Technical Specifications
Brand MARCO Product Portfolio Impeller Pumps Voltage 12V Current Consumption 8 A Output 28 L/min Flow Rating Condition Free discharge (without back pressure) Cut-Off Pressure 1.25 bar Self-Priming Up to 1.5 m Connection 3/8 inch BSPP Connections (Referenced) 3/8 inch (9.5 mm) Dimensions (H x W x L) 203 x 82 x 102 mm Shipping Weight 2.30 kg Housing Material Nickel-plated brass Shaft Material Stainless steel Seal Material FKM O-Ring Material NBR Impeller Material HNBR (nitrile rubber) Rotation / Flow Reversible Known Certifications ISO 8849
Features
- Reversible operation with on/off 3-position reversing switch
- Self-priming up to 1.5 m
- Flexible nitrile rubber paddle wheel (HNBR impeller)
- Supplied with brush holder with EMI filter, watertight cover, and cable entry
Product Details
The pump materials in contact with the pumped liquid include a nickel-plated brass housing, stainless steel shaft, FKM seals, and an NBR O-ring. Verify material compatibility with the pumped medium before commissioning.
-
